HMMWV Cargo Shell Assemblies TM 9-2320-280-24P · Fig. 271

Every part in figure 271 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 42 lines, 27 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

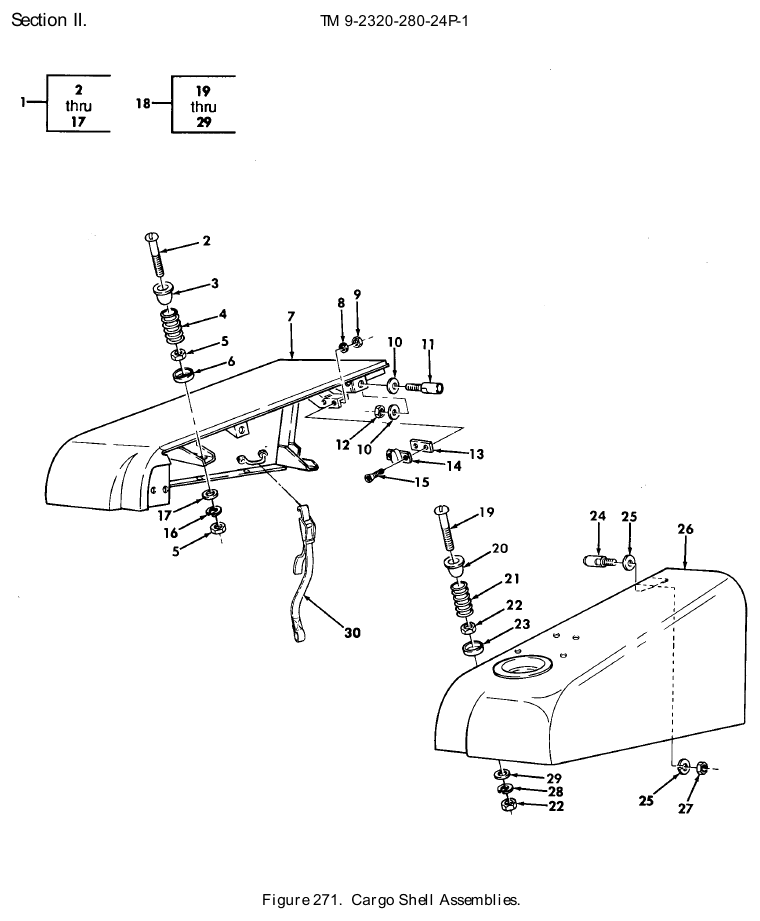

TM 9-2320-280-24P figure 271, Cargo Shell Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cargo Vehicular Shell NSN 2510-01-345-4365 · P/N 12339644-5 SHELL,CARGO,VEHICUL BASIC ARMOR, L.H Fits: M966, M966A1, M1121	1	We can source it quote only $5,999.99 per assemblygov't list price
1	Cargo Vehicular Shell NSN 2510-01-332-0128 · P/N 12339644-7 SHELL,CARGO,VEHICUL BASIC ARMOR, L.H Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	1	39 in stock quote only
1	Cargo Vehicular Shell NSN 2510-01-332-0129 · P/N 12339655-10 SHELL,CARGO,VEHICUL SUPPLEMENTAL ARMOR,L.H Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	3 in stock quote only $2,869.92 per eachgov't list price
1	Cargo Vehicular Shell NSN 2510-01-348-6670 · P/N 12339655-7 SHELL,CARGO,VEHICUL SUPPLEMENTAL ARMOR,L.H Fits: M1045, M1045A1, M1045A2, M1046, M1046A1	1	We can source it quote only $8,823.72 per assemblygov't list price
2	Machine Screw NSN 5305-01-197-1594 · P/N 12339548 SCREW,MACHINE 1/2-20 X 3.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	122 in stock $21.50our price Buy online ↗
3	Helical Compression Spr Retainer NSN 2540-01-209-6049 · P/N 12339546 RETAINER,HELICAL CO Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	40 in stock $25–$40 eachtypical
4	Helical Compression Spring NSN 5360-01-194-6070 · P/N 12339547 SPRING,HELICAL,COMP Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	60 in stock
5	Nut NSN 5310-01-135-4730 · P/N 9442899 NUT 1/2-20 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
6	Helical Compression Spr Retainer NSN 5340-01-214-4992 · P/N 12339545 RETAINER,HELICAL CO Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	271 in stock
7	Cargo Shell L.h P/N 12339634-3 CARGO SHELL L.H Fits: M966, M966A1, M1121	1	Ask us
7	Cargo Shell L.h P/N 12339634-4 CARGO SHELL L.H Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	1	Ask us
7	Cargo Shell L.h P/N 12339639-4 CARGO SHELL L.H Fits: M1045, M1045A1, M1045A2, M1046, M1046A1	1	Ask us
7	Cargo Shell L.h P/N 12339639-3 CARGO SHELL L.H Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	Ask us
8	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	351 in stock
9	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	626 in stock
10	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	170 in stock
11	Shoulder Headless Pin NSN 5315-01-289-6212 · P/N 12339544 PIN,SHOULDER,HEADLE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	452 in stock $25–$55 eachtypical
12	Self-Locking Hexagon Nut NSN 5310-01-150-4003 · P/N 9422299 NUT,SELF-LOCKING,HE 7/16-14 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	251 in stock
13	Plate Spacer NSN 5365-01-129-0399 · P/N 7529300 SPACER,PLATE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	102 in stock
14	Door Dovetail Wedge NSN 2540-00-040-2129 · P/N 8329899 WEDGE,DOOR DOVETAIL Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	167 in stock $35–$65 eachtypical
15	Machine Screw NSN 5305-00-958-5246 · P/N MS35190-289 SCREW,MACHINE 1/4-20 X 3/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	146 in stock
16	Lock Washer NSN 5310-00-584-5272 · P/N MS35338-48 WASHER,LOCK 1/2 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	833 in stock
17	Flat Washer NSN 5310-01-121-1703 · P/N 2436165 WASHER,FLAT 1/2 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	2,218 in stock
18	Cargo Vehicular Shell NSN 2510-01-344-4169 · P/N 12339644-6 SHELL,CARGO,VEHICUL BASIC ARMOR, R.H Fits: M966, M966A1, M1121	1	2 in stock quote only $2,974.96 per assemblygov't list price
18	Cargo Vehicul Shell NSN 2510-01-354-0417 · P/N 12339644-8 SHELL,CARGO,VEHICUL BASIC ARMOR, R.H Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	1	44 in stock quote only
18	Cargo Vehicul Shell NSN 2510-01-366-6968 · P/N 12339655-6 SHELL,CARGO,VEHICUL SUPPLEMENTAL ARMOR,R.H Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	We can source it quote only $10,290.41 per eachgov't list price
18	Cargo Vehicul Shell NSN 2510-01-366-6969 · P/N 12339655-8 SHELL,CARGO,VEHICUL SUPPLEMENTAL ARMOR,R.H Fits: M1045, M1045A1, M1045A2, M1046, M1046A1	1	We can source it quote only $3,428.75 per eachgov't list price
19	Machine Screw NSN 5305-01-197-1594 · P/N 12339548 SCREW,MACHINE 1/2-20 X 3.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	122 in stock $21.50our price Buy online ↗
20	Helical Compression Spr Retainer NSN 2540-01-209-6049 · P/N 12339546 RETAINER,HELICAL CO Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	40 in stock $25–$40 eachtypical
21	Helical Compression Spring NSN 5360-01-194-6070 · P/N 12339547 SPRING,HELICAL,COMP Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	60 in stock
22	Nut NSN 5310-01-135-4730 · P/N 9442899 NUT 1/2-20 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
23	Helical Compression Spr Retainer NSN 5340-01-214-4992 · P/N 12339545 RETAINER,HELICAL CO Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	271 in stock
24	Shoulder Headless Pin NSN 5315-01-289-6212 · P/N 12339544 PIN,SHOULDER,HEADLE FRONT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	452 in stock $25–$55 eachtypical
25	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	170 in stock
26	Cargo Shell R.h P/N 12339635-3 CARGO SHELL R.H Fits: M966, M966A1, M1121	1	Ask us
26	Cargo Shell R.h P/N 12339635-4 CARGO SHELL R.H Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	1	Ask us
26	Cargo Shell R.h P/N 12339640-3 CARGO SHELL R.H Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	Ask us
26	Cargo Shell R.h P/N 12339639-3 CARGO SHELL R.H Fits: M1045, M1045A1, M1045A2, M1046, M1046A1	1	Ask us
27	Self-Locking Hexagon Nut NSN 5310-01-150-4003 · P/N 9422299 NUT,SELF-LOCKING,HE 7/16-14 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	251 in stock
28	Lock Washer NSN 5310-00-584-5272 · P/N ERNA245 WASHER,LOCK 1/2 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	833 in stock
29	Flat Washer NSN 5310-01-121-1703 · P/N 2436165 WASHER,FLAT 1/2 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	2,218 in stock
30	Webbing Strap NSN 5340-01-198-2253 · P/N 45053-11 STRAP,WEBBING Fits: M1025A2, M1043A2, M1045A2	2	We can source it $25–$40 eachtypical
