HMMWV Weapon Station Hatch Assembly, Latch, Gunner’s Sling, and Related Components TM 9-2320-280-24P · Fig. 272

Every part in figure 272 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 45 lines, 26 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

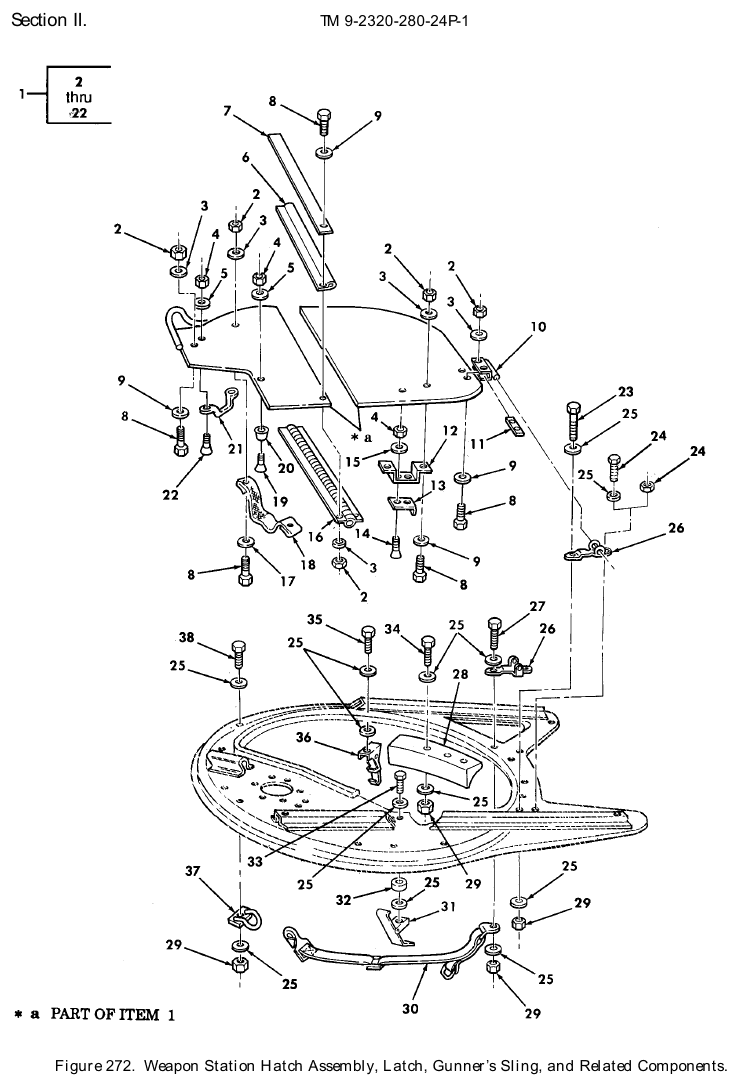

TM 9-2320-280-24P figure 272, Weapon Station Hatch Assembly, Latch, Gunner’s Sling, and Related Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Weap Hatch Assembly NSN 2510-01-249-1585 · P/N 12340340 HATCH ASSEMBLY,WEAP Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	8 in stock quote only $1,257.78 per assemblygov't list price
1	Hatch Vehicle Door NSN 2510-01-249-1586 · P/N 12340347 DOOR,HATCH,VEHICLE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it quote only $1,227.47 per eachgov't list price
2	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	27	626 in stock
3	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	27	2,325 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-208-1918 · P/N SN-104-NM-22 NUT,SELF-LOCKING,HE #10-24 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	12	118 in stock
5	Flat Washer NSN 5310-01-253-8951 · P/N 5593294 WASHER,FLAT #10 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	We can source it
6	Nonmetallic Special Shaped Seal NSN 5330-01-258-4664 · P/N 5595531 SEAL,NONMETALLIC SP Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	12 in stock $49.35our price Buy online ↗
7	Metal Molding NSN 2590-01-258-9491 · P/N 12340123 MOLDING,METAL Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	16 in stock $25–$60 eachtypical
8	Machine Screw NSN 5305-00-390-0524 · P/N MS51849-98 SCREW,MACHINE 1/4-20 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	27	We can source it
9	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	25	351 in stock
10	Door Vehicular Hinge NSN 2510-01-253-2839 · P/N 12340126 HINGE,DOOR VEHICULA Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	900 in stock $25–$40 eachtypical
11	Ring Spacer NSN 5365-01-253-8975 · P/N 12340098 SPACER,RING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
12	Multiple Angle Bracket NSN 5340-01-253-8377 · P/N 12340124 BRACKET,MULTIPLE AN Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it
13	Catch Strike NSN 5340-01-211-6288 · P/N 12340096 STRIKE,CATCH Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
14	Machine Screw NSN 5305-01-198-1621 · P/N 156971 SCREW,MACHINE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
15	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	909 in stock
16	Door Vehicular Hinge NSN 2510-01-254-1056 · P/N 12340091 HINGE,DOOR VEHICULA Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1 in stock $121.37 per eachgov't list price
17	Flat Washer NSN 5310-01-252-0513 · P/N 5592916 WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	1,375 in stock
18	Webbing Strap NSN 5340-01-256-4656 · P/N 45057-10 STRAP,WEBBING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $25–$45 eachtypical
19	Machine Screw NSN 5305-00-984-6214 · P/N MS35206-267 SCREW,MACHINE #10-24 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	284 in stock
20	Bumper NSN 5340-01-203-8675 · P/N ZB-1079M.I. BUMPER,NONMETALLIC Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	22 in stock
21	Bow Handle NSN 5340-01-199-3499 · P/N 5582439 HANDLE,BOW Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	3	We can source it
22	Machine Screw NSN 5305-01-254-2452 · P/N 5593286 SCREW,MACHINE #10-24 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	6	We can source it
23	Cap Hexagon Head Screw NSN 5305-00-781-3926 · P/N B1821BH038C275N SCREW,CAP,HEXAGON H 3/8-16 X 2.75 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it
24	Cap Hexagon Head Screw NSN 5305-01-140-9118 · P/N B1821BH038C088N SCREW,CAP,HEXAGON H 3/8-16 X 7/8 Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	2	We can source it
24	Self-Locking Hexagon Nut NSN 5310-00-814-0672 · P/N MS51943-36 NUT,SELF-LOCKING,HE 3/8-24 Fits: M1025A2, M1043A2, M1045A2	2	442 in stock
25	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	20	1,146 in stock $7.83our price Buy online ↗
26	Eye Rotating Shaft Bracket NSN 3040-01-197-8727 · P/N 12446767 BRACKET,EYE,ROTATIN Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
27	Cap Hexagon Head Screw NSN 5306-00-821-3869 · P/N B1821BH038C175N SCREW,CAP,HEXAGON H Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	1	201 in stock $14.70our price Buy online ↗
27	Cap Hexagon Head Screw NSN 5305-00-846-5703 · P/N B1821BH038C300N SCREW,CAP,HEXAGON H 3/8-16 X 3.00 Fits: M1025A2, M1043A2, M1045A2	1	185 in stock
28	Cushioning Pad NSN 2590-01-204-7836 · P/N 12340313 PAD,CUSHIONING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	285 in stock $64.00our price Buy online ↗
29	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	7	219 in stock
30	Webbing Strap NSN 5340-01-199-4989 · P/N 44888 STRAP,WEBBING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	150 in stock
31	Rim Latch NSN 5340-01-434-2864 · P/N 12340648 LATCH,RIM Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	3	We can source it $30–$60 eachtypical
31	Rim Latch NSN 5340-01-434-2864 · P/N 12340648 LATCH,RIM RIGHT Fits: M1025A2, M1043A2, M1045A2	1	We can source it $30–$60 eachtypical
32	Plate Spacer NSN 5365-01-212-0144 · P/N 5591575 SPACER,PLATE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $25–$45 eachtypical
33	Cap Hexagon Head Screw NSN 5305-00-068-0511 · P/N B1821BH038C125N SCREW,CAP,HEXAGON H 3/8-16 X 1.250 Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	3	1,907 in stock
33	Cap Hexagon Head Screw NSN 5305-00-068-0511 · P/N B1821BH038C125N SCREW,CAP,HEXAGON H 3/8-16 X 1.250 Fits: M1025A2, M1043A2, M1045A2	1	1,907 in stock
34	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H 3/8-16 X 1.50 Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	4	1,373 in stock
34	Cap Hexagon Head Screw NSN 5305-00-543-2866 · P/N B1821BH038C250N SCREW,CAP,HEXAGON H 3/8-16 X 2.50 Fits: M1025A2, M1043A2, M1045A2	4	33 in stock
35	Cap Hexagon Head Screw NSN 5305-00-781-3926 · P/N B1821BH038C275N SCREW,CAP,HEXAGON H 3/8-16 X 2.75 Fits: M1025A2, M1043A2, M1045A2	2	We can source it
36	Catch NSN 5340-01-204-2543 · P/N 45307-10 CATCH,CLAMPING LEFT Fits: M1025A2, M1043A2, M1045A2	2	We can source it
37	Gunner Sling Hook NSN 2590-01-197-4899 · P/N 12340293 HOOK,GUNNER SLING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1 in stock $25–$40 eachtypical
38	Cap Hexagon Head Screw NSN 5305-00-782-9489 · P/N B1821BH038C200N SCREW,CAP,HEXAGON H 3/8-16 X 2.00 Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	1	365 in stock
38	Cap Hexagon Head Screw NSN 5305-00-781-3926 · P/N B1821BH038C275N SCREW,CAP,HEXAGON H 3/8-16 X 2.75 Fits: M1025A2, M1043A2, M1045A2	1	We can source it

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
