HMMWV Weapon Station Tray Assembly, Reinforcement Tube, and Related Components TM 9-2320-280-24P · Fig. 273

Every part in figure 273 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 31 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

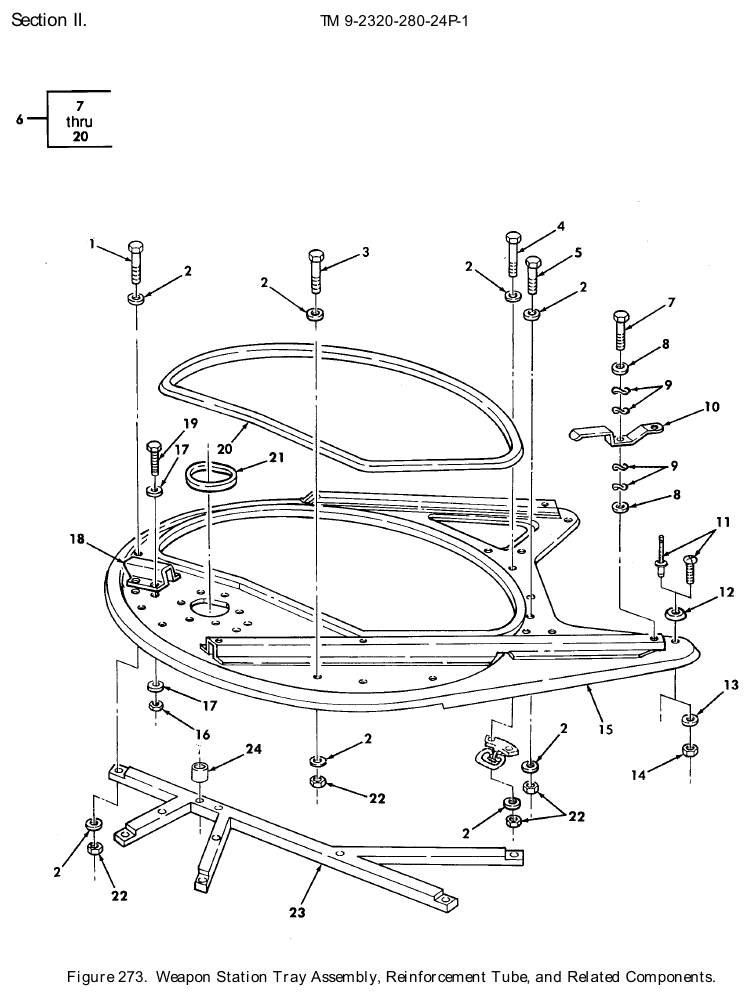

TM 9-2320-280-24P figure 273, Weapon Station Tray Assembly, Reinforcement Tube, and Related Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-781-3926 · P/N B1821BH038C275N SCREW,CAP,HEXAGON H 3/8-16 X 2.75 Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	1	We can source it
1	Cap Hexagon Head Screw NSN 5305-00-990-8632 · P/N B1821BH038C375N SCREW,CAP,HEXAGON H 3/8-16 X 3.75 Fits: M1025A2, M1043A2, M1045A2	1	2 in stock
2	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	10	1,146 in stock $7.83our price Buy online ↗
2	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: M1025A2, M1043A2, M1045A2	8	1,146 in stock $7.83our price Buy online ↗
3	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H 3/8-16 X 1.50 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1,373 in stock
4	Cap Hexagon Head Screw NSN 5305-00-782-9489 · P/N B1821BH038C200N SCREW,CAP,HEXAGON H 3/8-16 X 2.00 Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	2	365 in stock
4	Cap Hexagon Head Screw NSN 5305-00-781-3926 · P/N B1821BH038C275N SCREW,CAP,HEXAGON H 3/8-16 X 2.75 Fits: M1025A2, M1043A2, M1045A2	2	We can source it
5	Cap Hexagon Head Screw NSN 5305-00-543-2866 · P/N B1821BH038C250N SCREW,CAP,HEXAGON H 3/8-16 X 2.50 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	33 in stock
6	Weapon Tray NSN 2590-01-189-9734 · P/N 12340346 TRAY,WEAPON,VEHICUL Fits: M1025A2, M1043A2, M1045A2	1	We can source it quote only
6	Weapon Vehicul Tray NSN 2590-01-466-7250 · P/N 12446725 TRAY,WEAPON,VEHICUL Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	1	17 in stock quote only $1,811.89 per eachgov't list price
7	Machine Bolt NSN 5306-00-226-4826 · P/N B1821BH031C088N BOLT,MACHINE 5/16-18 X 7/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	188 in stock
8	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	1,368 in stock
9	Spring Tension Washer NSN 5310-01-203-3230 · P/N B0625-022-S WASHER,SPRING TENSI 5/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	We can source it
10	Manual Control Lever NSN 3040-01-198-7473 · P/N 12340111 LEVER,MANUAL CONTRO Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	17 in stock $25–$40 eachtypical
11	Machine Screw NSN 5305-00-984-6194 · P/N MS35206-246 SCREW,MACHINE #8-32 X 5/8 Fits: M1025A2, M1043A2, M1045A2	2	418 in stock
11	Tubular Rivet NSN 5320-01-461-7924 · P/N 135927 RIVET,TUBULAR 3/16 X 1/2 Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	2	We can source it
12	Bumper NSN 5340-00-565-5378 · P/N 698W BUMPER,NONMETALLIC Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	234 in stock
13	Flat Washer NSN 5310-01-253-1618 · P/N MS51412-18 WASHER,FLAT #8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
14	Self-Locking Extended Washer Nut NSN 5310-00-807-1466 · P/N MS21042-08 NUT,SELF-LOCKING,EX #8-32 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
15	Tray Assembly P/N 12446727 TRAY ASSEMBLY,WEAPO Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	1	Ask us
15	Tray Assembly P/N 12340336 TRAY ASSEMBLY,WEAPO Fits: M1025A2, M1043A2, M1045A2	1	Ask us
16	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	904 in stock
17	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	1,368 in stock
18	Bow Handle NSN 5340-01-457-1778 · P/N 12446730 HANDLE,BOW Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $35–$70 eachtypical
19	Machine Bolt NSN 5306-00-226-4824 · P/N B1821BH031C063N BOLT,MACHINE 5/16-18 X .625 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	4 in stock
20	Nonmetallic Special Shaped Seal NSN 5330-01-202-8360 · P/N 1301 SEAL,NONMETALLIC SP Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	29 in stock $25–$55 eachtypical
21	Automotive Trim Bezel NSN 2590-01-205-8607 · P/N 123401103-2 TRIM,EDGE 15.39-15.65 INCHES LONG Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	6 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	5	219 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M1025A2, M1043A2, M1045A2	4	219 in stock
23	Weapon Station Tube Assembly NSN 4710-01-189-9727 · P/N 12340337 TUBE ASSEMBLY,WEAPO Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it quote only $332.48 per assemblygov't list price
24	Special Shaped Spacer NSN 5365-01-457-8947 · P/N 12460208 SPACER,SPECIAL SHAP Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	5	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
