HMMWV Weapon Station Tray Mounting, TOW Carrier TM 9-2320-280-24P · Fig. 274

Every part in figure 274 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 36 lines, 25 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

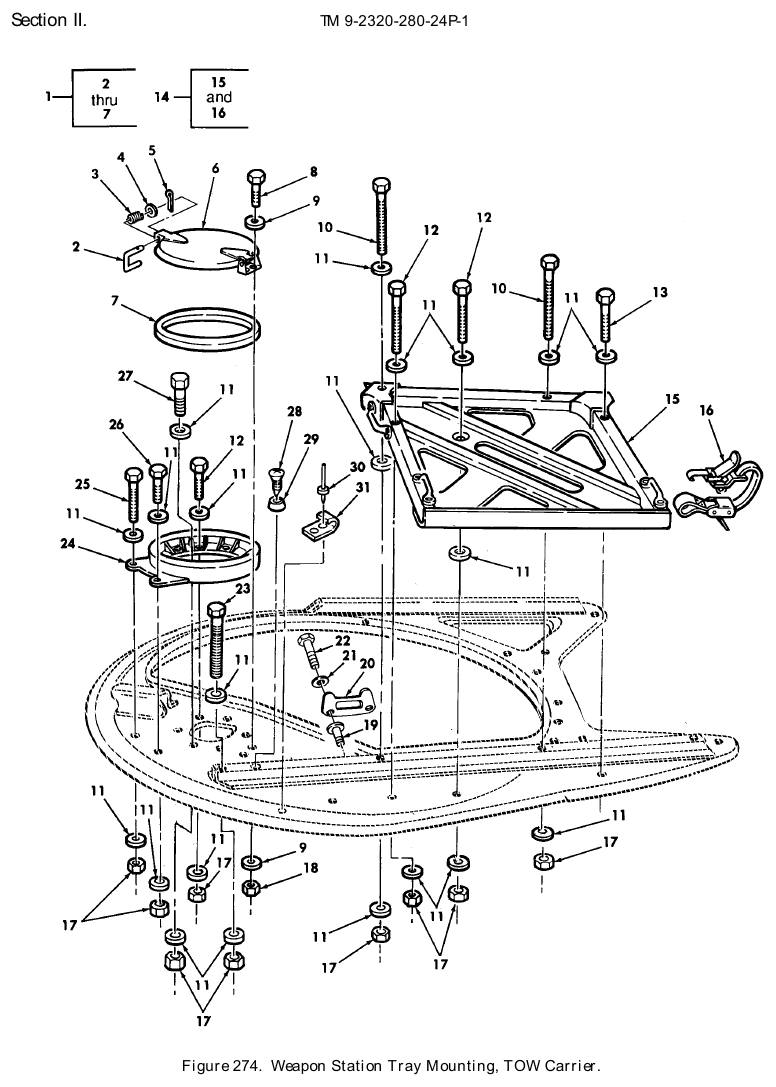

TM 9-2320-280-24P figure 274, Weapon Station Tray Mounting, TOW Carrier: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Hatch Vehicle Door NSN 2510-01-189-9828 · P/N 12340311 DOOR,HATCH,VEHICLE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	2 in stock $151.67 per eachgov't list price
2	Hood Vehicular Rod NSN 2510-01-257-3747 · P/N 12340104 ROD,HOOD,VEHICULAR Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $30–$65 eachtypical
3	Helical Compression Spring NSN 5360-01-118-5907 · P/N C0360-045-1250S SPRING,HELICAL,COMP Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
4	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	351 in stock
5	Cotter Pin NSN 5315-00-839-2326 · P/N MS24665-281 PIN,COTTER 3/32 X 1/2 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	305 in stock
6	Hatch Vehicle Door NSN 2510-01-310-2324 · P/N 5582436 DOOR,HATCH,VEHICU Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $161.34 per eachgov't list price
7	Solid Plain Disk NSN 5330-01-270-1353 · P/N 5596580 DISK,SOLID,PLAIN Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
8	Cap Hexagon Head Screw NSN 5305-00-068-7837 · P/N B1821BH025C063N SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	98 in stock
9	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	351 in stock
10	Cap Hexagon Head Screw NSN 5305-00-857-6886 · P/N B1821BH038C450N SCREW,CAP,HEXAGON H 3/8-16 X 4.50 Fits: M966, M966A1, M1045, M1045A1, M1046, M1046A1 and 1 more	2	5 in stock
10	Cap Hexagon Head Screw NSN 5305-01-458-1670 · P/N B1821BH038C550N SCREW,CAP,HEXAGON H 3/8-16 X 5.50 Fits: M1045A2	2	1 in stock $25.99our price Buy online ↗
11	Flat Washer NSN 5310-01-205-7923 · P/N 5593213 WASHER,FLAT 3/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	30	We can source it
12	Cap Hexagon Head Screw NSN 5305-00-846-5703 · P/N B1821BH038C300N SCREW,CAP,HEXAGON H 3/8-16 X 3.00 Fits: M966, M966A1, M1045, M1045A1, M1046, M1046A1 and 1 more	6	185 in stock
12	Cap Hexagon Head Screw NSN 5305-00-781-3928 · P/N B1821BH038C400N SCREW,CAP,HEXAGON H 3/8-16 X 4.00 Fits: M1045A2	6	5,326 in stock
13	Cap Hexagon Head Screw NSN 5305-00-782-9489 · P/N B1821BH038C200N SCREW,CAP,HEXAGON H 3/8-16 X 2.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	365 in stock
14	Mounting Tow Pan NSN 2590-01-189-9747 · P/N 12339690 PAN,MOUNTING,TOW Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	6 in stock $998.80 per eachgov't list price
15	Pan Assembly P/N 12339689 PAN ASSEMBLY Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	Ask us
16	Webbing Strap NSN 5340-01-198-2253 · P/N 45053-11 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it $25–$40 eachtypical
17	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	14	219 in stock
18	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	626 in stock
19	Plain Blind Rivet Nut NSN 5310-01-388-7420 · P/N S4P90 NUT,PLAIN,BLIND RIV #4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	64 in stock
20	Aircraft Inclinometer NSN 6610-01-050-2072 · P/N 12265594 PANEL,INDICATOR Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it quote only $256.53 per eachgov't list price
21	Flat Washer NSN 5310-00-950-1310 · P/N MS27183-4 WASHER,FLAT #4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	2,332 in stock
22	Machine Screw NSN 5305-01-255-4950 · P/N MS-00034206-221 SCREW,MACHINE #4-40 X 1.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
23	Cap Hexagon Head Screw NSN 5305-00-781-3928 · P/N B1821BH038C400N SCREW,CAP,HEXAGON H 3/8-16 X 4.00 Fits: M966, M966A1, M1045, M1045A1, M1046, M1046A1 and 1 more	1	5,326 in stock
23	Cap Hexagon Head Screw NSN 5305-01-458-1670 · P/N B1821BH038C550N SCREW,CAP,HEXAGON H 3/8-16 X 5.50 Fits: M1045A2	1	1 in stock $25.99our price Buy online ↗
24	Tow Mount Pedestal Assembly NSN 2590-01-189-9736 · P/N 12339679-1 PEDESTAL ASSEMBLY,T Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	153 in stock $142.09our price Buy online ↗
25	Cap Hexagon Head Screw NSN 5305-00-781-3926 · P/N B1821BH038C275N SCREW,CAP,HEXAGON H 3/8-24 X 2.75 Fits: M966, M966A1, M1045, M1045A1, M1046, M1046A1 and 1 more	1	We can source it
25	Cap Hexagon Head Screw NSN 5305-00-990-8632 · P/N B1821BH038C375N SCREW,CAP,HEXAGON H 3/8-16 X 3.75 Fits: M1045A2	1	2 in stock
26	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H 3/8-16 X 1.50 Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	1	1,373 in stock
26	Cap Hexagon Head Screw NSN 5305-00-543-2866 · P/N B1821BH038C250N SCREW,CAP,HEXAGON H 3/8-16 X 2.50 Fits: M1045A2	1	33 in stock
27	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	26 in stock
28	Tapping Screw NSN 5305-00-058-1082 · P/N MS51861-34 SCREW,TAPPING #8-18 X 3/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	48 in stock
29	Bumper NSN 5340-01-203-8674 · P/N 12340097 BUMPER,NONMETALLIC Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
30	Blind Rivet NSN 5320-01-221-4231 · P/N SSP-43 RIVET,BLIND 1/8 DIA Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	450 in stock
31	Angle Bracket NSN 5340-01-211-5083 · P/N 5584765 BRACKET,ANGLE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	18 in stock
