HMMWV Armament Pintle and Panel Assemblies, and Related Parts TM 9-2320-280-24P · Fig. 275

Every part in figure 275 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 25 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

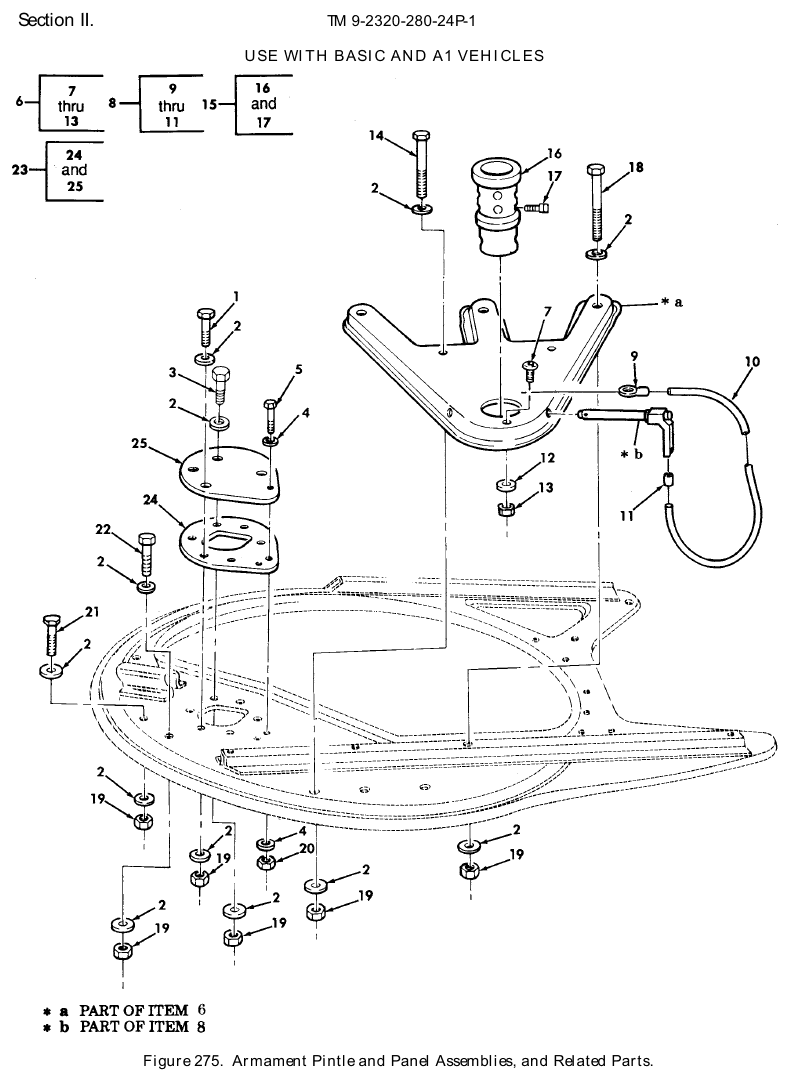

TM 9-2320-280-24P figure 275, Armament Pintle and Panel Assemblies, and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	26 in stock
2	Flat Washer NSN 5310-01-205-7923 · P/N 5593213 WASHER,FLAT 3/8 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	22	We can source it
3	Cap Hexagon Head Screw NSN 5305-00-781-3926 · P/N B1821BH038C275N SCREW,CAP,HEXAGON H 3/8-16 X 2.75 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	2	We can source it
4	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	2	351 in stock
5	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	248 in stock
6	Panel Assembly NSN 1095-01-478-3115 · P/N 12340349 PANEL ASSEMBLY,ARMA Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	We can source it quote only
7	Machine Screw NSN 5305-00-984-6195 · P/N MS35206-247 SCREW,MACHINE #8-32 X 3/4 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	We can source it
8	Quick Release Pin NSN 5315-01-197-7563 · P/N QRP3C0855 PIN,QUICK RELEASE Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	We can source it $183.50 per eachgov't list price
9	Rope Swaging Terminal NSN 4030-00-132-9181 · P/N MS20668-4 TERMINAL,ROPE,SWAGI Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	We can source it
10	Wire Make From Rope Wire Rope P/N MIL-W-83420/14IN ROPE,WIRE MAKE FROM ROPE,WIRE,P/N MIL-W-83420/2-002, 14 INCHES LONG Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	Ask us
11	Airc Swaging Sleeve NSN 4030-00-641-3921 · P/N BACT14A6 SWAGING SLEEVE,AIRC Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	1 in stock
12	Flat Washer NSN 5310-01-253-1618 · P/N MS51412-18 WASHER,FLAT #8 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	We can source it
13	Self-Locking Extended Washer Nut NSN 5310-00-807-1466 · P/N MS21042-08 NUT,SELF-LOCKING,EX #8-32 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	We can source it
14	Cap Hexagon Head Screw NSN 5305-00-781-3930 · P/N B1821BH038C475N SCREW,CAP,HEXAGON H 3/8-16 X 4.75 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	2	We can source it
15	Sleeve Bearing NSN 3120-01-188-5082 · P/N 12340310 BEARING,SLEEVE Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	239 in stock $112.50our price Buy online ↗
16	Pintle Adapter P/N 12340310-1 ADAPTER,PINTLE Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	Ask us
17	Setscrew NSN 5305-01-204-4190 · P/N 9428747 SETSCREW 3/8-24 X 1.00 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	4	46 in stock
18	Cap Hexagon Head Screw NSN 5305-01-446-0767 · P/N B1821BH038C575N SCREW,CAP,HEXAGON H 3/8-16 X 5.75 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	4	1 in stock
19	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	11	219 in stock
20	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	626 in stock
21	Cap Hexagon Head Screw NSN 5305-00-543-2866 · P/N B1821BH038C250N SCREW,CAP,HEXAGON H 3/8-16 X 2.50 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	33 in stock
22	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H 3/8-16 X 1.50 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	1,373 in stock
23	Special Cover NSN 5342-01-268-0921 · P/N 5593927 COVER,SPECIAL SUPPLEMENTAL ARMOR Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	We can source it $109.46 per assemblygov't list price
24	Gasket NSN 5330-01-238-3217 · P/N 12340095 GASKET ARMAMENT COVER Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	7 in stock
25	Access Cover NSN 5340-01-249-1587 · P/N 12340087 COVER,ACCESS Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	1	We can source it $30–$65 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
