HMMWV Armament Pintle and Panel Assemblies, and Related Parts TM 9-2320-280-24P · Fig. 276

Every part in figure 276 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 30 lines, 16 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

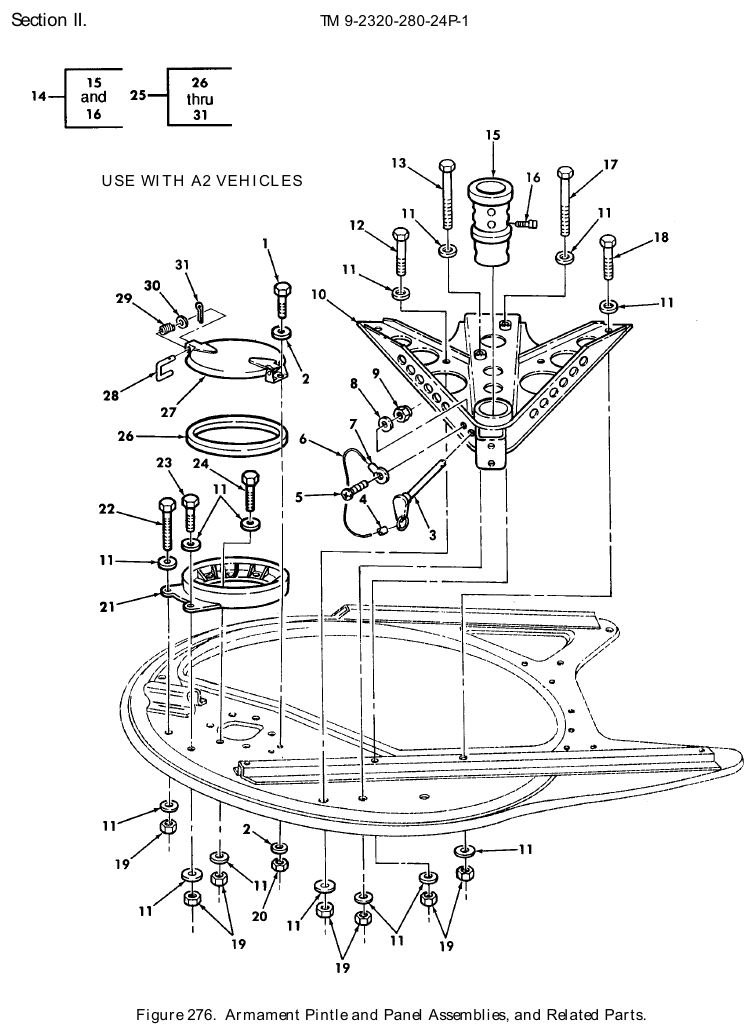

TM 9-2320-280-24P figure 276, Armament Pintle and Panel Assemblies, and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-068-7837 · P/N B1821BH025C063N SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: M1025A2, M1043A2	4	98 in stock
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M1025A2, M1043A2	4	351 in stock
3	Quick Release Pin NSN 5315-00-150-2793 · P/N MS17986-C840 PIN,QUICK RELEASE Fits: M1025A2, M1043A2	1	17 in stock $53.90our price Buy online ↗
4	Wire Rope Swaging Sleeve NSN 4030-01-142-0456 · P/N MS51844-63 SWAGING SLEEVE,WIRE Fits: M1025A2, M1043A2	1	We can source it
5	Machine Screw NSN 5305-00-754-2137 · P/N 159658 SCREW,MACHINE #8-32 X 3/4 Fits: M1025A2, M1043A2	1	We can source it
6	Wire Make From Rope Wire Rope P/N MIL-W-83420/14 ROPE,WIRE MAKE FROM ROPE,WIRE,P/N MIL-W-83420/2-002,14 INCHES LONG Fits: M1025A2, M1043A2	1	Ask us
7	Rope Swaging Terminal NSN 4030-00-132-9181 · P/N MS20668-4 TERMINAL,ROPE,SWAGI Fits: M1025A2, M1043A2	1	We can source it
8	Flat Washer NSN 5310-01-253-1618 · P/N MS51412-18 WASHER,FLAT #8 Fits: M1025A2, M1043A2	1	We can source it
9	Self-Locking Extended Washer Nut NSN 5310-00-807-1466 · P/N MS21042-08 NUT,SELF-LOCKING,HE #8-32 Fits: M1025A2, M1043A2	1	We can source it
10	Panel Assembly NSN 1005-01-188-7386 · P/N 12460206 PANEL ASSEMBLY,ARMA Fits: M1025A2, M1043A2	1	We can source it quote only
11	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT Fits: M1025A2, M1043A2	28	6 in stock
12	Cap Hexagon Head Screw NSN 5305-00-857-6886 · P/N B1821BH038C450N SCREW,CAP,HEXAGON H 3/8-16 X 4.50 Fits: M1025A2, M1043A2	1	5 in stock
13	Cap Hexagon Head Screw NSN 5305-01-475-3154 · P/N B1821BH038C700N SCREW,CAP,HEXAGON H 3/8-16 X 7.00 Fits: M1025A2, M1043A2	1	We can source it
14	Sleeve Bearing NSN 3120-01-188-5082 · P/N 12340310 BEARING,SLEEVE Fits: M1025A2, M1043A2	1	239 in stock $112.50our price Buy online ↗
15	Pintle Adapter P/N 12340310-1 ADAPTER,PINTLE Fits: M1025A2, M1043A2	1	Ask us
16	Setscrew NSN 5305-01-204-4190 · P/N 9428747 SETSCREW 3/8-24 Fits: M1025A2, M1043A2	1	46 in stock
17	Cap Hexagon Head Screw NSN 5305-01-475-3364 · P/N B1821BH038C750N SCREW,CAP,HEXAGON H 3/8-16 X 7.50 Fits: M1025A2, M1043A2	1	We can source it $25–$40 eachtypical
18	Cap Hexagon Head Screw NSN 5305-01-458-1670 · P/N B1821BH038C550N SCREW,CAP,HEXAGON H 3/8-16 X 5.50 Fits: M1025A2, M1043A2	3	1 in stock $25.99our price Buy online ↗
19	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M1025A2, M1043A2	14	219 in stock
20	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1025A2, M1043A2	2	626 in stock
21	Tow Mount Pedestal Assembly NSN 2590-01-189-9736 · P/N 12339679-1 PEDESTAL ASSEMBLY,T Fits: M1025A2, M1043A2	1	153 in stock $142.09our price Buy online ↗
22	Cap Hexagon Head Screw NSN 5305-00-990-8632 · P/N B1821BH038C375N SCREW,CAP,HEXAGON H 3/8-16 X 3.75 Fits: M1025A2, M1043A2	5	2 in stock
23	Cap Hexagon Head Screw NSN 5305-00-543-2866 · P/N B1821BH038C250N SCREW,CAP,HEXAGON H 3/8-16 X 2.50 Fits: M1025A2, M1043A2	1	33 in stock
24	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: M1025A2, M1043A2	2	26 in stock
25	Hatch Vehicle Door NSN 2510-01-189-9828 · P/N 12340311 DOOR,HATCH,VEHICLE Fits: M1025A2, M1043A2	1	2 in stock $151.67 per eachgov't list price
26	Solid Plain Disk NSN 5330-01-270-1353 · P/N 12340117 SEAL Fits: M1025A2, M1043A2	1	We can source it
27	Hatch Vehicle Door NSN 2510-01-310-2324 · P/N 5582436 COVER Fits: M1025A2, M1043A2	1	We can source it $161.34 per eachgov't list price
28	Hood Vehicular Rod NSN 2510-01-257-3747 · P/N 12340104 ROD,HOOD,VEHICULAR Fits: M1025A2, M1043A2	1	We can source it $30–$65 eachtypical
29	Helical Compression Spring NSN 5360-00-902-8068 · P/N MS24585-281 SPRING,HELICAL,COM Fits: M1025A2, M1043A2	1	We can source it
31	Cotter Pin NSN 5315-00-839-2326 · P/N MS24665-281 PIN,COTTER 3/32 X 1/2 Fits: M1025A2, M1043A2	1	305 in stock

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
