HMMWV Turret Support Ring Assembly TM 9-2320-280-24P · Fig. 277

Every part in figure 277 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 62 lines, 36 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

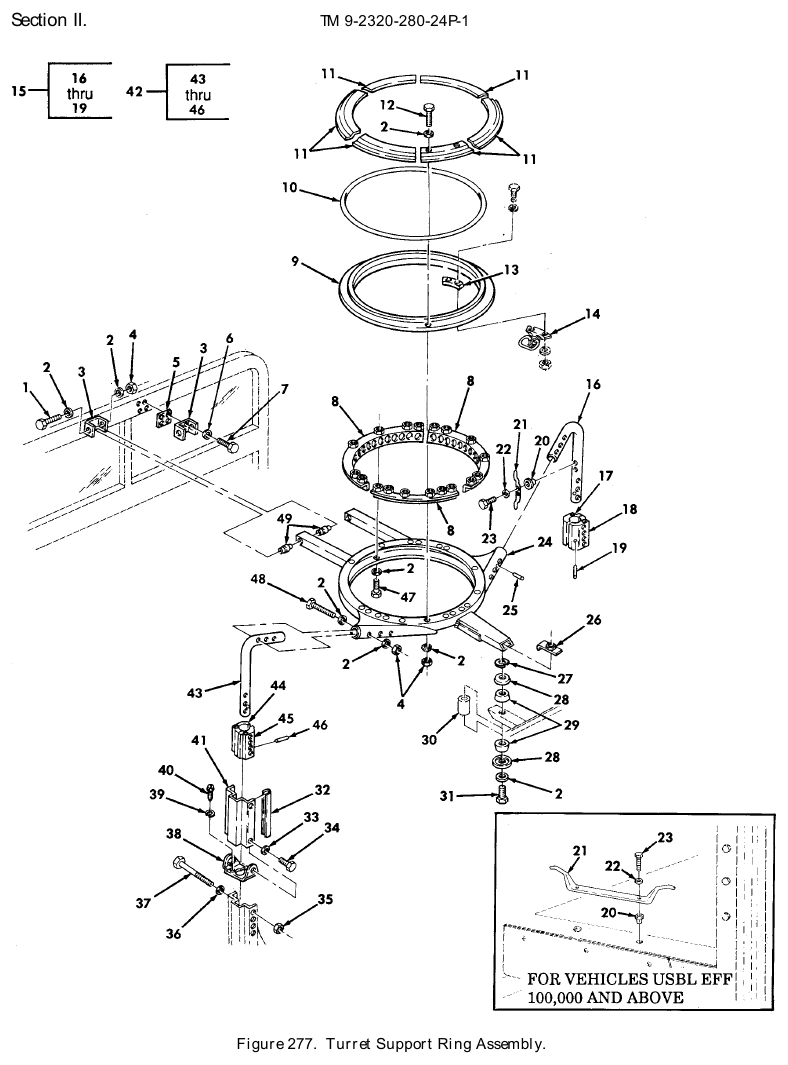

TM 9-2320-280-24P figure 277, Turret Support Ring Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-857-6886 · P/N B1821BH038C450N SCREW,CAP,HEXAGON H 3/8-16 X 4.50 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	5 in stock
2	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	47	1,146 in stock $7.83our price Buy online ↗
3	Structural Vehicul Frame Section NSN 2510-01-252-6240 · P/N 12340116 FRAME SECTION,STRUC Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it $25–$40 eachtypical
4	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	20	219 in stock
5	Plate Spacer NSN 5365-01-195-4949 · P/N 12340099-1 SPACER,PLATE 0.125 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
5	Plate Spacer NSN 5365-01-255-4990 · P/N 5596642 SPACER,PLATE 0.030 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
5	Plate Spacer NSN 5365-01-255-4991 · P/N 5596643 SPACER,PLATE 0.060 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	116 in stock $119.43 per eachgov't list price
5	Plate Spacer NSN 5365-01-255-4633 · P/N 5596644 SPACER,PLATE 0.090 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it $40–$75 eachtypical
5	Plate Spacer NSN 5365-01-255-4634 · P/N 5596645 SPACER,PLATE 0.190 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it $179.16 per eachgov't list price
6	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	471 in stock
7	Machine Bolt NSN 5306-00-226-4826 · P/N B1821BH031C088N BOLT,MACHINE 5/16-18 X 7/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	188 in stock
8	Turret Lock Ring NSN 2590-01-192-4525 · P/N 12340298 RING,TURRET LOCK Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	3	196 in stock quote only $103.06 per eachgov't list price
9	Bearing Assembly NSN 3110-01-185-3114 · P/N 12340302 BEARING ASSEMBLY,TU Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	1	We can source it
9	Assembly Bearing NSN 3110-01-457-9711 · P/N T2H2-38P2 BEARING,ASSEMBLY,TU Fits: M1025A2, M1043A2, M1045A2	1	1 in stock
10	Nonmetallic Special Shaped Seal NSN 5330-01-282-2213 · P/N MT161A SEAL,NONMETALLIC SP Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	140 in stock
11	Metal Molding NSN 2590-01-185-3112 · P/N 12340312 MOLDING,METAL Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	6	153 in stock $66.50our price Buy online ↗
11	Double Angle Bracket NSN 5340-01-457-5571 · P/N 12460290 BRACKET,DOUBLE ANGL Fits: M1025A2, M1043A2, M1045A2	12	We can source it $25–$50 eachtypical
12	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H 3/8-16 X 1.50 Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	12	1,373 in stock
12	Cap Hexagon Head Screw NSN 5305-00-781-3926 · P/N B1821BH038C275N SCREW,CAP,HEXAGON H 3/8-16 X 2.75 Fits: M1025A2, M1043A2, M1045A2	12	We can source it
13	Plate Spacer NSN 5365-01-254-4394 · P/N 12340115-1 SPACER,PLATE 0.050 INCHES THICK Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it
13	Plate Spacer NSN 5365-01-457-3364 · P/N 12340115-2 SPACER,PLATE 0.160 INCHES THICK Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1 in stock $35–$75 eachtypical
14	Rim Lock Set NSN 5340-01-253-8933 · P/N 45460-10 LOCK SET,RIM Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	188 in stock quote only $233.02 per eachgov't list price
15	Bent Metallic Tube NSN 4710-01-192-9720 · P/N 12340342-2 TUBE,BENT,METALLIC R.H.,USBL EFF 1 THRU 99,999 Fits: M966, M1025, M1026, M1043, M1044, M1045 and 2 more	1	We can source it $469.82 per eachgov't list price
15	Bent Metallic Tube NSN 4710-01-335-7523 · P/N 12340342-6 TUBE,BENT,METALLIC R.H.,USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it quote only $595.04 per assemblygov't list price
16	Support Upper B Pillar P/N 12340342-4 SUPPORT UPPER B PILLAR,RIGHT HAND Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	Ask us
17	Structural Vehicul Frame Section NSN 2510-01-257-1572 · P/N 12340090-1 FRAME SECTION,STRUC B PILLAR FRONT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1 in stock quote only $35–$65 eachtypical
18	Structural Vehicul Frame Section NSN 2510-01-266-8013 · P/N 12340090-2 FRAME SECTION,STRUC B PILLAR REAR Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it quote only $55–$105 eachtypical
19	Spring Pin NSN 5315-01-173-3397 · P/N 9412281 PIN,SPRING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
20	Plusnut NSN 4931-01-202-8692 · P/N 12339998-13 PLUSNUT 1/4-20 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
21	Stowage Cable Cleat NSN 2540-01-192-9718 · P/N 12340301 CLEAT,STOWAGE,CABLE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $35–$65 eachtypical
22	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	351 in stock
23	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	559 in stock
24	Weapons Support Assembly NSN 2540-01-185-3113 · P/N 12340334 SUPPORT ASSEMBLY,WE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it quote only $3,032.65 per assemblygov't list price
25	Spring Pin NSN 5315-01-196-0277 · P/N 456369 PIN,SPRING 1/4 X 1/2 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
26	Roof Mount Vehicl Plate Assembly NSN 2540-01-194-0197 · P/N 12339562 PLATE ASSEMBLY,ROOF REAR SUPPORT MOUNT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	999 in stock
27	Slotted Washer NSN 5310-01-212-2303 · P/N 5591507 WASHER,SLOTTED Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	V	We can source it
28	Snubber Vehicular Plate NSN 2540-01-192-5949 · P/N 12339561 PLATE,SNUBBER,VEHIC REAR SUPPORT MOUNT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	12,211 in stock
29	Resilient Utility Mount NSN 5340-01-211-0838 · P/N 5584891 MOUNT,RESILIENT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	500 in stock $25.00our price Buy online ↗
30	Sleeve Spacer NSN 5365-01-216-0364 · P/N 12338186-52 SPACER,SLEEVE .407 ID X .625 OD X 2.250 LONG Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	12 in stock
31	Cap Hexagon Head Screw NSN 5305-00-781-3927 · P/N B1821BH038C350N SCREW,CAP,HEXAGON H 3/8-16 X 3.50 USE W/0-2 SHIMS Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it
31	Cap Hexagon Head Screw NSN 5305-00-990-8632 · P/N B1821BH038C375N SCREW,CAP,HEXAGON H 3/8-16 X 3.75 USE W/3-5 SHIMS Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	2 in stock
31	Cap Hexagon Head Screw NSN 5305-00-781-3928 · P/N B1821BH038C400N SCREW,CAP,HEXAGON H 3/8-16 X 4.00 USE W/6-7 SHIMS Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	5,326 in stock
32	Automotive Trim Bezel NSN 2590-01-460-8320 · P/N 12340103-3 BEZEL,AUTOMOTIVE TR LEFT 11.13" LONG Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
32	Automotive Trim Bezel NSN 2590-01-457-9922 · P/N 12340103-4 BEZEL,AUTOMOTIVE TR RIGHT 8.25" LONG Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	1,034 in stock
33	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	6	1,368 in stock
34	Machine Screw NSN 5305-00-984-5675 · P/N MS35206-295 SCREW,MACHINE 5/16-18 X 5/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	6	36 in stock
35	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	904 in stock
36	Flat Washer NSN 5310-01-194-6459 · P/N 12339724 WASHER,FLAT 5/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	52 in stock
37	Machine Bolt NSN 5306-00-292-8253 · P/N AN5H41 BOLT,MACHINE 5/16-24 X 4.21 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	47 in stock
38	Mounting Bracket NSN 5340-01-196-0572 · P/N 5584032 BRACKET,MOUNTING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it $25–$40 eachtypical
39	Lock Washer NSN 5310-00-584-5272 · P/N ERNA245 WASHER,LOCK #10 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	833 in stock
40	Tapping Screw NSN 5305-00-855-0957 · P/N MS24629-46 SCREW,TAPPING #10-32 X 1/2 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	564 in stock
41	Pillar Cover NSN 2540-01-192-5937 · P/N 12340338 COVER,PILLAR Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	199 in stock $125.00our price Buy online ↗
42	Bent Metallic Tube NSN 4710-01-333-5995 · P/N 12340342-5 TUBE,BENT,METALLIC L.H.,USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	147 in stock $364.18 per assemblygov't list price
42	Tube Assembly NSN 4710-01-192-6113 · P/N 5578481 TUBE ASSEMBLY,METAL UPPER B PILLAR L.H.,USBL EFF 1 THRU 99,999 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it
43	Support Upper B Pillar P/N 12340342-3 SUPPORT UPPER B PILLAR,L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	Ask us
44	Structural Vehicul Frame Section NSN 2510-01-266-8013 · P/N 12340090-2 FRAME SECTION,STRUC B PILLAR REAR Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it quote only $55–$105 eachtypical
45	Structural Vehicul Frame Section NSN 2510-01-257-1572 · P/N 12340090-1 FRAME SECTION,STRUC B PILLAR FRONT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1 in stock quote only $35–$65 eachtypical
46	Spring Pin NSN 5315-01-173-3397 · P/N 9412281 PIN,SPRING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
47	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	18	26 in stock
48	Cap Hexagon Head Screw NSN 5305-00-846-5703 · P/N B1821BH038C300N SCREW,CAP,HEXAGON H 3/8-16 X 3.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	6	185 in stock
49	Resilient Utility Mount NSN 5340-01-197-6755 · P/N 3541 MOUNT,RESILIENT FRONT SUPPORT, MOUNTING CLEVIS Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	997 in stock $27.95our price Buy online ↗

Buy the 5 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
