HMMWV Radiator Hoses and Related Parts TM 9-2320-280-24P · Fig. 29

Every part in figure 29 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0503 Water Manifold, Headers, Thermostats and Housing Gaskets: 12 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

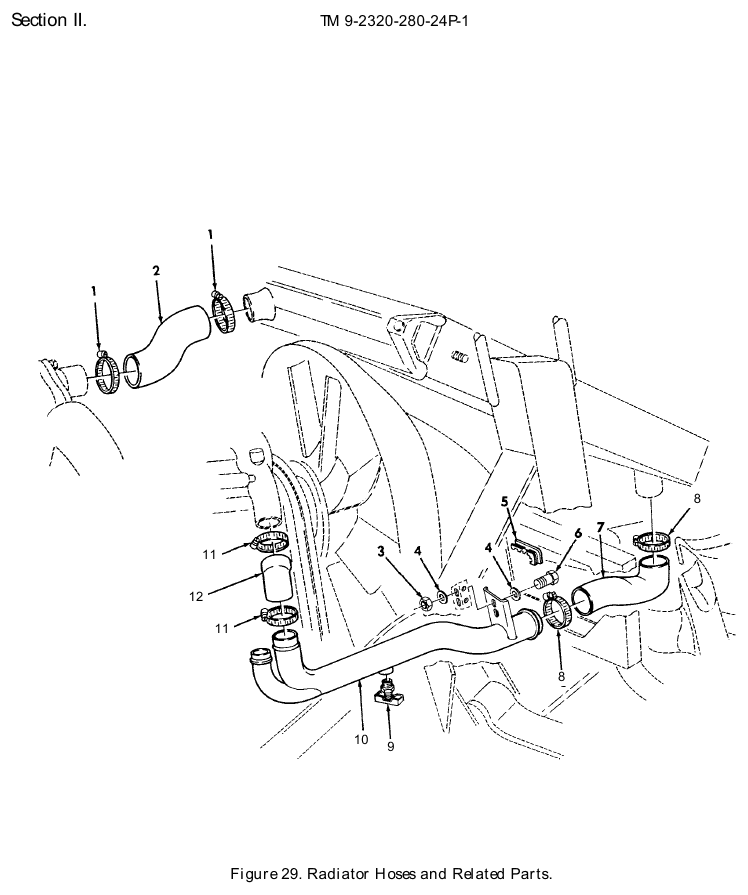

TM 9-2320-280-24P figure 29, Radiator Hoses and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Hose Clamp NSN 4730-00-204-3491 · P/N C32P CLAMP,HOSE Fits: All models	2	1 in stock
2	Preformed Hose NSN 4720-01-188-3909 · P/N 12339160 HOSE,PREFORMED INLET Fits: All models	1	109 in stock $110.50our price Buy online ↗
3	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE Fits: All models	2	626 in stock
4	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT Fits: All models	4	351 in stock
5	Cushioning Make From Pad Pad P/N 42130156-7 PAD,CUSHIONING MAKE FROM PAD,P/N 12339902-1,5.6 INCHES LONG Fits: All models	2	Ask us
6	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H Fits: All models	2	248 in stock
7	Preformed Hose NSN 4720-01-187-3386 · P/N 12339162 HOSE,PREFORMED LOWER Fits: All models	1	274 in stock $35.00our price Buy online ↗
8	Hose Clamp NSN 4730-00-909-8627 · P/N 36HSS CLAMP,HOSE Fits: All models	2	428 in stock
9	Drain Cock NSN 4820-00-752-9040 · P/N DC603-2 COCK,DRAIN Fits: All models	1	12 in stock
10	Bent Metallic Tube NSN 4710-01-188-0028 · P/N 5578604 TUBE,BENT,METALLIC LOWER Fits: All models	1	7 in stock $215.00our price Buy online ↗
11	Hose Clamp NSN 4730-01-329-9151 · P/N CT250L CLAMP,HOSE Fits: All models	2	We can source it
12	Preformed Hose NSN 4720-01-188-1370 · P/N 12339159 HOSE,PREFORMED Fits: All models	1	8,089 in stock $17.95our price Buy online ↗

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
