HMMWV S250 Shelter Mounting Components TM 9-2320-280-24P · Fig. 283

Every part in figure 283 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 34 lines, 30 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

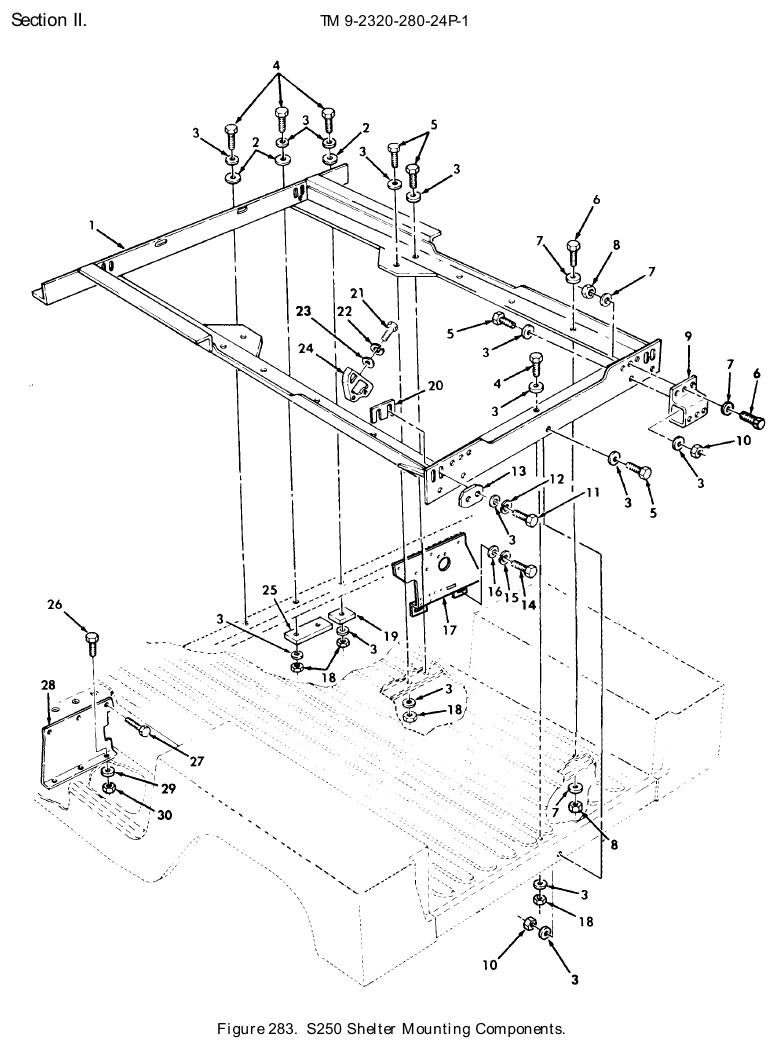

TM 9-2320-280-24P figure 283, S250 Shelter Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Mounting Support Assembly NSN 2540-01-213-8057 · P/N 12339875 SUPPORT ASSEMBLY,MO Fits: M1037, M1042	1	1 in stock $2,199.78 per assemblygov't list price
2	Flat Washer NSN 5310-01-211-0698 · P/N 12339862-2 WASHER,FLAT 1/2 Fits: M1037, M1042	6	8 in stock
3	Flat Washer NSN 5310-01-253-8948 · P/N 5593320 WASHER,FLAT 1/2 Fits: M1037, M1042	36	7 in stock
4	Cap Hexagon Head Screw NSN 5305-00-071-2072 · P/N B1821BH050C225N SCREW,CAP,HEXAGON H 1/2-13 X 2.25 Fits: M1037, M1042	7	244 in stock
5	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N 113324 SCREW,CAP,HEXAGON H 1/2-13 X 1.50 Fits: M1037, M1042	7	2,205 in stock
6	Cap Hexagon Head Screw NSN 5305-00-068-0511 · P/N B1821BH038C125N SCREW,CAP,HEXAGON H 3/8-16 X 1.25 Fits: M1037, M1042	6	1,907 in stock
7	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 Fits: M1037, M1042	16	6 in stock
8	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M1037, M1042	6	219 in stock
9	Mounting Bracket NSN 5340-01-214-4675 · P/N 12338972 BRACKET,MOUNTING Fits: M1037, M1042	2	2 in stock $70–$120 eachtypical
10	Plain Hexagon Nut NSN 5310-00-761-3706 · P/N MS51967-15 NUT,PLAIN,HEXAGON 1/2-13 Fits: M1037, M1042	5	We can source it
11	Machine Bolt NSN 5306-01-276-1621 · P/N 5597349 BOLT,SELF-LOCKING 1/2-13 X 2.75 Fits: M1037, M1042	8	8 in stock $25–$40 eachtypical
12	Lock Washer NSN 5310-00-007-1607 · P/N QR816 WASHER,LOCK 1/2 Fits: M1037, M1042	8	1,580 in stock
13	Plate Spacer NSN 5365-01-277-2387 · P/N 12341968 SPACER,PLATE Fits: M1037, M1042	4	3 in stock $25–$55 eachtypical
14	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H Fits: M1037, M1042	2	248 in stock
15	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK Fits: M1037, M1042	2	4,285 in stock
16	Flat Washer NSN 5310-01-333-0060 · P/N MS51412-23 WASHER,FLAT Fits: M1037, M1042	2	We can source it
17	Body Vehicular Panel NSN 2510-01-335-7343 · P/N 12339043-3 PANEL,BODY,VEHICULA R.H.,USBL EFF 100,000 AND ABOVE Fits: M1037, M1042	1	1 in stock $240.95 per eachgov't list price
17	Cabshelter RI Panel NSN 2590-01-203-9875 · P/N 12339043-1 PANEL,CABSHELTER,RI R.H.,USBL EFF 1 THRU 99,999 Fits: M1037, M1042	1	36 in stock $70–$115 eachtypical
18	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: M1037, M1042	11	1,713 in stock
19	Reinforcement Beam Plate NSN 2590-01-213-1629 · P/N 12339857 PLATE,REINFORCEMENT Fits: M1037, M1042	2	6 in stock $25–$40 eachtypical
20	Plate Spacer NSN 5365-01-265-8939 · P/N 12341967-3 SPACER,PLATE REAR,.03 Fits: M1037, M1042	V	14 in stock
20	Plate Spacer NSN 5365-01-265-8937 · P/N 5597351 SPACER,PLATE REAR,.09 Fits: M1037, M1042	V	4 in stock
20	Plate Spacer NSN 5365-01-265-8938 · P/N 12341967-2 SPACER,PLATE REAR,.12 Fits: M1037, M1042	V	2 in stock
21	Machine Bolt NSN 5306-01-360-1123 · P/N 9423557 BOLT,MACHINE 7/16-14 X 2.50 Fits: M1037, M1042	4	4 in stock
22	Lock Washer NSN 5310-01-016-9348 · P/N MS51848-13 WASHER,LOCK 7/16 Fits: M1037, M1042	4	2 in stock
23	Flat Washer NSN 5310-01-278-9555 · P/N 5593318 WASHER,FLAT 7/16 Fits: M1037, M1042	4	1 in stock
24	Mounting Bracket NSN 5340-01-265-8905 · P/N 12341969 BRACKET,MOUNTING Fits: M1037, M1042	4	21 in stock $63.99our price Buy online ↗
25	Reinforcement Beam Plate NSN 2590-01-213-1628 · P/N 12339856 PLATE,REINFORCEMENT Fits: M1037, M1042	2	4 in stock $25–$40 eachtypical
26	Machine Screw NSN 5305-00-470-3321 · P/N MS51849-74 SCREW,MACHINE #10-24 X 1/2 Fits: M1037, M1042	6	75 in stock
27	Cap Screw NSN 5305-01-272-9042 · P/N 5593409 SCREW,CAP,HEXAGON H #10-24 X 1/2 Fits: M1037, M1042	6	We can source it
28	Cab Shelter Panel NSN 2590-01-203-9874 · P/N 12339036 PANEL,CAB SHELTER L.H.,USBL EFF 1 THRU 99,999 Fits: M1037, M1042	1	3 in stock $65–$115 eachtypical
28	Body Vehicular Panel NSN 2510-01-383-5444 · P/N 12339036-1 PANEL,BODY,VEHICULA L.H.,USBL EFF 100,000 AND ABOVE Fits: M1037, M1042	1	We can source it $65–$105 eachtypical
29	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10 Fits: M1037, M1042	6	709 in stock
30	Plain Hexagon Nut NSN 5310-00-934-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON #10-24 Fits: M1037, M1042	6	952 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
