HMMWV S250 Shelter Tailgate Mounting Components TM 9-2320-280-24P · Fig. 284

Every part in figure 284 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 21 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

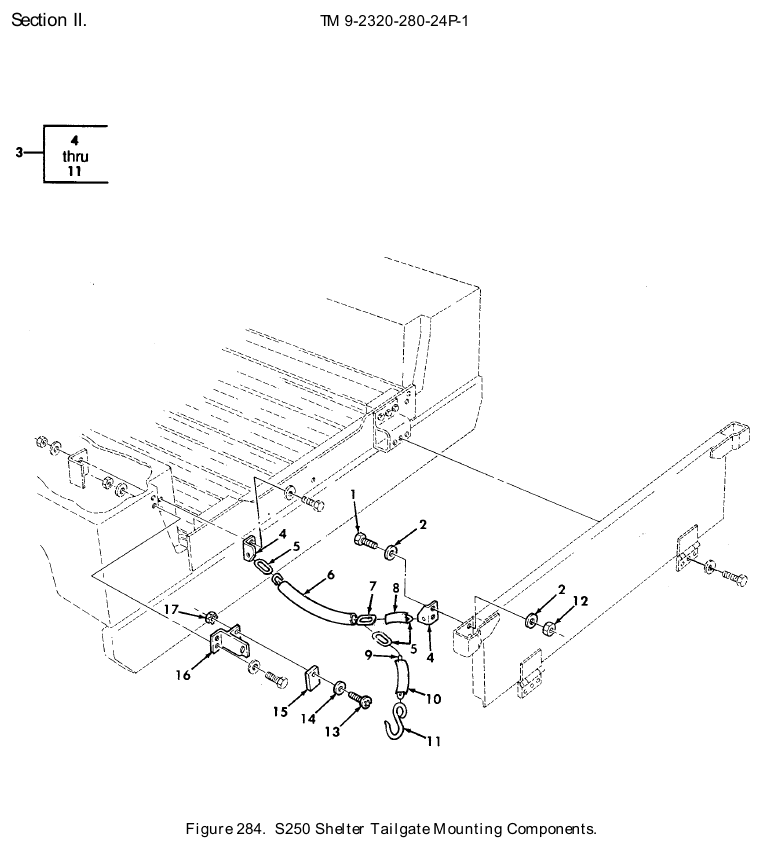

TM 9-2320-280-24P figure 284, S250 Shelter Tailgate Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1-1/8 Fits: M1037, M1042	4	84,127 in stock
2	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: M1037, M1042	8	471 in stock
3	Single Leg Chain Assembly NSN 4010-01-217-7086 · P/N 12339229-1 CHAIN ASSEMBLY,SING L.H Fits: M1037, M1042	1	5 in stock $83.29our price Buy online ↗
3	Single Leg Chain Assembly NSN 4010-01-215-7466 · P/N 12339229-2 CHAIN ASSEMBLY,SING R.H Fits: M1037, M1042	1	3 in stock $50–$85 per assemblytypical
4	Angle Bracket NSN 5340-01-186-1280 · P/N 5575702 BRACKET,ANGLE L.H Fits: M1037, M1042	1	32 in stock
4	Angle Bracket NSN 5340-01-186-1281 · P/N 5575703 BRACKET,ANGLE R.H Fits: M1037, M1042	1	We can source it
5	Chain Lap Link NSN 4010-01-194-8546 · P/N 12339223 LINK,CHAIN,LAP Fits: M1037, M1042	3	1 in stock
6	Chain Tailgate Cover NSN 2510-01-252-8461 · P/N 5592725 COVER,CHAIN,TAILGAT Fits: M1037, M1042	1	We can source it
7	Welded Chain NSN 4010-01-218-4639 · P/N 12339224-1 CHAIN,WELDED Fits: M1037, M1042	1	We can source it
8	Chain Tailgate Cover NSN 2510-01-252-7903 · P/N 5592726 COVER,CHAIN,TAILGAT Fits: M1037, M1042	1	We can source it
9	Welded Chain NSN 4010-01-218-4640 · P/N 12339224-2 CHAIN,WELDED Fits: M1037, M1042	1	We can source it
10	Chain Tailgate Cover NSN 2510-01-252-7904 · P/N 5592727 COVER,CHAIN,TAILGAT Fits: M1037, M1042	1	1 in stock
11	Chain S Hook NSN 4030-01-255-3634 · P/N 12339225-1 HOOK,CHAIN,S R.H Fits: M1037, M1042	1	1,698 in stock $25–$40 eachtypical
11	Chain S L.h Hook NSN 4030-01-269-1263 · P/N 12339225-2 HOOK,CHAIN,S L.H Fits: M1037, M1042	1	We can source it
12	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M1037, M1042	4	354 in stock
13	Machine Screw NSN 5305-00-984-6212 · P/N MS35206-265 SCREW,MACHINE #10-24 X .75 Fits: M1037, M1042	4	177 in stock
14	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: M1037, M1042	4	We can source it
15	Resilient Weapon System Mount NSN 5342-01-214-7809 · P/N 12338976 MOUNT,RESILIENT Fits: M1037, M1042	2	2 in stock
16	Door Vehicular Latch NSN 2540-01-209-6875 · P/N 12338978-2 LATCH,DOOR,VEHICULA L.H Fits: M1037, M1042	1	2 in stock $30–$65 eachtypical
16	Door Vehicular Latch NSN 2540-01-314-1121 · P/N 5590669 LATCH,DOOR,VEHICULA R.H Fits: M1037, M1042	1	17 in stock $25–$55 eachtypical
17	Plain Extended Nut NSN 5310-01-253-8928 · P/N 5592995 NUT,PLAIN,EXTENDED #10-24 Fits: M1037, M1042	4	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
