HMMWV Litter Assembly and Mounting Components TM 9-2320-280-24P · Fig. 285

Every part in figure 285 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 15 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

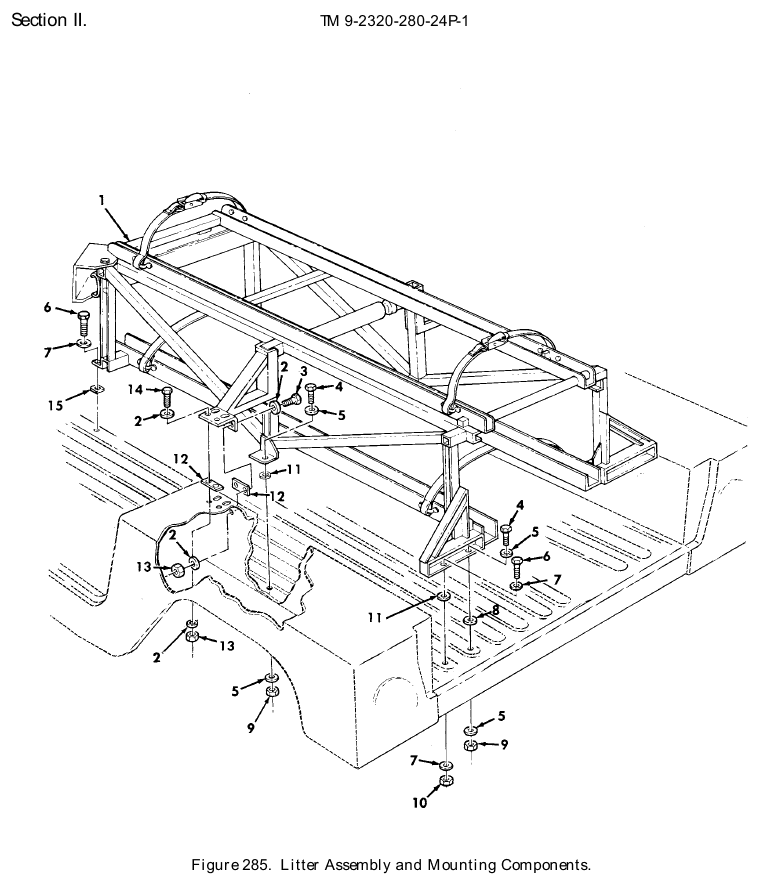

TM 9-2320-280-24P figure 285, Litter Assembly and Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehi Litter Support NSN 2590-01-199-5425 · P/N 12339959 LITTER SUPPORT,VEHI Fits: M1035, M1035A1, M1035A2	1	We can source it $12,554.20 per eachgov't list price
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M1035, M1035A1, M1035A2	24	351 in stock
3	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H 1/4-20 X 1.25 Fits: M1035, M1035A1, M1035A2	4	298 in stock
4	Cap Hexagon Head Screw NSN 5306-00-821-3869 · P/N B1821BH038C175N SCREW,CAP,HEXAGON H 3/8-16 X 1.75 Fits: M1035, M1035A1, M1035A2	4	201 in stock $14.70our price Buy online ↗
5	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: M1035, M1035A1, M1035A2	8	We can source it
6	Cap Hexagon Head Screw NSN 5305-00-071-2071 · P/N B1821BH050C200N SCREW,CAP,HEXAGON H 1/2-13 X 2.00 Fits: M1035, M1035A1, M1035A2	4	447 in stock
7	Flat Washer NSN 5310-01-121-1703 · P/N 2310-0143-001 WASHER,FLAT 1/2 Fits: M1035, M1035A1, M1035A2	6	2,218 in stock
8	Sleeve Spacer NSN 5365-01-218-9914 · P/N 12338521-5 SPACER,SLEEVE Fits: M1035, M1035A1, M1035A2	4	We can source it $25–$60 eachtypical
9	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M1035, M1035A1, M1035A2	4	219 in stock
10	Plain Hexagon Nut NSN 5310-00-761-3706 · P/N MS51967-15 NUT,PLAIN,HEXAGON 1/2-13 Fits: M1035, M1035A1, M1035A2	2	We can source it
11	Sleeve Spacer NSN 5365-01-218-9914 · P/N 12338521-5 SPACER,SLEEVE Fits: M1035, M1035A1, M1035A2	4	We can source it $25–$60 eachtypical
12	Plate Spacer NSN 5365-01-218-9848 · P/N 5583066 SPACER,PLATE Fits: M1035, M1035A1, M1035A2	4	We can source it
13	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1035, M1035A1, M1035A2	8	626 in stock
14	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M1035, M1035A1, M1035A2	8	559 in stock
15	Plate Spacer NSN 5365-01-255-3610 · P/N 12339913 SPACER,PLATE Fits: M1035, M1035A1, M1035A2	2	We can source it $25–$40 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
