HMMWV Litter Assembly TM 9-2320-280-24P · Fig. 286

Every part in figure 286 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 46 lines, 16 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

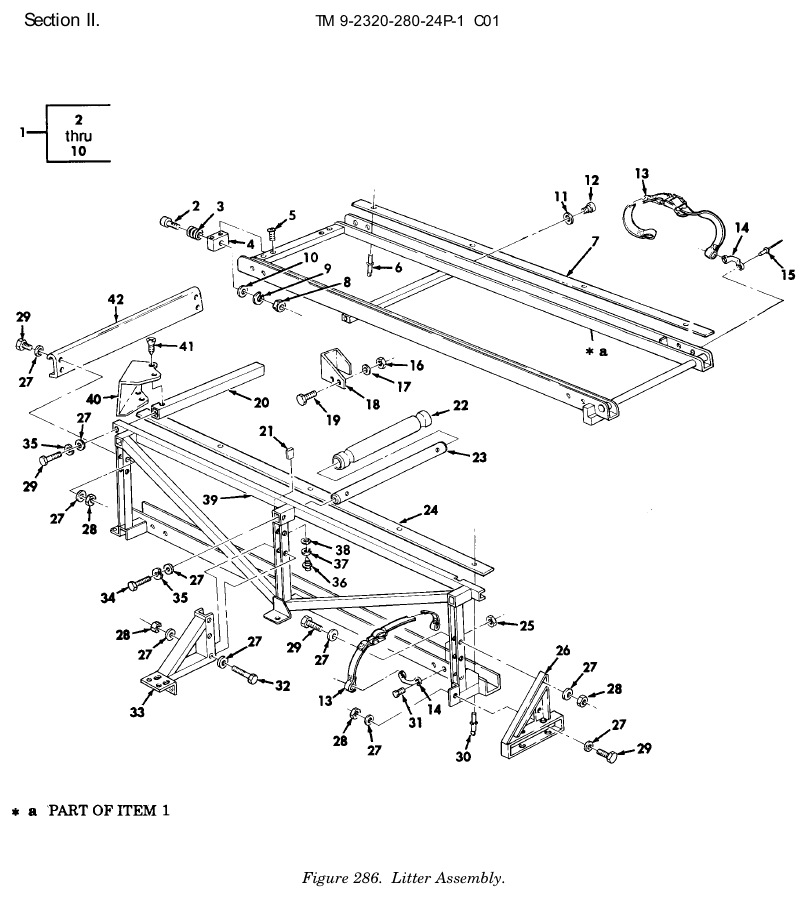

TM 9-2320-280-24P figure 286, Litter Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Litter Tray Assembly NSN 2590-01-217-5743 · P/N 12339957 TRAY ASSEMBLY,LITTE Fits: M1035, M1035A1, M1035A2	1	We can source it $4,961.24 per eachgov't list price
2	Shoulder Screw NSN 5305-01-221-7734 · P/N 08084 SCREW,SHOULDER 3/8-16 X 2.50 Fits: M1035, M1035A1, M1035A2	2	We can source it $25–$40 eachtypical
3	Helical Compression Spring NSN 5360-01-218-1608 · P/N C0720-081-1500S SPRING,HELICAL,COMP Fits: M1035, M1035A1, M1035A2	2	We can source it $30–$65 eachtypical
4	Mounting Plate NSN 5340-01-197-5469 · P/N 12339916 PLATE,MOUNTING Fits: M1035, M1035A1, M1035A2	2	We can source it $35–$70 eachtypical
5	Cap Socket Head Screw NSN 5305-01-224-1449 · P/N 64046 SCREW,CAP,SOCKET HE 1/4-20 X 3/4 Fits: M1035, M1035A1, M1035A2	4	We can source it
6	Blind Rivet NSN 5320-01-219-7261 · P/N 5590150 RIVET,BLIND Fits: M1035, M1035A1, M1035A2	8	We can source it $45–$90 eachtypical
7	Litter Track NSN 2540-01-389-0984 · P/N 12339942 TRACK,LITTER Fits: M1035, M1035A1, M1035A2	2	We can source it $30–$65 eachtypical
8	Plain Hexagon Nut NSN 5310-00-761-0654 · P/N MS51967-9 NUT,PLAIN,HEXAGON 3/8-16 Fits: M1035, M1035A1, M1035A2	2	12 in stock
9	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: M1035, M1035A1, M1035A2	2	1,162 in stock
10	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: M1035, M1035A1, M1035A2	2	We can source it
11	Flat Washer NSN 5310-01-220-3099 · P/N 5577458 WASHER,FLAT 1/4 Fits: M1035, M1035A1, M1035A2	2	We can source it $80–$130 eachtypical
12	Needle Bearing Cam Follower NSN 3110-00-162-3766 · P/N CRS22CP CAM FOLLOWER,NEEDLE Fits: M1035, M1035A1, M1035A2	2	We can source it $95–$155 eachtypical
13	Webbing Strap NSN 5340-01-260-9940 · P/N 44648-24 STRAP,WEBBING Fits: M1035, M1035A1, M1035A2	4	We can source it $30–$70 eachtypical
14	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411-B LOOP,STRAP FASTENER Fits: M1035, M1035A1, M1035A2	8	621 in stock
15	Blind Rivet NSN 5320-01-219-7261 · P/N 5590150 RIVET,BLIND Fits: M1035, M1035A1, M1035A2	8	We can source it $45–$90 eachtypical
16	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1035, M1035A1, M1035A2	3	626 in stock
17	Flat Washer NSN 5310-01-253-8949 · P/N 5592926 WASHER,FLAT 1/4 Fits: M1035, M1035A1, M1035A2	3	We can source it
18	Lower Track Litter Stop NSN 2590-01-249-1588 · P/N 12340779 LITTER STOP,LOWER T Fits: M1035, M1035A1, M1035A2	1	We can source it $85–$145 eachtypical
19	Cap Hexagon Head Screw NSN 5305-00-068-0501 · P/N MS90725-5 SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: M1035, M1035A1, M1035A2	3	288 in stock
20	Vehicular Bumper NSN 2540-01-217-2666 · P/N 12339925 BUMPER,VEHICULAR Fits: M1035, M1035A1, M1035A2	1	We can source it $65–$110 eachtypical
21	Sleeve Nut NSN 5310-01-228-3299 · P/N 12339924 NUT,SLEEVE Fits: M1035, M1035A1, M1035A2	4	We can source it $30–$65 eachtypical
22	Nonmetallic Tubing NSN 4710-01-217-9959 · P/N 12339912 TUBING,NONMETALLIC Fits: M1035, M1035A1, M1035A2	1	We can source it $585.35 per eachgov't list price
23	Round Litter Support NSN 2590-01-217-2665 · P/N 12339921 SUPPORT,ROUND,LITTE Fits: M1035, M1035A1, M1035A2	1	We can source it $245.57 per eachgov't list price
24	Lower Track Slide NSN 2540-01-383-6470 · P/N 12339951 SLIDE,LOWER TRACK Fits: M1035, M1035A1, M1035A2	2	We can source it $50–$85 eachtypical
25	Self-Locking Hexagon Nut NSN 5310-00-208-1918 · P/N 190254 NUT,SELF-LOCKING,HE #10-24 Fits: M1035, M1035A1, M1035A2	8	118 in stock
26	Corner Brace NSN 5340-01-217-2576 · P/N 12339954-2 BRACE,CORNER LOWER REAR,R.H Fits: M1035, M1035A1, M1035A2	1	We can source it $597.25 per eachgov't list price
26	Corner Brace NSN 5340-01-217-2667 · P/N 12339954-1 BRACE,CORNER LOWER REAR,L.H Fits: M1035, M1035A1, M1035A2	1	We can source it $292.34 per eachgov't list price
27	Flat Washer NSN 5310-01-253-8438 · P/N 5593218 WASHER,FLAT 3/8 Fits: M1035, M1035A1, M1035A2	42	We can source it $90–$150 eachtypical
28	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M1035, M1035A1, M1035A2	18	219 in stock
29	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: M1035, M1035A1, M1035A2	14	26 in stock
30	Blind Rivet NSN 5320-01-218-5802 · P/N 5590149 RIVET,BLIND Fits: M1035, M1035A1, M1035A2	5	We can source it
31	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE #10-24 X 3/4 Fits: M1035, M1035A1, M1035A2	8	287 in stock
32	Cap Hexagon Head Screw NSN 5305-00-781-3926 · P/N B1821BH038C275N SCREW,CAP,HEXAGON H 3/8-16 X 2.75 Fits: M1035, M1035A1, M1035A2	6	We can source it
33	Center Wheelhouse Support NSN 2510-01-217-2663 · P/N 12339947-1 SUPPORT,CENTER,WHEE L.H Fits: M1035, M1035A1, M1035A2	1	We can source it $155.09 per eachgov't list price
33	Center Wheelhouse Support NSN 2510-01-217-2664 · P/N 12339947-2 SUPPORT,CENTER,WHEE R.H Fits: M1035, M1035A1, M1035A2	1	38 in stock $1,024.03 per eachgov't list price
34	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H 3/8-16 X 1.50 Fits: M1035, M1035A1, M1035A2	2	1,373 in stock
35	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: M1035, M1035A1, M1035A2	4	1,162 in stock
36	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M1035, M1035A1, M1035A2	2	559 in stock
37	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M1035, M1035A1, M1035A2	2	4,285 in stock
38	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M1035, M1035A1, M1035A2	2	351 in stock
39	Litter Support Track NSN 2590-01-197-5474 · P/N 12339958-1 TRACK,LITTER SUPPOR L.H Fits: M1035, M1035A1, M1035A2	1	We can source it $2,313.59 per eachgov't list price
39	Litter Suppor Track NSN 2590-01-197-5475 · P/N 12339958-2 TRACK,LITTER SUPPOR R.H Fits: M1035, M1035A1, M1035A2	1	We can source it $4,355.35 per eachgov't list price
40	Litter Rack Shield NSN 2590-01-248-9536 · P/N 12339952 SHIELD,LITTER RACK UPPER FRONT,L.H Fits: M1035, M1035A1, M1035A2	1	We can source it $80–$135 eachtypical
40	Litter Rack Shield NSN 2590-01-248-9531 · P/N 5594676 SHIELD,LITTER RACK UPPER FRONT R.H Fits: M1035, M1035A1, M1035A2	1	We can source it $30–$65 eachtypical
41	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10-32 X .50 Fits: M1035, M1035A1, M1035A2	8	1,205 in stock
42	Litter Bracket NSN 2590-01-232-8210 · P/N 12339944 BRACKET,LITTER Fits: M1035, M1035A1, M1035A2	1	We can source it $35–$65 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
