HMMWV Lower Litter Skids and Upper Litter Mounting Hardware, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 287

Every part in figure 287 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 32 lines, 15 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

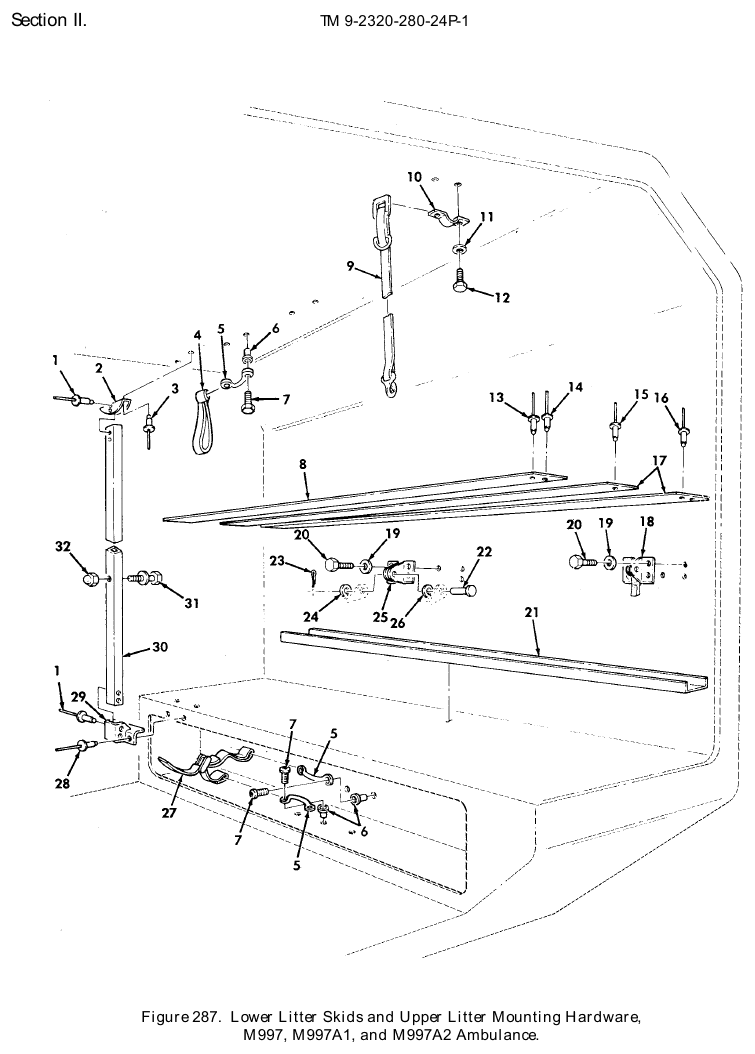

TM 9-2320-280-24P figure 287, Lower Litter Skids and Upper Litter Mounting Hardware, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-136-1782 · P/N CR3213-6-4 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	8	50 in stock
2	Double Angle Bracket NSN 5340-01-272-7495 · P/N 12341496 BRACKET,DOUBLE ANGL Fits: M997, M997A1, M997A2	2	We can source it $50–$90 eachtypical
3	Blind Rivet NSN 5320-01-084-9235 · P/N CR-213-6-5 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	4	7 in stock
4	Webbing Strap NSN 5340-01-365-8796 · P/N 12341384 STRAP,WEBBING Fits: M997, M997A1, M997A2	4	12 in stock
5	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M997, M997A1, M997A2	6	1 in stock
6	Plain Blind Rivet Nut NSN 5310-01-197-6253 · P/N S10P320 NUT,PLAIN,BLIND RIV #10-32 Fits: M997, M997A1, M997A2	12	We can source it
7	Screw NSN 5305-01-185-0114 · P/N 157166 SCREW #10-32 X 3/4 Fits: M997, M997A1, M997A2	12	We can source it
8	Plastic Molding NSN 9330-01-276-1470 · P/N SF5934157 MOLDING,PLASTIC Fits: M997, M997A1, M997A2	2	We can source it $25–$55 eachtypical
9	Webbing Strap NSN 5340-01-266-3846 · P/N 45085-11 STRAP,WEBBING Fits: M997, M997A1, M997A2	2	We can source it $25–$45 eachtypical
10	Retaining Strap NSN 5340-01-272-3402 · P/N 45094-10 STRAP,RETAINING Fits: M997, M997A1, M997A2	2	We can source it $25–$40 eachtypical
11	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M997, M997A1, M997A2	4	4,285 in stock
12	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X .75 Fits: M997, M997A1, M997A2	4	248 in stock
13	Blind Rivet NSN 5320-01-086-1148 · P/N NAS9302BNS-6-06 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	18	We can source it
14	Blind Rivet NSN 5320-01-136-1785 · P/N CR-212-6-4 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	20	58 in stock
15	Blind Rivet NSN 5320-01-273-0020 · P/N CR-212-6-5 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	30	We can source it
16	Blind Rivet NSN 5320-01-086-1147 · P/N CR3212-6-7 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	30	We can source it
17	Plastic Strip NSN 9330-01-269-7114 · P/N 12341320-6 PLASTIC STRIP Fits: M997, M997A1, M997A2	4	75 in stock $50–$100 eachtypical
18	Buckle NSN 5340-01-266-3844 · P/N 44996-10 BUCKLE Fits: M997, M997A1, M997A2	2	We can source it $95–$155 eachtypical
19	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: M997, M997A1, M997A2	16	2,036 in stock
20	Machine Bolt NSN 5306-00-226-4827 · P/N B1821BH031C100N BOLT,MACHINE 5/16-18 X 1.00 Fits: M997, M997A1, M997A2	16	292 in stock
21	Lower Litter Track NSN 2540-01-275-6202 · P/N 12341076 TRACK,LOWER LITTER Fits: M997, M997A1, M997A2	4	We can source it $65–$115 eachtypical
22	Straight Headed Pin NSN 5315-01-273-0096 · P/N 12341354 PIN,STRAIGHT,HEADED 1/4 Fits: M997, M997A1, M997A2	4	We can source it
23	Lock Pin NSN 5315-01-280-6185 · P/N 10392 PIN,LOCK 1-35/64 Fits: M997, M997A1, M997A2	4	441 in stock
24	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M997, M997A1, M997A2	4	2,325 in stock
25	Mounting Bracket NSN 5340-01-273-4667 · P/N 5589868 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	2	We can source it $70–$115 eachtypical
26	Flat Washer NSN 5310-01-272-7449 · P/N 12341353-1 WASHER,FLAT 3/8 Fits: M997, M997A1, M997A2	4	We can source it
27	Webbing Strap NSN 5340-01-265-8923 · P/N 12339817-4 STRAP,WEBBING Fits: M997, M997A1, M997A2	1	824 in stock $25.00our price Buy online ↗
28	Blind Rivet NSN 5320-01-085-9995 · P/N CR3213-6-7 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	8	We can source it
29	Mounting Bracket NSN 5340-01-272-5594 · P/N 5589864 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	2	We can source it $30–$70 eachtypical
30	Metallic Tube NSN 4710-01-271-7937 · P/N 12341049 TUBE,METALLIC Fits: M997, M997A1, M997A2	2	10 in stock $68.59our price Buy online ↗
31	Shoulder Bolt NSN 5306-01-265-8897 · P/N J4501XXBZ01 BOLT,SHOULDER Fits: M997, M997A1, M997A2	2	4 in stock $30–$60 eachtypical
32	Plain Cap Nut NSN 5310-01-272-6546 · P/N 5593387 NUT,PLAIN,CAP 7/16-14 Fits: M997, M997A1, M997A2	2	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
