HMMWV Litter Tray Extension Assembly, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 288

Every part in figure 288 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 35 lines, 14 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

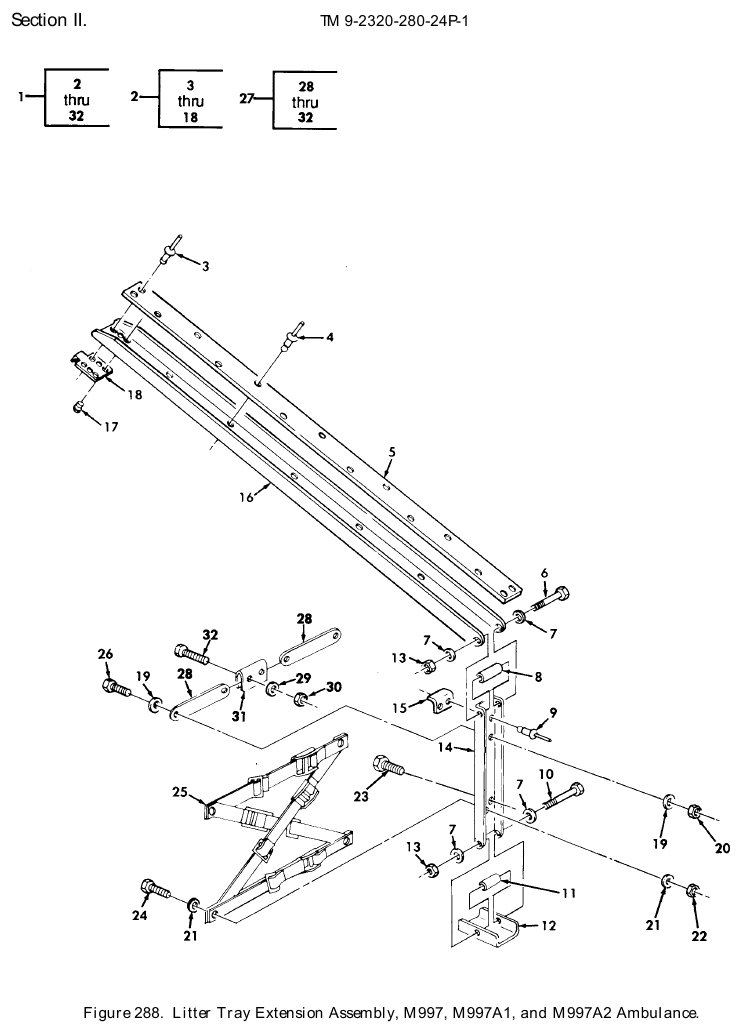

TM 9-2320-280-24P figure 288, Litter Tray Extension Assembly, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Litter Tray Extension Assembly NSN 2540-01-357-8939 · P/N 12340946 EXTENSION ASSEMBLY, Fits: M997, M997A1, M997A2	1	6 in stock $791.16 per assemblygov't list price
2	Tray Assembly R.h P/N 5588872 TRAY ASSEMBLY R.H Fits: M997, M997A1, M997A2	1	Ask us
2	Tray Assembly L.h P/N 5589785 TRAY ASSEMBLY L.H Fits: M997, M997A1, M997A2	1	Ask us
3	Blind Rivet NSN 5320-01-136-1787 · P/N CR3212-6-5 RIVET,BLIND 3/16 X 7/16 Fits: M997, M997A1, M997A2	8	We can source it
4	Solid Rivet NSN 5320-00-117-7289 · P/N MS20426AD6-9 RIVET,SOLID 3/16 X 5/16 Fits: M997, M997A1, M997A2	26	We can source it
5	Extension Rail Skid NSN 2540-01-271-3772 · P/N 12341012 RAIL SKID,EXTENSION Fits: M997, M997A1, M997A2	2	6 in stock $30–$60 eachtypical
6	Cap Hexagon Head Screw NSN 5305-00-781-3928 · P/N B1821BH038C400N SCREW,CAP,HEXAGON H 3/8-16 X 4.00 Fits: M997, M997A1, M997A2	2	5,326 in stock
7	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: M997, M997A1, M997A2	8	We can source it
8	Metallic Tube NSN 4710-01-270-9507 · P/N 12341582-2 TUBE,METALLIC Fits: M997, M997A1, M997A2	2	We can source it $40–$80 eachtypical
9	Solid Rivet NSN 5320-00-721-9062 · P/N MS20470AD6-10 RIVET,SOLID 3/16 X 3/8 Fits: M997, M997A1, M997A2	4	We can source it
10	Cap Hexagon Head Screw NSN 5305-00-781-3927 · P/N B1821BH038C350N SCREW,CAP,HEXAGON H 3/8-16 X 3.50 Fits: M997, M997A1, M997A2	2	We can source it
11	Metallic Tube NSN 4710-00-541-4935 · P/N 12341582-1 TUBE,METALLIC Fits: M997, M997A1, M997A2	2	We can source it
12	Structural Vehicul Frame Section NSN 2510-01-272-3951 · P/N 12341020 FRAME SECTION,STRUC Fits: M997, M997A1, M997A2	2	We can source it $100.34 per eachgov't list price
13	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M997, M997A1, M997A2	4	219 in stock
14	Structural Vehicul Frame Section NSN 2510-01-272-3952 · P/N 12341556-2 FRAME SECTION,STRUC R.H Fits: M997, M997A1, M997A2	1	We can source it $85–$140 eachtypical
14	Structural Vehicul Frame Section NSN 2510-01-272-0538 · P/N 12341556-1 FRAME SECTION,STRUC L.H Fits: M997, M997A1, M997A2	1	We can source it $70–$120 eachtypical
15	Stop Leg NSN 2540-01-275-6203 · P/N 5588878 LEG,STOP Fits: M997, M997A1, M997A2	2	We can source it $45–$85 eachtypical
16	Structural Vehicul Frame Section NSN 2510-01-272-3953 · P/N 12341112 FRAME SECTION,STRUC Fits: M997, M997A1, M997A2	2	We can source it $4,620.14 per eachgov't list price
17	Solid Rivet NSN 5320-00-117-6910 · P/N MS20426AD10-16 RIVET,SOLID 5/16 X 1.00 Fits: M997, M997A1, M997A2	8	We can source it
18	Angle Bracket NSN 5340-01-272-9105 · P/N 5597808 BRACKET,ANGLE R.H Fits: M997, M997A1, M997A2	1	We can source it $25–$50 eachtypical
18	Angle Bracket NSN 5340-01-281-3429 · P/N 5588877 BRACKET,ANGLE L.H Fits: M997, M997A1, M997A2	1	We can source it $25–$40 eachtypical
19	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 1/4 Fits: M997, M997A1, M997A2	8	1,368 in stock
20	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M997, M997A1, M997A2	4	354 in stock
21	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 5/16 Fits: M997, M997A1, M997A2	8	2,325 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M997, M997A1, M997A2	4	626 in stock
23	Cap Hexagon Head Screw NSN 5305-00-226-4831 · P/N B1821BH031C150N SCREW,CAP,HEXAGON H LOWER ARM,5/ 16-18 X 1.50 Fits: M997, M997A1, M997A2	2	221 in stock
24	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M997, M997A1, M997A2	4	298 in stock
25	Strap Assembly NSN 5342-01-280-6264 · P/N 45243-10 STRAP ASSEMBLY Fits: M997, M997A1, M997A2	1	We can source it $115.09 per assemblygov't list price
26	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE UPPER ARM,5/16 18 X 1.125 Fits: M997, M997A1, M997A2	2	84,127 in stock
27	Rail Arm Assembly NSN 2540-01-271-1946 · P/N 12341132 ARM ASSEMBLY,RAIL Fits: M997, M997A1, M997A2	2	We can source it $50–$100 per assemblytypical
28	Extension Locking Arm NSN 2540-01-271-3773 · P/N 5592019 LOCKING ARM,EXTENSI Fits: M997, M997A1, M997A2	2	We can source it $45–$85 eachtypical
29	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M997, M997A1, M997A2	2	2,325 in stock
30	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M997, M997A1, M997A2	2	626 in stock
31	Double Angle Bracket NSN 5340-01-272-7493 · P/N 5592020 BRACKET,DOUBLE ANGL Fits: M997, M997A1, M997A2	1	We can source it $358.98 per eachgov't list price
32	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H 1/4-20 X 1.25 Fits: M997, M997A1, M997A2	2	298 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
