HMMWV Upper Litter Tray Assembly, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 289

Every part in figure 289 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 33 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

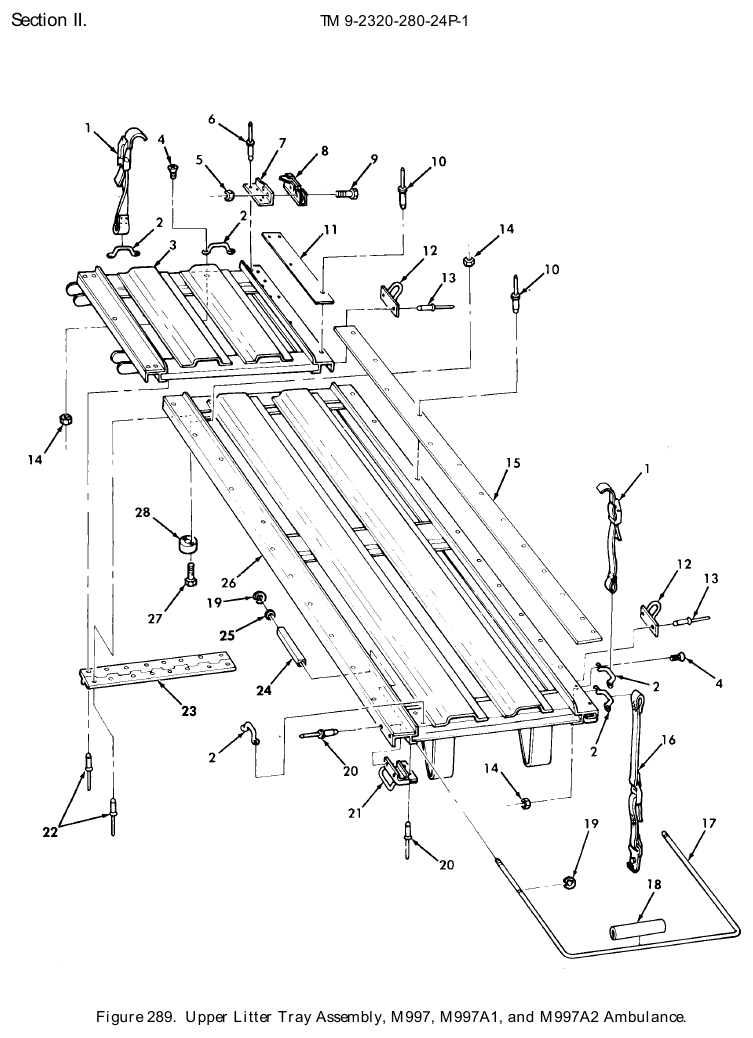

TM 9-2320-280-24P figure 289, Upper Litter Tray Assembly, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Webbing Strap NSN 5340-01-265-8925 · P/N 45084-11 STRAP,WEBBING Fits: M997, M997A1, M997A2	8	120 in stock
2	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M997, M997A1, M997A2	10	1 in stock
3	Ambulance Litter Tray NSN 2540-01-271-2840 · P/N 12341143-1 LITTER TRAY,AMBULAN L.H Fits: M997, M997A1, M997A2	1	25 in stock $524.30our price Buy online ↗
3	Ambulance Litter Tray NSN 2540-01-271-2841 · P/N 12341143-2 LITTER TRAY,AMBULAN R.H Fits: M997, M997A1, M997A2	1	3 in stock $367.84 per assemblygov't list price
4	Machine Screw NSN 5305-00-180-4966 · P/N MS51849-64 SCREW,MACHINE #10-32 X .50 Fits: M997, M997A1, M997A2	20	We can source it
5	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M997, M997A1, M997A2	4	626 in stock
6	Blind Rivet NSN 5320-01-136-1782 · P/N CR3213-6-4 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	8	50 in stock
7	Angle Bracket NSN 5340-01-272-2635 · P/N 12340952-1 BRACKET,ANGLE L.H Fits: M997, M997A1, M997A2	1	We can source it $25–$50 eachtypical
7	Angle Bracket NSN 5340-01-273-1680 · P/N 12340952-2 BRACKET,ANGLE R.H Fits: M997, M997A1, M997A2	1	We can source it
8	Litter Vehicular Latch NSN 2540-01-385-7497 · P/N J450XXLXBZ01 LATCH,LITTER,VEHICU FRONT,L.H Fits: M997, M997A1, M997A2	1	We can source it $40–$80 eachtypical
8	Upper Litter Latch NSN 5342-01-266-7559 · P/N S4501XRXBZXX LATCH,UPPER LITTER FRONT,R.H Fits: M997, M997A1, M997A2	1	32 in stock $30–$55 eachtypical
9	Cap Hexagon Head Screw NSN 5305-00-071-2509 · P/N B1821BH025C150N SCREW,CAP,HEXAGON H FRONT,1/4-20 X 1.50 Fits: M997, M997A1, M997A2	4	558 in stock
10	Solid Rivet NSN 5320-00-117-7288 · P/N MS20426-AD6-8 RIVET,SOLID 3/16 Fits: M997, M997A1, M997A2	68	4 in stock
11	Tray Litter Skid NSN 2540-01-276-5928 · P/N SF5589377 SKID,TRAY,LITTER Fits: M997, M997A1, M997A2	4	6 in stock
12	Litter Tray Ring Assembly NSN 2540-01-271-3771 · P/N 12340955 RING ASSEMBLY,LITTE Fits: M997, M997A1, M997A2	4	76 in stock $25–$40 eachtypical
13	Solid Rivet NSN 5320-00-117-6853 · P/N MS20470AD6-8 RIVET,SOLID 3/16 X 1/4 Fits: M997, M997A1, M997A2	8	80 in stock
14	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32 Fits: M997, M997A1, M997A2	28	10 in stock
15	Upper Tray Rear Skid NSN 2540-01-271-9806 · P/N 12341320-4 SKID,UPPER TRAY,REA Fits: M997, M997A1, M997A2	4	We can source it $25–$40 eachtypical
16	Webbing Strap NSN 5340-01-282-2670 · P/N 45087-10 STRAP,WEBBING Fits: M997, M997A1, M997A2	2	23 in stock $25–$40 eachtypical
17	Bow Handle NSN 5340-01-272-8405 · P/N 12341064 HANDLE,BOW Fits: M997, M997A1, M997A2	2	We can source it $50–$95 eachtypical
18	Nonmetallic Bushing NSN 5365-01-272-2806 · P/N 12341670 BUSHING,NONMETALLIC Fits: M997, M997A1, M997A2	2	We can source it $25–$40 eachtypical
19	Retaining Ring NSN 5325-00-442-5845 · P/N MS16633-1050 RING,RETAINING Fits: M997, M997A1, M997A2	8	695 in stock
20	Solid Rivet NSN 5320-00-721-9062 · P/N MS20470AD6-10 RIVET,SOLID 3/16 Fits: M997, M997A1, M997A2	8	We can source it
21	Catch Strike NSN 5340-01-272-5652 · P/N 12341045-1 STRIKE,CATCH L.H Fits: M997, M997A1, M997A2	1	We can source it $40–$80 eachtypical
21	Catch Strike NSN 5340-01-272-4962 · P/N 12341045-2 STRIKE,CATCH R.H Fits: M997, M997A1, M997A2	1	We can source it $55–$95 eachtypical
22	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	32	We can source it
23	Butt Hinge NSN 5340-01-265-8858 · P/N 12341565 HINGE,BUTT Fits: M997, M997A1, M997A2	2	29 in stock $30–$60 eachtypical
24	Manual Control Handle NSN 5340-01-272-4935 · P/N 5589748-C HANDLE,MANUAL CONTR Fits: M997, M997A1, M997A2	4	We can source it $25–$60 eachtypical
25	Flat Washer NSN 5310-01-272-9985 · P/N 12341399 WASHER,FLAT 3/4 Fits: M997, M997A1, M997A2	4	We can source it
26	Litter Tray Assembly NSN 2590-01-271-3770 · P/N 12341145-1 TRAY ASSEMBLY,LITTE L.H Fits: M997, M997A1, M997A2	1	We can source it $779.47 per assemblygov't list price
26	Litter Tray Assembly NSN 2590-01-271-9807 · P/N 12341145-2 TRAY ASSEMBLY,LITTE R.H Fits: M997, M997A1, M997A2	1	We can source it $1,299.89 per assemblygov't list price
27	Machine Screw NSN 5305-01-272-5433 · P/N 5593390 SCREW,MACHINE #10-32 X 1.00 Fits: M997, M997A1, M997A2	8	We can source it
28	Light Stand NSN 6230-01-269-8054 · P/N 922-721-00 STAND,LIGHT Fits: M997, M997A1, M997A2	4	16 in stock $100.52 per eachgov't list price

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
