HMMWV Litter Skids and Tracks, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 290

Every part in figure 290 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 11 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

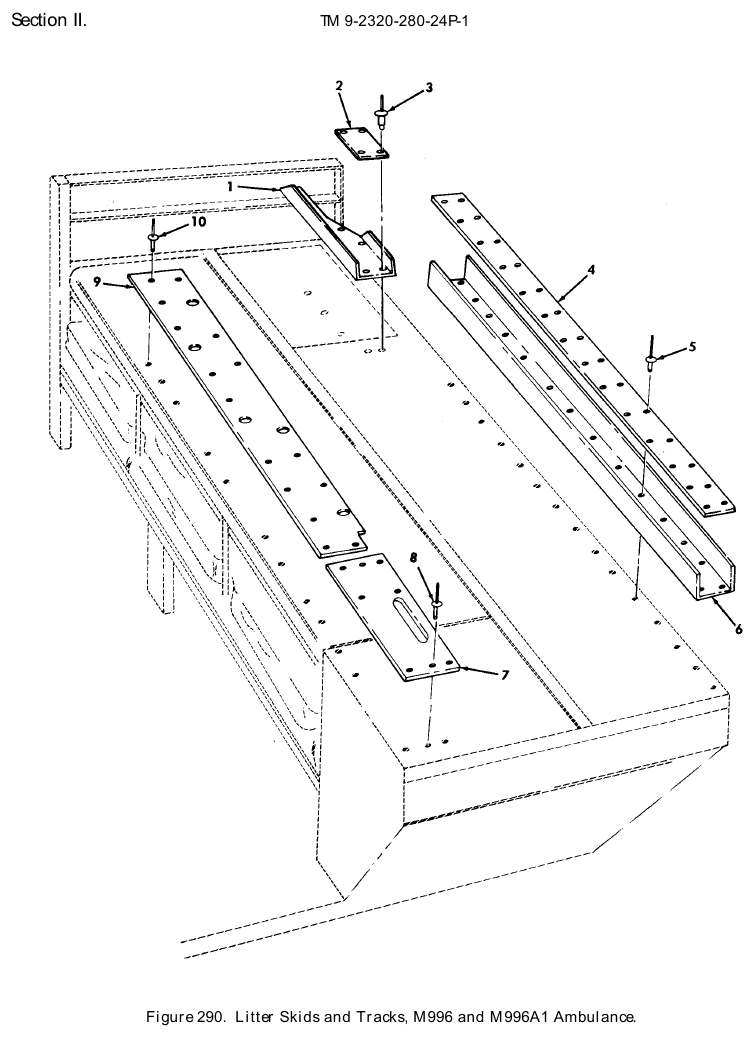

TM 9-2320-280-24P figure 290, Litter Skids and Tracks, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Double Angle Bracket NSN 5340-01-276-5850 · P/N 5597602 BRACKET,DOUBLE ANGL FRONT,L.H Fits: M996, M996A1	1	We can source it $102.22 per eachgov't list price
1	Litter Front RH Track NSN 5342-01-274-6210 · P/N 5597603 TRACK,LITTER,FRONT, FRONT,R.H Fits: M996, M996A1	1	We can source it $431.90 per eachgov't list price
2	Cover Skid NSN 2540-01-271-2832 · P/N SF5597606 SKID,COVER Fits: M996, M996A1	2	We can source it $75–$125 eachtypical
3	Blind Rivet NSN 5320-01-086-1148 · P/N NAS9302BNS-6-06 RIVET,BLIND 3/16 X 1/8 Fits: M996, M996A1	8	We can source it
4	Cover Rear Skid NSN 2540-01-270-6458 · P/N 12341320-2 SKID,COVER REAR Fits: M996, M996A1	2	1 in stock $35–$65 eachtypical
5	Blind Rivet NSN 5320-01-136-1787 · P/N NAS9302BNS-6-05 RIVET,BLIND 3/16 Fits: M996, M996A1	56	We can source it
6	Double Angle Bracket NSN 5340-01-273-1686 · P/N 12341507 BRACKET,DOUBLE ANGL LITTER, REAR Fits: M996, M996A1	2	We can source it $553.11 per eachgov't list price
7	Cover Rear Skid NSN 2540-01-270-6459 · P/N SF5934158 SKID,COVER REAR Fits: M996, M996A1	2	We can source it $25–$60 eachtypical
8	Blind Rivet NSN 5320-01-136-1785 · P/N CR-212-6-4 RIVET,BLIND 3/16 X 1/4 Fits: M996, M996A1	16	58 in stock
9	Seat Back Skid NSN 2540-01-270-6460 · P/N 12341499 SKID,SEAT BACK Fits: M996, M996A1	2	We can source it $166.77 per eachgov't list price
10	Blind Rivet NSN 5320-01-084-6101 · P/N CR3212-6-3 RIVET,BLIND 3/16 Fits: M996, M996A1	52	12 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
