HMMWV Thermostat, Water Crossover, and Attaching Hardware TM 9-2320-280-24P · Fig. 30

Every part in figure 30 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0503 Water Manifold, Headers, Thermostats and Housing Gaskets: 26 lines, 16 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

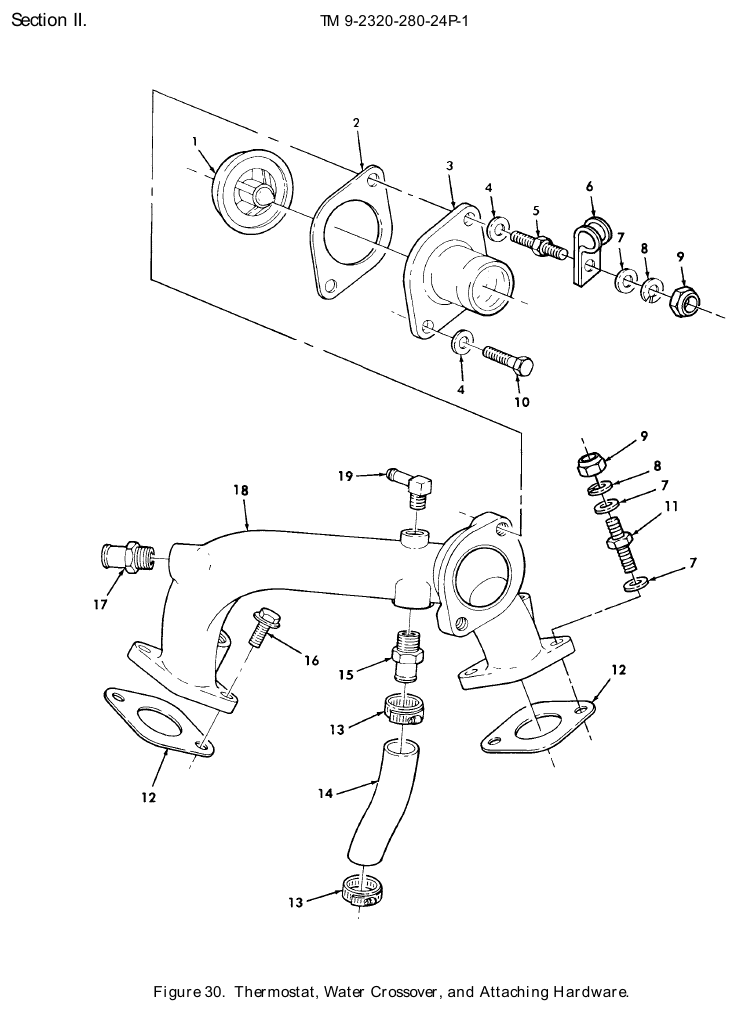

TM 9-2320-280-24P figure 30, Thermostat, Water Crossover, and Attaching Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flow Control Thermostat NSN 6685-01-146-8006 · P/N 14077122 THERMOSTAT,FLOW CON 6.2.LITER Fits: All A0 and A1 models, plus M1121	1	4 in stock $50–$95 eachtypical
1	Flow Control Thermostat NSN 6685-01-444-9478 · P/N 12551497 THERMOSTAT,FLOW CON 6.5/6.5 DETUNED Fits: All models	1	We can source it $50–$100 eachtypical
2	Gasket NSN 5330-01-434-8611 · P/N 12551591 GASKET Fits: All models	1	5 in stock
3	Engine Water Outlet NSN 2930-01-147-4198 · P/N 14028918 WATER OUTLET,ENGINE Fits: All models	1	18 in stock
4	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT #10 Fits: All models	2	6 in stock
5	Shouldered Stud NSN 5307-01-150-1227 · P/N 14033946 STUD,SHOULDERED 10-1.5 X 30 MM Fits: All A0 and A1 models, plus M1121	1	1,577 in stock $14.69our price Buy online ↗
5	Shouldered Stud NSN 5307-01-291-9018 · P/N 12339406-2 STUD,SHOULDERED Fits: All A2 models, plus M1123	1	4 in stock
6	Loop Clamp NSN 5340-00-151-9651 · P/N MS21333-129 CLAMP,LOOP Fits: All models	1	We can source it
7	Flat Washer NSN 5310-01-210-1587 · P/N 11500256 WASHER,FLAT Fits: All A2 models, plus M1123	3	We can source it
8	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK Fits: All A2 models, plus M1123	2	1 in stock
9	Plain Hexagon Nut NSN 5310-01-395-8747 · P/N B18241B100F NUT,PLAIN,HEXAGON 10-1.5 MM Fits: All A2 models, plus M1123	2	98 in stock
10	Machine Bolt NSN 5306-01-165-4283 · P/N 11500831 BOLT,SELF-LOCKING 10-1.5 X 35 MM Fits: All models	1	We can source it
11	Shouldered Stud NSN 5307-01-465-5796 · P/N 12339406-4 STUD,SHOULDERED M10-1.5 X 30 X 20 Fits: All A2 models, plus M1123	1	We can source it
12	Gasket NSN 5330-01-149-0874 · P/N 10137488 GASKET Fits: All models	2	74 in stock
13	Hose Clamp NSN 4730-01-444-0701 · P/N 11516230 CLAMP,HOSE 6.5 LITER Fits: All A2 models, plus M1123	2	3 in stock
13	Hose Clamp NSN 4730-00-166-9178 · P/N 12337891 CLAMP,HOSE 6.2/6.5 DETUNED Fits: All A0 and A1 models, plus M1121	2	4 in stock
14	Hose Make From Hose P/N 23500084 HOSE MAKE FROM HOSE,P/N 4377,5 INCHES LONG 6.2/6.5 DETUNED Fits: All A0 and A1 models, plus M1121	1	Ask us
14	Nonmetallic Hose P/N 10243629 HOSE,NONMETALLIC 6.5 LITER, MAKE FROM HOSE, P/N MS521302B206R, 5-1/2 INCHES LONG Fits: All A2 models, plus M1123	1	Ask us
15	Straight Pipe to Tube Adapter NSN 4730-01-445-2358 · P/N 10183956 ADAPTER,STRAIGHT,PI 6.5 LITER Fits: All A2 models, plus M1123	1	We can source it
15	Straight Pipe to Tube Adapter NSN 4730-01-182-6565 · P/N 3739798 ADAPTER,STRAIGHT,PI 6.2/6.5 DETUNED Fits: All A0 and A1 models, plus M1121	1	38 in stock
16	Machine Bolt NSN 5306-01-149-6280 · P/N 1635490 BOLT,SELF-LOCKING Fits: All A0 and A1 models, plus M1121	4	18 in stock
16	Machine Bolt NSN 5306-01-149-6280 · P/N 1635490 BOLT,SELF-LOCKING Fits: All A2 models, plus M1123	3	18 in stock
17	Straight Pipe to Hose Adapter NSN 4730-01-148-2758 · P/N 354501 ADAPTER,STRAIGHT,PI Fits: All models	1	We can source it
18	Engine Water Outlet NSN 2930-01-460-7507 · P/N 12554091 WATER OUTLET,ENGINE 6.5/6.5 DETUNED Fits: All models	1	1 in stock $576.23 per eachgov't list price
18	Engine Water Outlet NSN 2930-01-188-3682 · P/N 23500012 WATER OUTLET,ENGINE 6.2 LITER Fits: All A0 and A1 models, plus M1121	1	18 in stock $218.66 per eachgov't list price
19	Pipe to Hose Elbow NSN 4730-00-041-2526 · P/N 1069X6 ELBOW,PIPE TO HOSE Fits: All models	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
