HMMWV Red Cross Marking Rear Door, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 291

Every part in figure 291 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 12 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

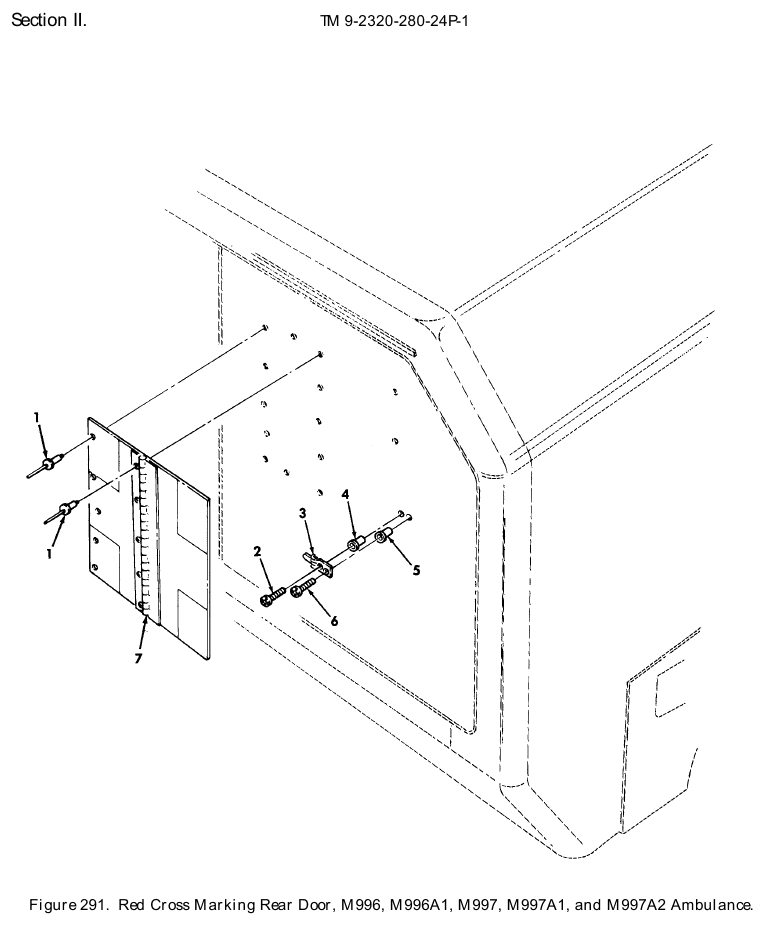

TM 9-2320-280-24P figure 291, Red Cross Marking Rear Door, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND Fits: M997, M997A1, M997A2	24	We can source it
1	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND Fits: M996, M996A1	12	We can source it
2	Machine Screw NSN 5305-00-989-6265 · P/N MS35207-262 SCREW,MACHINE #10-32 X 7/8 Fits: M997, M997A1, M997A2	8	347 in stock
2	Machine Screw NSN 5305-00-989-6265 · P/N MS35207-262 SCREW,MACHINE #10-32 X 7/8 Fits: M996, M996A1	4	347 in stock
3	Spring Tension Clip NSN 5340-01-271-5866 · P/N 12341798 CLIP,SPRING TENSION Fits: M997, M997A1, M997A2	8	14 in stock
3	Spring Tension Clip NSN 5340-01-271-5866 · P/N 12341798 CLIP,SPRING TENSION Fits: M996, M996A1	4	14 in stock
4	Plain Blind Rivet Nut NSN 5310-01-009-9785 · P/N MS27130-20 NUT,PLAIN,BLIND RIV Fits: M997, M997A1, M997A2	8	We can source it
4	Plain Blind Rivet Nut NSN 5310-01-009-9785 · P/N MS27130-20 NUT,PLAIN,BLIND RIV Fits: M996, M996A1	4	We can source it
5	Body Vehicular Panel NSN 2510-01-265-3282 · P/N 12341082-2 PANEL,BODY,VEHICULA Fits: M997, M997A1, M997A2	2	50 in stock $87.20our price Buy online ↗
5	Body Vehicular Panel NSN 2510-01-265-3282 · P/N 12341082-2 PANEL,BODY,VEHICULA Fits: M996, M996A1	1	50 in stock $87.20our price Buy online ↗
6	Blind Rivet NSN 5320-01-135-7319 · P/N NAS9301BNS-6-03 RIVET,BLIND Fits: M997, M997A1, M997A2	10	72 in stock
6	Blind Rivet NSN 5320-01-135-7319 · P/N NAS9301BNS-6-03 RIVET,BLIND Fits: M996, M996A1	5	72 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
