HMMWV Two and Four Litter Ambulance Body , Red Cross Markings, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 297

Every part in figure 297 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 18 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

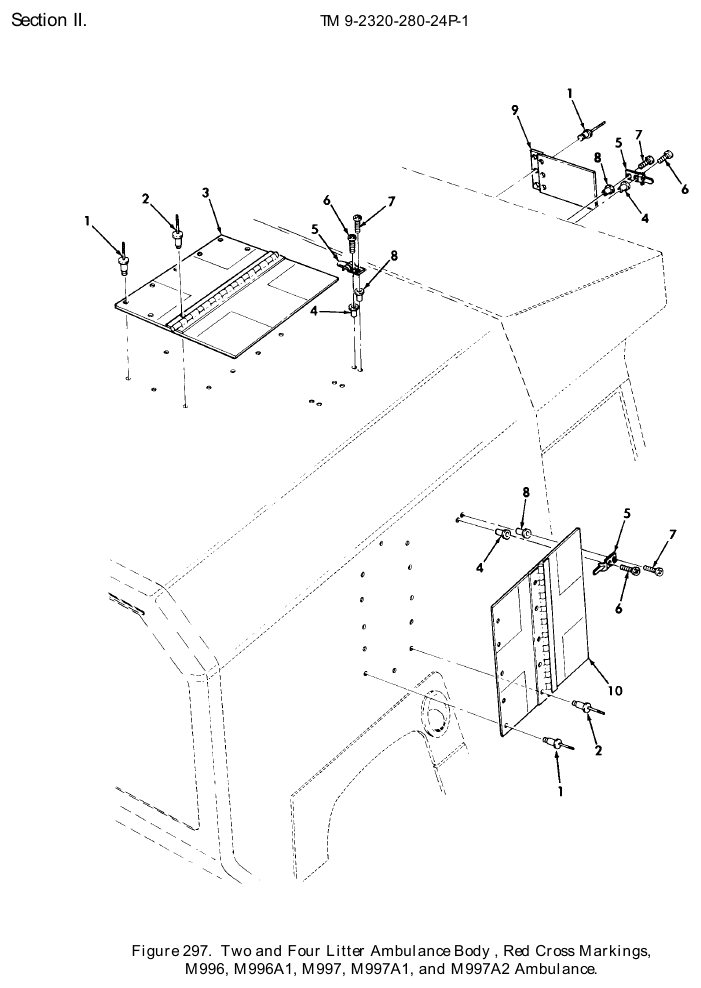

TM 9-2320-280-24P figure 297, Two and Four Litter Ambulance Body , Red Cross Markings, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	21	We can source it
1	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M996, M996A1	25	We can source it
2	Blind Rivet NSN 5320-01-264-5978 · P/N 12339355-2 RIVET,BLIND 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	6	We can source it
2	Blind Rivet NSN 5320-01-264-5978 · P/N 12339355-2 RIVET,BLIND Fits: M996, M996A1	11	We can source it
3	Body Vehicular Panel NSN 2510-01-265-3281 · P/N 12341082-1 PANEL,BODY,VEHICULA Fits: M996, M996A1, M997, M997A1, M997A2	1	3 in stock $387.99our price Buy online ↗
4	Plain Blind Rivet Nut NSN 5310-00-811-0966 · P/N NAS1329A3B80 NUT,PLAIN,BLIND RIV Fits: M997, M997A1, M997A2	22	We can source it
4	Plain Blind Rivet Nut NSN 5310-00-811-0966 · P/N NAS1329A3B80 NUT,PLAIN,BLIND RIV Fits: M996, M996A1	16	We can source it
5	Spring Tension Clip NSN 5340-01-271-5866 · P/N 12341798 CLIP,SPRING TENSION Fits: M996, M996A1	16	14 in stock
5	Spring Tension Clip NSN 5340-01-271-5866 · P/N 12341798 CLIP,SPRING TENSION Fits: M997, M997A1, M997A2	22	14 in stock
6	Machine Screw NSN 5305-00-995-3444 · P/N MS35207-266 SCREW,MACHINE #10-32 X 7/8 Fits: M996, M996A1	16	100 in stock
6	Machine Screw NSN 5305-00-995-3444 · P/N MS35207-266 SCREW,MACHINE #10-32 X 7/8 Fits: M997, M997A1, M997A2	22	100 in stock
7	Machine Screw NSN 5305-00-993-0190 · P/N MS35206-214 SCREW,MACHINE Fits: M997, M997A1, M997A2	22	700 in stock
7	Machine Screw NSN 5305-00-993-0190 · P/N MS35206-214 SCREW,MACHINE Fits: M996, M996A1	16	700 in stock
8	Plain Nut P/N NAS1329A4B60 NUT,PLAIN,BLIND RIV Fits: M997, M997A1, M997A2	22	Ask us
8	Plain Nut P/N NAS1329A4B60 NUT,PLAIN,BLIND RIV Fits: M996, M996A1	16	Ask us
9	Body Vehicular Panel NSN 2510-01-265-3283 · P/N 12341081-2 PANEL,BODY,VEHICULA Fits: M997, M997A1, M997A2	1	We can source it $312.23 per eachgov't list price
10	Body Vehicular Panel NSN 2510-01-265-3282 · P/N 12341082-2 PANEL,BODY,VEHICULA Fits: M996, M996A1	2	50 in stock $87.20our price Buy online ↗
10	Body Vehicular Panel NSN 2510-01-265-3281 · P/N 12341082-1 PANEL,BODY,VEHICULA Fits: M997, M997A1, M997A2	2	3 in stock $387.99our price Buy online ↗

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
