HMMWV Heater Duct and Grille, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 298

Every part in figure 298 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 9 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

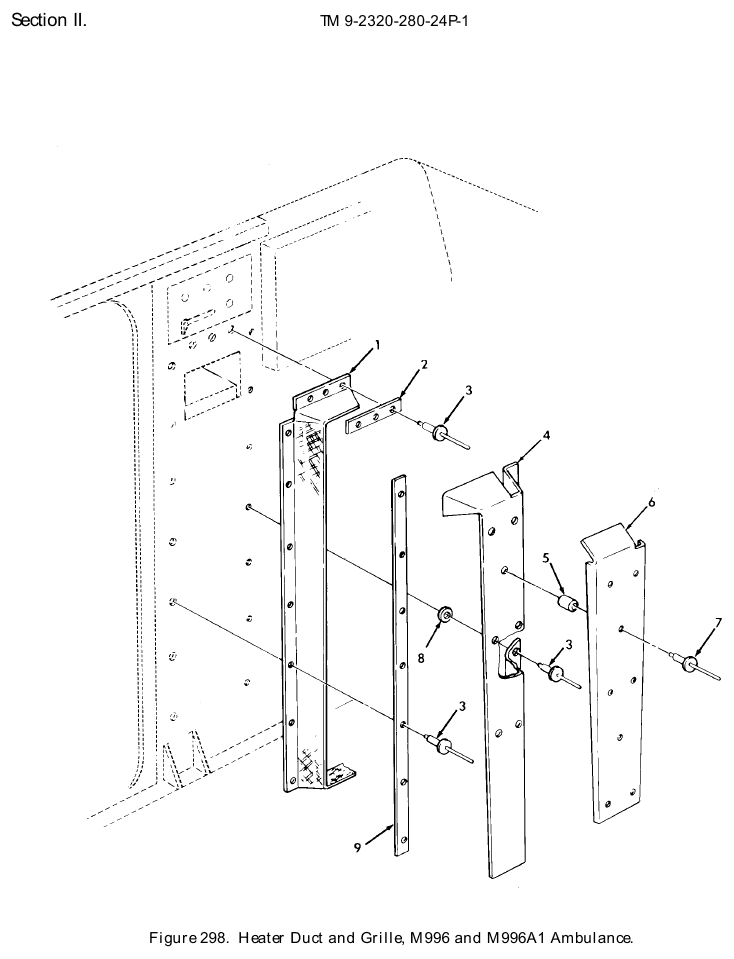

TM 9-2320-280-24P figure 298, Heater Duct and Grille, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Metal Grille NSN 5340-01-270-4415 · P/N 12341552 GRILLE,METAL Fits: M996, M996A1	1	We can source it $313.80 per eachgov't list price
2	Plate Spacer NSN 5365-01-272-6574 · P/N 12341489-2 SPACER,PLATE Fits: M996, M996A1	1	We can source it
3	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M996, M996A1	17	We can source it
4	Air Conditioning-Heating Pipe NSN 4520-01-270-5080 · P/N 12341551 PIPE,AIR CONDITIONI Fits: M996, M996A1	1	We can source it $359.15 per eachgov't list price
5	Sleeve Spacer NSN 5365-01-272-8376 · P/N 5598113 SPACER,SLEEVE Fits: M996, M996A1	8	969 in stock
6	Heater Duct Shield NSN 2540-01-270-4353 · P/N 5598104 SHIELD,HEATER DUCT Fits: M996, M996A1	1	We can source it $35–$75 eachtypical
7	Blind Rivet NSN 5320-01-223-7728 · P/N AAP-610 RIVET,BLIND 3/16 Fits: M996, M996A1	8	We can source it $25–$40 eachtypical
8	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: M996, M996A1	7	We can source it
9	Plate Spacer NSN 5365-01-273-0010 · P/N 5598107 SPACER,PLATE Fits: M996, M996A1	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
