HMMWV Heating Director Housing Assembly, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 299

Every part in figure 299 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 4 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

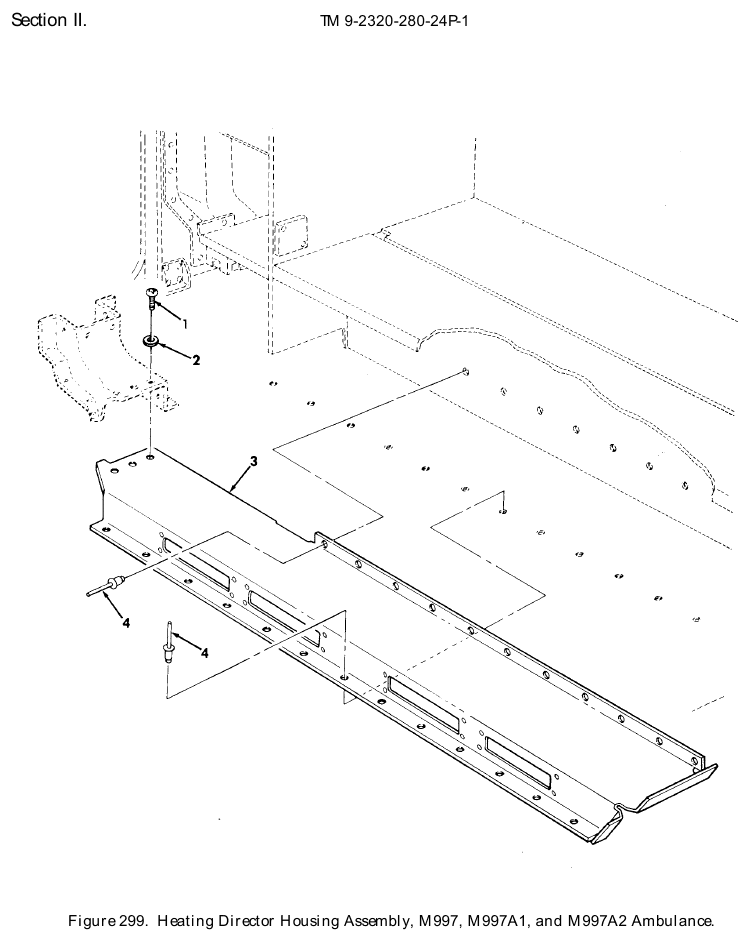

TM 9-2320-280-24P figure 299, Heating Director Housing Assembly, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-00-984-6210 · P/N WA-1429-10 SCREW,MACHINE #10-24 X 1/2 Fits: M997, M997A1, M997A2	3	694 in stock
2	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M997, M997A1, M997A2	4	909 in stock
3	Heating Dir Housing NSN 2540-01-268-7203 · P/N 12341139 HOUSING,HEATING DIR Fits: M997, M997A1, M997A2	1	We can source it $4,104.11 per eachgov't list price
4	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	24	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
