HMMWV NBC Piping for # 4 & 5 Heaters, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 305

Every part in figure 305 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 10 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

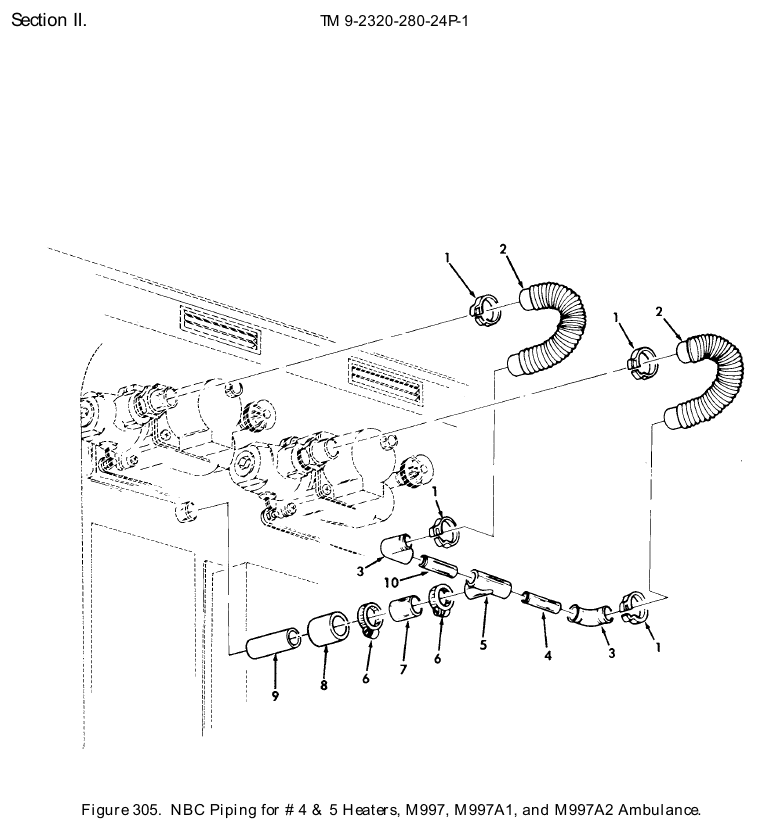

TM 9-2320-280-24P figure 305, NBC Piping for # 4 & 5 Heaters, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Hose Clamp NSN 4730-01-382-3165 · P/N 12341606-2 CLAMP,HOSE Fits: M997, M997A1, M997A2	4	40 in stock
2	Air Duct Hose NSN 4720-01-265-3239 · P/N 12341862 HOSE,AIR DUCT Fits: M997, M997A1, M997A2	2	203 in stock $41.48our price Buy online ↗
3	Tube Elbow NSN 4730-01-265-3166 · P/N 12341583 ELBOW,TUBE Fits: M997, M997A1, M997A2	2	We can source it
4	Pvc Make From Pipe Tubing P/N SF-5597223 TUBING,PVC MAKE FROM PIPE,P/N D1785,4.38 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
5	Pipe Tee NSN 4730-00-476-7127 · P/N 12341584 TEE,PIPE Fits: M997, M997A1, M997A2	1	We can source it
6	Hose Clamp NSN 4730-01-322-9160 · P/N NAS1922-0150-1 CLAMP,HOSE Fits: M997, M997A1, M997A2	2	We can source it
7	Tubing Straight Connector NSN 4730-01-265-3284 · P/N SF5597744 CONNECTOR,TUBING,ST Fits: M997, M997A1, M997A2	1	We can source it
8	Pipe Coupling NSN 4730-00-476-5859 · P/N 12341585 COUPLING,PIPE Fits: M997, M997A1, M997A2	1	We can source it
9	Tubing Make From Pipe P/N SF5598134 TUBING MAKE FROM PIPE,P/N D1785, 3.03 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
10	Pipe Straight Make From Pipe P/N SF5597216 PIPE STRAIGHT MAKE FROM PIPE,P/N D1785,2 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
