HMMWV NBC Heater and Mounting Hardware, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 311

Every part in figure 311 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 18 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

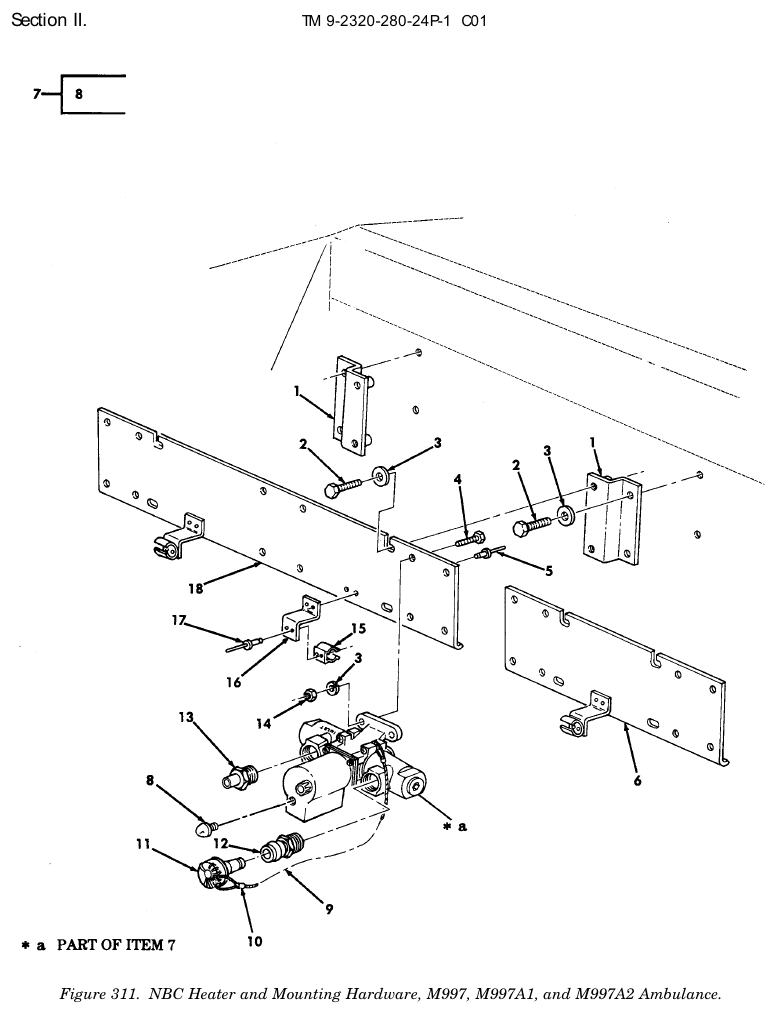

TM 9-2320-280-24P figure 311, NBC Heater and Mounting Hardware, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Mounting Bracket NSN 5340-01-272-7712 · P/N 12341863 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	4	We can source it $25–$55 eachtypical
2	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M997, M997A1, M997A2	24	471 in stock
3	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M997, M997A1, M997A2	36	4,285 in stock
4	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N B1821BH025C088N SCREW,CAP,HEXAGON H 1/4-20 X 7/8 Fits: M997, M997A1, M997A2	20	We can source it
5	Blind Rivet NSN 5320-00-083-5009 · P/N ADS43 RIVET,BLIND 1/8 DIA, .126-.187 GRIP Fits: M997, M997A1, M997A2	6	641 in stock
6	Mounting Plate NSN 5340-01-271-1954 · P/N 12341814 PLATE,MOUNTING,GROM R.H Fits: M997, M997A1, M997A2	1	117 in stock $170.72 per eachgov't list price
7	Air Electric Filter Unit Heater NSN 4240-00-807-6856 · P/N E5-19-1782 HEATER,AIR,ELECTRIC Fits: M997, M997A1, M997A2	7	776 in stock $650.00our price Buy online ↗
8	Indicator Light NSN 6210-00-578-7970 · P/N 8-1930-0112-912 LIGHT,INDICATOR Fits: M997, M997A1, M997A2	1	We can source it $532.07 per eachgov't list price
9	Wire Make From Rope Wire Rope P/N 5597768 ROPE,WIRE MAKE FROM ROPE,WIRE,P/N MIL-W-83420/2-002,14 INCHES LONG Fits: M997, M997A1, M997A2	7	Ask us
10	Wire Rope Ferrule NSN 4030-01-272-7573 · P/N 5597769 FERRULE,WIRE ROPE Fits: M997, M997A1, M997A2	14	We can source it
11	Orifice a Connector NSN 4240-00-007-9453 · P/N B5-19-1829 CONNECTOR,ORIFICE A Fits: M997, M997A1, M997A2	7	We can source it $25–$40 eachtypical
12	Quick Disconnect Coupling Half NSN 4730-01-270-9652 · P/N 12341414 COUPLING HALF,QUICK Fits: M997, M997A1, M997A2	7	We can source it $65–$105 eachtypical
13	Straight Pipe to Hose Adapter NSN 4730-00-808-5090 · P/N B5-19-1676-1 ADAPTER,STRAIGHT,PI Fits: M997, M997A1, M997A2	7	We can source it $25–$60 eachtypical
14	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,PLAIN,HEXAGON 1/4-20 Fits: M997, M997A1, M997A2	20	570 in stock
15	Spring Tension Clip NSN 5340-01-282-1115 · P/N M24066-2-354 CLIP,SPRING TENSION Fits: M997, M997A1, M997A2	3	We can source it $40–$85 eachtypical
16	Double Angle Bracket NSN 5340-01-280-5985 · P/N 5598124 BRACKET,DOUBLE ANGL Fits: M997, M997A1, M997A2	3	We can source it $30–$70 eachtypical
17	Blind Rivet NSN 5320-00-083-5009 · P/N M24243/1-A403 RIVET,BLIND 1/8 DIA., 0.126-.187 GRIP Fits: M997, M997A1, M997A2	6	641 in stock
18	Mounting Plate NSN 5340-01-271-1955 · P/N 12341813 PLATE,MOUNTING,GROM L.H Fits: M997, M997A1, M997A2	1	We can source it $139.42 per eachgov't list price

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
