HMMWV NBC Heater and Mounting Hardware, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 312

Every part in figure 312 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 9 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

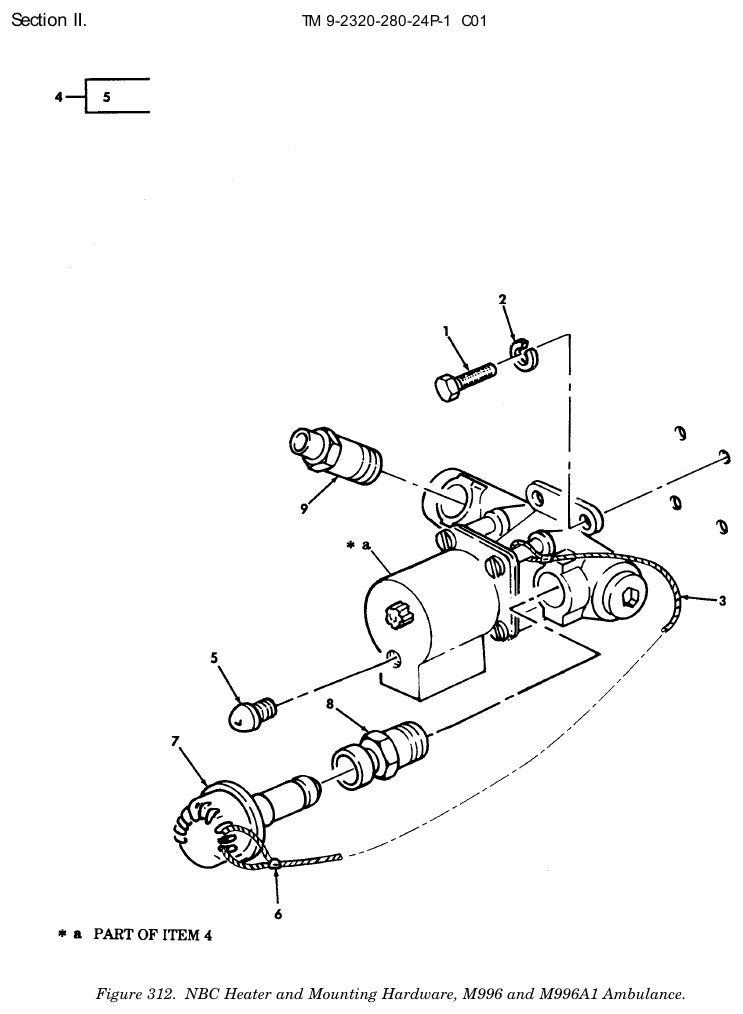

TM 9-2320-280-24P figure 312, NBC Heater and Mounting Hardware, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M996, M996A1	20	559 in stock
2	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M996, M996A1	20	2,325 in stock
3	Wire Make From Rope Wire Rope P/N 5597768 ROPE,WIRE MAKE FROM ROPE,WIRE,P/N MIL-W-83240/2-002,14 INCHES LONG Fits: M996, M996A1	1	Ask us
4	Air Electric Filter Unit Heater NSN 4240-00-807-6856 · P/N E5-19-1782 HEATER,AIR,ELECTRIC Fits: M996, M996A1	5	776 in stock $650.00our price Buy online ↗
5	Indicator Light NSN 6210-00-578-7970 · P/N 8-1930-0112-912 LIGHT,INDICATOR Fits: M996, M996A1	1	We can source it $532.07 per eachgov't list price
6	Wire Rope Ferrule NSN 4030-01-272-7573 · P/N 5597769 FERRULE,WIRE ROPE Fits: M996, M996A1	10	We can source it
7	Orifice a Connector NSN 4240-00-007-9453 · P/N B5-19-1829 CONNECTOR,ORIFICE A Fits: M996, M996A1	5	We can source it $25–$40 eachtypical
8	Quick Disconnect Coupling Half NSN 4730-01-270-9652 · P/N 12341414 COUPLING HALF,QUICK Fits: M996, M996A1	5	We can source it $65–$105 eachtypical
9	Straight Pipe to Hose Adapter NSN 4730-00-808-5090 · P/N B5-19-1676-1 ADAPTER,STRAIGHT,PI Fits: M996, M996A1	5	We can source it $25–$60 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
