HMMWV Winch Assembly, Mounting Hardware, and Related Parts TM 9-2320-280-24P · Fig. 313

Every part in figure 313 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 20 Hoist, Winch, Capstan, Windlass, Power Control Unit, and: 24 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

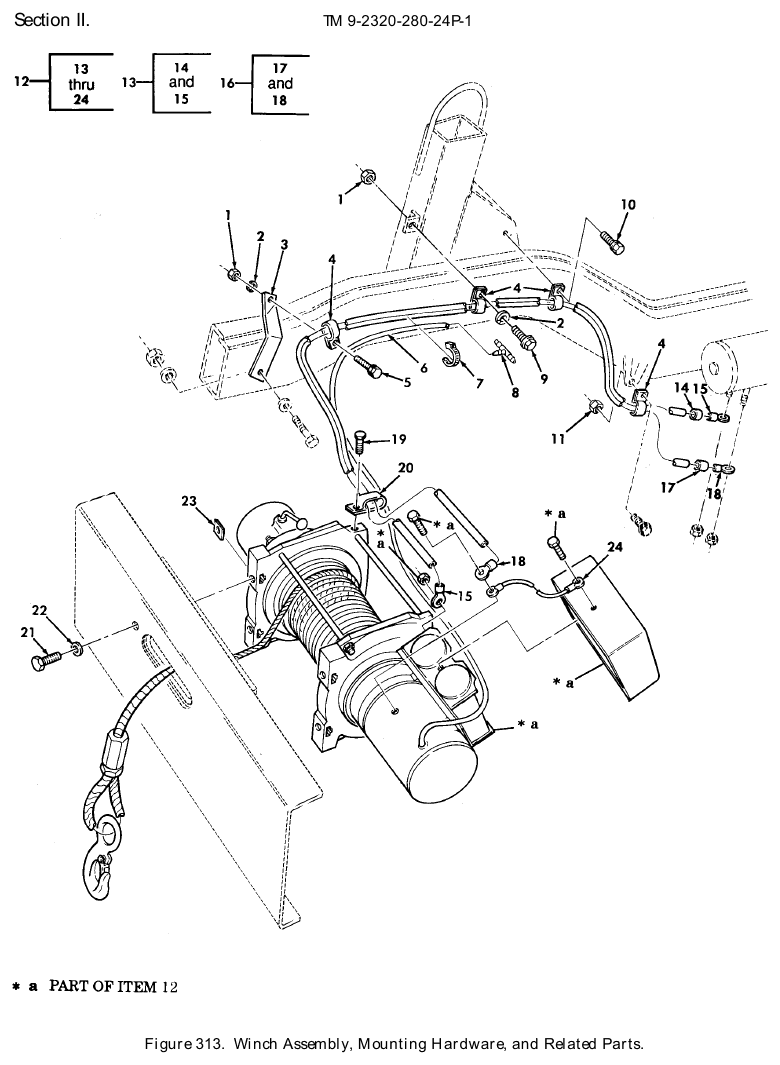

TM 9-2320-280-24P figure 313, Winch Assembly, Mounting Hardware, and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Hexagon Nut NSN 5310-00-905-0762 · P/N MS51967-3 NUT,PLAIN,HEXAGON 1/4-20 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	We can source it
2	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	4,285 in stock
3	Double Angle Bracket NSN 5340-01-266-9173 · P/N 12338481 BRACKET,DOUBLE ANGL Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
4	Loop Clamp NSN 5340-00-438-1833 · P/N 7721654 CLAMP,LOOP Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	4	We can source it
5	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
6	Tubing P/N CPR104420-1-70 TUBING,NONMETALLIC MAKE FROM TUBING,P/N CPR104420-1,70 INCHES LONG Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	Ask us
7	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	4	198 in stock
8	Hose Tee NSN 4730-01-003-5105 · P/N 1064X4 TEE,HOSE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	5 in stock
9	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	471 in stock
10	Tapping Screw NSN 5305-00-191-3640 · P/N MS51851-85 SCREW,TAPPING 1/4-20 X 5/8 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
11	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	570 in stock
12	Drum Vehicle Winch P/N W6000HMV WINCH,DRUM,VEHICLE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	Ask us
13	Cable Assy P/N 15847 CABLE ASSY,ELECTRIC MAKE FROM WIRE,P/N M13486/1-11, 77 INCHES LONG Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	Ask us
14	Electrical Insulation Sleeving NSN 5970-00-827-6566 · P/N CRN1RED INSULATION SLEEVING RED Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
15	Lug Terminal NSN 5940-01-170-4956 · P/N 8689221 TERMINAL,LUG Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	We can source it
16	Cable Assy Electric Make From P/N 15848 CABLE ASSY ELECTRIC MAKE FROM WIRE, P/N M13486/1-11,87.5 INCHES LONG Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	Ask us
17	Electrical Insulation Sleeving NSN 5970-00-221-5301 · P/N RESINITEEP69C INSULATION SLEEVING BLACK Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
18	Lug Terminal NSN 5940-00-520-2447 · P/N 7064829 TERMINAL,LUG Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	5 in stock
19	Tapping Screw NSN 5305-01-210-2309 · P/N 8548 SCREW,TAPPING #10-24 X 3/8 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	We can source it
20	Loop Clamp NSN 5340-00-926-5449 · P/N MS21334-28 CLAMP,LOOP Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	We can source it
21	Machine Bolt NSN 5306-01-203-2637 · P/N MS35764-851 BOLT,SELF-LOCKING 7/16-14 X 1.50 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	4	We can source it $30–$65 eachtypical
22	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	4	170 in stock
23	Plain Square Nut NSN 5310-00-982-4939 · P/N MS27040-13 NUT,PLAIN,SQUARE 7/16-14 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	4	We can source it $30–$60 eachtypical
24	Electrical Lead NSN 6150-00-242-4885 · P/N M83413/8-A05BD LEAD ELECTRICAL Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
