HMMWV Winch Assembly TM 9-2320-280-24P · Fig. 314

Every part in figure 314 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2001 Hoist, Capstan, Windlass, Crane or Winch Assembly: 40 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

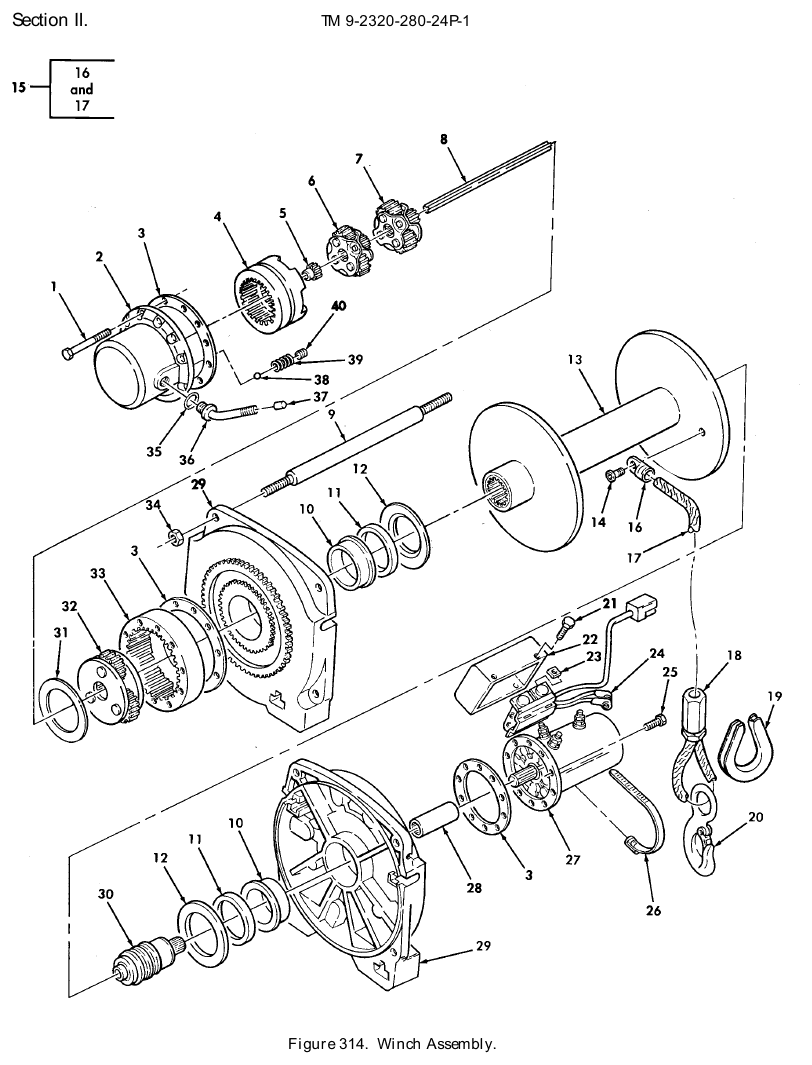

TM 9-2320-280-24P figure 314, Winch Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Socket Head Screw NSN 5305-01-211-3101 · P/N 13850 SCREW,CAP,SOCKET HE #10-24 X 2.25 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	10	We can source it
2	Shifter Winch Housing NSN 2590-01-329-9910 · P/N 16013 HOUSING,SHIFTER,WIN Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	4 in stock $175.84 per eachgov't list price
3	Gasket NSN 5330-01-211-0717 · P/N 13848 GASKET Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	3	8 in stock
4	Internal Gear NSN 3020-01-209-4603 · P/N 13839 GEAR,INTERNAL Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	6 in stock $128.41 per eachgov't list price
5	Spur Gear NSN 3020-01-209-4606 · P/N 13874 GEAR,SPUR Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	2 in stock $25–$55 eachtypical
6	Winch Carrier Assembly NSN 2590-01-185-7949 · P/N 14401 CARRIER ASSEMBLY,WI Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	3 in stock $110.83 per assemblygov't list price
7	Planetary Gear Unit NSN 3020-01-185-7948 · P/N 15654 PLANETARY GEAR UNIT Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	10 in stock $124.79 per assemblygov't list price
8	Straight Shaft NSN 3040-01-185-3201 · P/N 15597 SHAFT,STRAIGHT Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	3 in stock
9	Shouldered Shaft NSN 3040-01-185-8011 · P/N 18138 SHAFT,SHOULDERED Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	We can source it $2,458.56 per eachgov't list price
10	Drum Bushing NSN 5365-01-216-1166 · P/N 15598 BUSHING,DRUM Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	We can source it
11	Plain Encased Seal NSN 5330-01-216-0288 · P/N 15668 SEAL,PLAIN ENCASED Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	3 in stock $60–$100 eachtypical
12	Washer Thrust Bearing NSN 3120-01-377-5220 · P/N 18545 BEARING,WASHER,THRU Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	We can source it $600.73 per eachgov't list price
13	Cable Reel NSN 2590-01-330-6102 · P/N 15664 REEL,CABLE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it $775.69 per eachgov't list price
14	Cap Socket Head Screw NSN 5305-01-211-3100 · P/N 16064 SCREW,CAP,SOCKET HE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
15	Wire Rope Assembly Set NSN 4010-01-315-4179 · P/N 15667 WIRE ROPE ASSEMBLY 3/8 INCH DIA 100 FT LONG Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	1 in stock $426.73 per eachgov't list price
16	Rope Swaging Terminal NSN 4030-01-210-0691 · P/N 16464 TERMINAL,WIRE ROPE, Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it $30–$65 eachtypical
17	Wire Rope NSN 4010-01-231-5075 · P/N 21451 ROPE,WIRE 3/8 INCH DIA. 100 FT LONG Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	83 in stock
18	Wire Rope Saddled Clamp NSN 4030-00-237-8741 · P/N MS16843-5 CLAMP,WIRE ROPE,THR Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	6 in stock $25–$50 eachtypical
19	Rope Thimble NSN 4030-01-256-0471 · P/N G-408-3/8 THIMBLE,ROPE WIRE ROPE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
20	Hoist Hook NSN 4030-01-209-7047 · P/N 21781 HOOK,HOIST 7/16 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	1 in stock $177.64 per eachgov't list price
21	Machine Screw NSN 5305-01-210-6248 · P/N 8763 SCREW,MACHINE #10-24 X 3/8 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	3	We can source it
22	Solenoid Housing NSN 2590-01-192-3021 · P/N 15849 HOUSING,SOLENOID Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
23	Sheet Spring Nut NSN 5310-01-138-2605 · P/N 8762 NUT,SHEET SPRING #10-24 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	3	We can source it
24	Control Assembly NSN 2590-01-185-3116 · P/N 15655 CONTROL ASSEMBLY,WI Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	3 in stock
25	Cap Socket Head Screw NSN 5305-01-210-4967 · P/N 980074 5553 SCREW,CAP,SOCKET HE #10-24 X 3/4 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	10	We can source it $25–$55 eachtypical
26	Clamp NSN 5342-01-205-2519 · P/N 6005 CLAMP Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it $25–$40 eachtypical
27	Direct Current Motor NSN 6105-01-185-3187 · P/N 15665 MOTOR,DIRECT CURREN Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it $1,670.29 per eachgov't list price
28	Gear Coupling Assembly NSN 3040-01-209-3376 · P/N 16554 COUPLING ASSEMBLY,G Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	6 in stock
29	Winch Support NSN 3950-01-329-9890 · P/N 18136 SUPPORT,WINCH Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	We can source it
30	Winch Brake Assembly NSN 2590-01-185-7947 · P/N 15663 BRAKE ASSEMBLY,WINC Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	1 in stock $1,144.99 per assemblygov't list price
31	Washer Thrust Bearing NSN 3120-01-306-3577 · P/N 13826 BEARING,WASHER,THRU Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
32	Winch Carrier Assembly NSN 2590-01-185-3115 · P/N 26781 CARRIER ASSEMBLY,WI Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	8 in stock $85–$145 per assemblytypical
33	Internal Gear NSN 3020-01-210-1365 · P/N 16014 GEAR,INTERNAL Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it $101.20 per assemblygov't list price
34	Self-Locking Hexagon Nut NSN 5310-01-213-4174 · P/N 6779 NUT,SELF-LOCKING,HE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	6	We can source it
35	O-Ring NSN 5331-00-984-3750 · P/N 2-016 N674-7 O-RING Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
36	Manual Control Lever NSN 3040-01-209-3409 · P/N 21880 LEVER,MANUAL CONTRO Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it $325.85 per eachgov't list price
37	Knob NSN 5355-01-211-6991 · P/N 15604 KNOB Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	9 in stock
38	Bearing Ball NSN 3110-00-100-6162 · P/N MS19059-2410 BALL,BEARING Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
39	Helical Compression Spring NSN 5360-01-211-3163 · P/N 15634 SPRING,HELICAL,COMP Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it $30–$65 eachtypical
40	Setscrew NSN 5305-01-456-6358 · P/N 9416402 SETSCREW #10-24 X 1/4 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it $1,176.66 per eachgov't list price

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
