HMMWV Winch Control, Storage Box, and Mounting Hardware TM 9-2320-280-24P · Fig. 315

Every part in figure 315 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2001 Hoist, Capstan, Windlass, Crane or Winch Assembly: 15 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

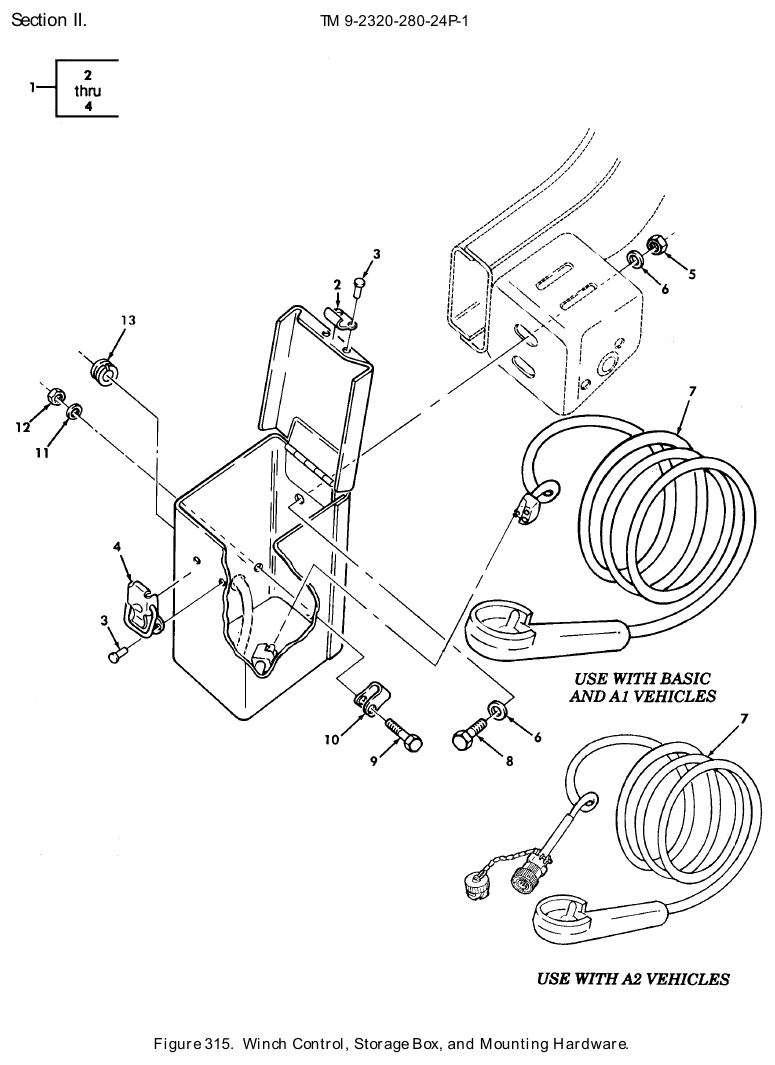

TM 9-2320-280-24P figure 315, Winch Control, Storage Box, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Box NSN 2540-01-354-4291 · P/N 12338489-1 BOX,ACCESSORIES STO USBL EFF 100, 000 AND ABOVE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
1	Accessories Stowage Box NSN 2540-01-209-6838 · P/N 12338489 BOX,ACCESSORIES STO USBL EFF 1 THRU 99,999 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	12 in stock $158.27 per assemblygov't list price
2	Catch Strike NSN 5340-01-195-8057 · P/N 14L15-1-1XX STRIKE,CATCH Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it $25–$45 eachtypical
3	Blind Rivet NSN 5320-00-899-0981 · P/N AD42BS RIVET,BLIND 1/8 DIA.,.063-.125 GRIP Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	4	108 in stock
4	Storage Box Winch Latch NSN 5340-01-209-6874 · P/N 51L3-1X1AB LATCH,STORAGE BOX,W Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it $30–$60 eachtypical
5	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	1,713 in stock
6	Flat Washer NSN 5310-01-121-1703 · P/N 2436165 WASHER,FLAT 1/2 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	4	2,218 in stock
7	Manual Handle NSN 2590-01-448-1105 · P/N 12447171 HANDLE,MANUAL Fits: All A2 models, plus M1123	1	161 in stock $120.00our price Buy online ↗
7	Winch Control Handle NSN 2590-01-214-1566 · P/N 12338495 CONTROL HANDLE,WINC Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	20 in stock $638.77 per eachgov't list price
8	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N B1821BH050C150N SCREW,CAP,HEXAGON H 1/2-13 X 1.50 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	2,205 in stock
9	Cap Socket Head Screw NSN 5305-00-988-7614 · P/N MS16995-50 SCREW,CAP,SOCKET HE 1/4-20 X 3/4 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
10	Loop Clamp NSN 5340-00-809-1492 · P/N CMDX2-3PT573036 CLAMP,LOOP Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	109 in stock
11	Lock Washer NSN 5310-00-274-8715 · P/N MS35338-63 WASHER,LOCK 1/4 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
12	Plain Hexagon Nut NSN 5310-00-905-0762 · P/N MS51967-3 NUT,PLAIN,HEXAGON 1/4-20 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
13	Nonmetallic Grommet NSN 5325-00-174-9332 · P/N MS35489-48 GROMMET,NONMETALLIC 11/16 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
