HMMWV Two Man Crew Soft Top Enclosure, Top Assembly, Rear Curtain, and Door Assemblies TM 9-2320-280-24P · Fig. 316

Every part in figure 316 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 22 Body, Chassis, and Hull Accessory Items: 38 lines, 29 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

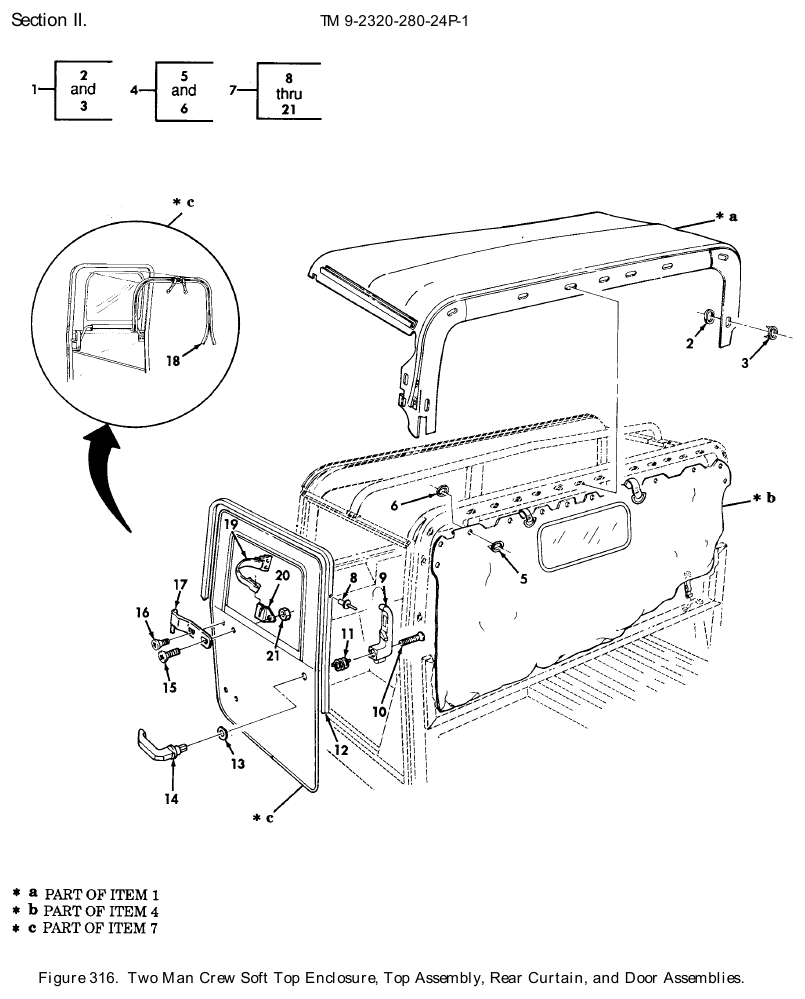

TM 9-2320-280-24P figure 316, Two Man Crew Soft Top Enclosure, Top Assembly, Rear Curtain, and Door Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Fitted Vehicular Body Cover NSN 2540-01-450-4017 · P/N 12340736-18 COVER,FITTED,VEHICU CAMOUFLAGE PART OF KIT P/N 57K3496 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	33 in stock $641.50 per eachgov't list price
1	Fitted Vehicular Body Cover NSN 2540-01-450-4021 · P/N 12340736-13 COVER,FITTED,VEHICU WHITE PART OF KIT P/N 57K0162 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	We can source it $288.96 per eachgov't list price
1	Fitted Vehicular Body Cover NSN 2540-01-314-2786 · P/N 12340736-7 COVER,FITTED,VEHICU PART OF KIT P/N 57K0112 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	17 in stock $485.10our price Buy online ↗
1	Fitted Vehicular Body Cover NSN 2540-01-330-6173 · P/N 12340736-8 COVER,FITTED,VEHICU TAN PART OF KIT P/N 57K0156 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	16 in stock $995.00our price Buy online ↗
2	Turnbutton Fastener Clinch Plate NSN 5325-00-371-8108 · P/N BS 78505 .CLINCH PLATE,TURNBU Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	23	We can source it
3	Socket NSN 5325-00-281-8642 · P/N 400C0MM0NSENSETY SOCKET,TURNBUTTON F PE UOC:AVY,A13,A14,BVY,HVY,H13,H14,H21, H28,NNN Fits: All models	23	We can source it
4	VE Curtain Assembly NSN 2540-01-450-4018 · P/N 12340737-6 CURTAIN ASSEMBLY,VE CAMOUFLAGE PART OF KIT P/N 57K3496 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	18 in stock $255.39 per assemblygov't list price
4	Fitted Vehicular Body Cover NSN 2540-01-407-9241 · P/N 12340737-3 COVER,FITTED,VEHICU WHITE PART OF KIT P/N 57K0162 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	1 in stock $335.68 per eachgov't list price
4	Vehicular Curtain NSN 2540-01-330-6171 · P/N 12340737-2 CURTAIN,VEHICULAR TAN PART OF KIT P/N 57K0156 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	16 in stock $283.00our price Buy online ↗
4	Vehicular Curtain Assembly NSN 2540-01-200-8393 · P/N 12340737 CURTAIN,VEHICULAR GREEN PART OF KIT P/N 57K0112 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	13 in stock $35–$75 per assemblytypical
5	Turnbutton Fastener Socket NSN 5325-00-281-8643 · P/N 91-BS-78403 SOCKET,TURNBUTTON F Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	12	376 in stock
6	Turnbutton Fastener Clinch Plate NSN 5325-00-371-8108 · P/N BS 78505 .CLINCH PLATE,TURNBU Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	12	We can source it
7	Vehicular Door NSN 2510-01-407-6037 · P/N 12340231-5 DOOR,VEHICULAR L.H.,WHITE PART OF KIT P/N 57K0162 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	1 in stock $310.39 per eachgov't list price
7	Vehicular Door NSN 2510-01-407-6036 · P/N 12340231-6 DOOR,VEHICULAR R.H.,WHITE PART OF KIT P/N 57K0162 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	2 in stock $536.42 per eachgov't list price
7	Vehicular Door NSN 2510-01-450-5480 · P/N 12340231-10 DOOR,VEHICULAR CAMOUFLAGE L.H. PART OF KIT P/N 57K3496 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	153 in stock $276.87 per eachgov't list price
7	Vehicular Door NSN 2510-01-450-5479 · P/N 12340231-11 DOOR,VEHICULAR CAMOUFLAGE R.H. PART OF KIT P/N 57K3496 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	44 in stock $269.84 per eachgov't list price
7	Vehicular Door NSN 2510-01-330-6174 · P/N 12340231-3 DOOR,VEHICULAR TAN L.H. PART OF KIT P/N 57K0156 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	251 in stock $285.00our price Buy online ↗
7	Vehicular Door NSN 2510-01-330-6175 · P/N 12340231-4 DOOR,VEHICULAR TAN R.H. PART OF KIT P/N 57K0156 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	168 in stock $319.35 per eachgov't list price
7	Vehicular Door Assembly NSN 2510-01-189-9724 · P/N 5581348 DOOR,VEHICULAR L.H. GREEN PART OF KIT P/N 57K0112 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	193 in stock
7	Vehicular Door NSN 2510-01-189-9725 · P/N 12340231-2 DOOR,VEHICULAR R.H. GREEN PART OF KIT P/N 57K0112 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	10 in stock
8	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1-A404 RIVET,BLIND 1/8 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	18	132 in stock
9	Door Vehicular Handle NSN 2540-01-200-1994 · P/N 12301363-1 HANDLE,DOOR,VEHICUL INSIDE,R.H PART OF KIT P/N 5705618 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	45 in stock
9	Door Vehicular Handle NSN 2540-01-203-7721 · P/N 12301363-2 HANDLE,DOOR,VEHICUL INSIDE,L.H PART OF KIT P/N 5705619 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	40 in stock
10	Machine Screw NSN 5305-00-071-1327 · P/N MS51960-70 SCREW,MACHINE 10-32 X 1.25 PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	92 in stock
11	Helical Torsion Spring NSN 5360-01-315-7211 · P/N 12356764-2 SPRING,HELICAL,TORS R.H. PART OF KIT P/N 5705618 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	12 in stock
11	Helical Torsion Spring NSN 5360-01-315-7212 · P/N 12356764-1 SPRING,HELICAL,TORS L.H. PART OF KIT P/N 5705619 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	6 in stock
12	Seal P/N 21022103-150IN SEAL,NONMETALLIC SP MAKE FROM SEAL,P/N 21022103,150 INCHES LONG Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	Ask us
13	Flat Washer NSN 5310-01-205-9056 · P/N 5581321 WASHER,FLAT 5/8 PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	We can source it
14	Door Vehicular Handle NSN 2540-01-200-1995 · P/N 12301365 HANDLE,DOOR,VEHICUL PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	29 in stock
15	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	We can source it
16	Machine Screw NSN 5305-00-071-1315 · P/N MS51957-79 SCREW,MACHINE 1/4-20 X 1/2 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	3	We can source it
17	Butt Hinge Leaf NSN 5340-01-205-9021 · P/N 12340193-1 LEAF,BUTT HINGE L.H Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	1 in stock $25–$40 eachtypical
17	Butt Hinge Leaf NSN 5340-01-205-9022 · P/N 12340193-2 LEAF,BUTT HINGE R.H Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	We can source it
18	Slide Interlocking Fastener NSN 5325-01-357-1080 · P/N 12340212-3 FASTENER,SLIDE,INTE Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	124 in stock $25–$50 eachtypical
19	Strap Fastener Loop NSN 5340-01-254-7189 · P/N 12340201 LOOP,STRAP FASTENER Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	17 in stock $25.99our price Buy online ↗
20	Strap Fastener Loop NSN 5340-01-256-9318 · P/N 41256040 LOOP,STRAP FASTENER L.H Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	19 in stock
20	Strap Fastener Loop NSN 5340-01-255-9919 · P/N 5595217 LOOP,STRAP FASTENER R.H Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	32 in stock
21	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	4	626 in stock

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
