HMMWV Two Man Crew Soft Top Enclosure, Bow, and Mounting Components TM 9-2320-280-24P · Fig. 317

Every part in figure 317 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2201 Canvas, Rubber or Plastic Items: 13 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

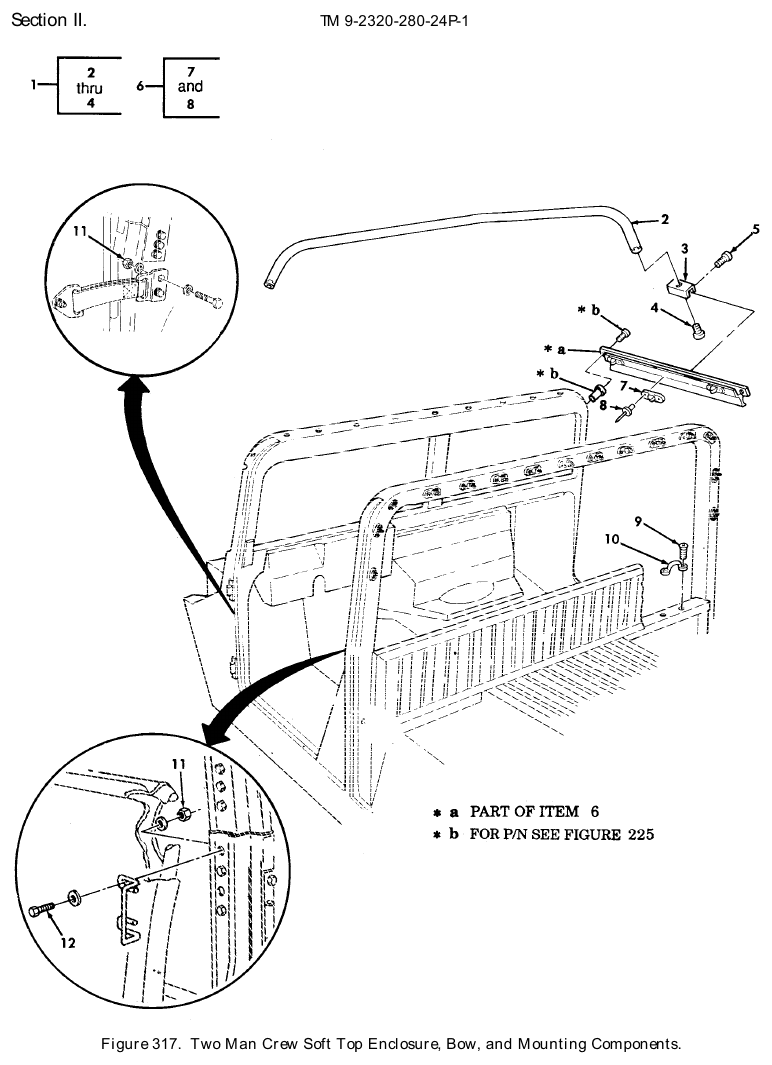

TM 9-2320-280-24P figure 317, Two Man Crew Soft Top Enclosure, Bow, and Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Top Bow NSN 2540-01-199-6759 · P/N 12340682 BOW,VEHICULAR TOP GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 57K0112 PART OF KIT P/N 57K0156 PART OF KIT P/N 57K0162 PART OF KIT P/N 57K3496 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	588 in stock $97.89our price Buy online ↗
2	Vehicular Top Bow NSN 2540-01-206-4115 · P/N 12340713 BOW,VEHICULAR TOP Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	27 in stock $100.99 per eachgov't list price
3	Retaining Strap NSN 5340-01-204-3862 · P/N 12340239 STRAP,RETAINING Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	358 in stock $25–$40 eachtypical
4	Cap Socket Head Screw NSN 5305-01-203-8346 · P/N 5581439 SCREW,CAP,SOCKET HE 1/4-20 X 3/8 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	300 in stock
5	Machine Screw NSN 5305-00-989-7434 · P/N MS35207-263 SCREW,MACHINE #10-32 X 1/2 PART OF KIT P/N 57K0112 PART OF KIT P/N 57K0156 PART OF KIT P/N 57K0162 PART OF KIT P/N 57K3496 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	4	We can source it
6	Handrail NSN 2590-01-198-2895 · P/N 5581371 HANDRAIL,VEHICULAR L.H.,GREEN, (PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 57K0112 PART OF KIT P/N 57K0156 PART OF KIT P/N 57K0162 PART OF KIT P/N 57K3496 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	35 in stock $201.34 per assemblygov't list price
6	Handrail NSN 2590-01-197-4898 · P/N 5581372 HANDRAIL,VEHICULAR R.H.,GREEN, (PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 57K0112 PART OF KIT P/N 57K0156 PART OF KIT P/N 57K0162 PART OF KIT P/N 57K3496 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	21 in stock $125.62 per assemblygov't list price
7	Turnbutton Fastener Stud NSN 5325-00-823-5999 · P/N XB78323-05001 STUD,TURNBUTTON FAS L.H. AND R.H Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	6	22 in stock
8	Blind Rivet NSN 5320-00-083-5009 · P/N M24243/1-A403 RIVET,BLIND 1/8,L.H. AND R.H Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	12	641 in stock
9	Cap Socket Head Screw NSN 5305-01-199-3371 · P/N PL25J02P12 SCREW,CAP,SOCKET HE #10-32 X 3/4 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	4	96 in stock
10	Bow Handle NSN 5340-01-197-8673 · P/N 12338839-4 HANDLE,BOW REAR Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	14 in stock
11	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24 PART OF KIT P/N 57K0112 PART OF KIT P/N 57K0156 PART OF KIT P/N 57K0162 PART OF KIT P/N 57K3496 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	8	904 in stock
12	Machine Bolt NSN 5306-00-182-2027 · P/N AN5H10A BOLT,MACHINE PART OF KIT P/N 57K0112 PART OF KIT P/N 57K0156 PART OF KIT P/N 57K0162 PART OF KIT P/N 57K3496 BOLT,MACHINE ( 4) 317-12 BOW,VEHICULAR TOP ( 1) 317-1 COVER,FITTED,VEHICU( 1) 316-1 CURTAIN ASSEMBLY,VE( 1) 316-4 DOOR,VEHICULAR ( 1) 316-7 DOOR,VEHICULAR ( 1) 316-7 NUT,SELF-LOCKING,HE( 8) 317-11 RAIL ASSEMBLY,HAN Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	4	360 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
