HMMWV Troop Area Soft Top Enclosure, Bows, and Mounting Components TM 9-2320-280-24P · Fig. 318

Every part in figure 318 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2201 Canvas, Rubber or Plastic Items: 11 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

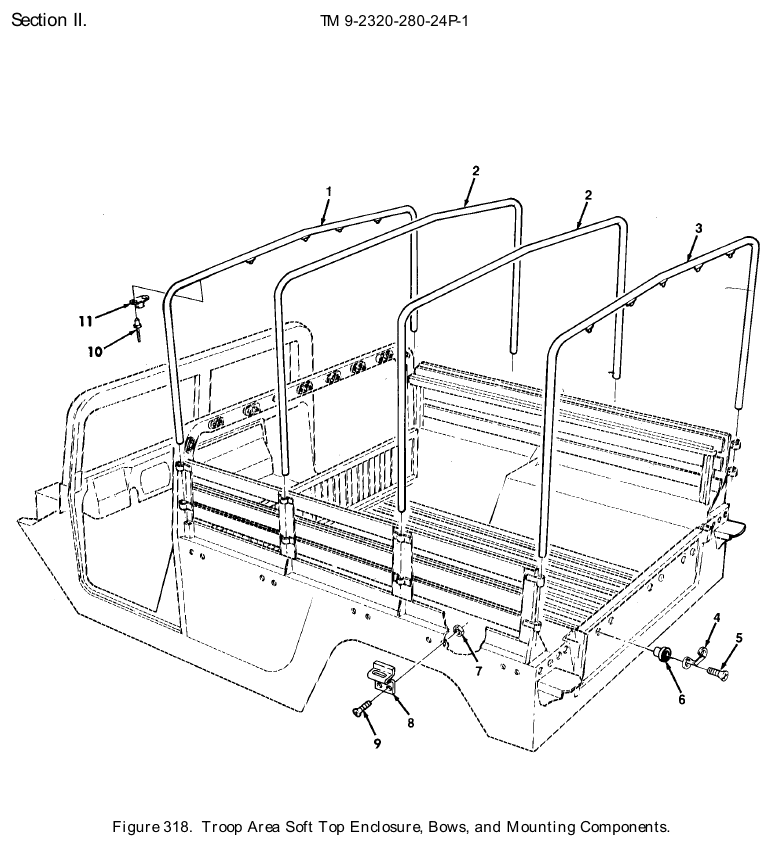

TM 9-2320-280-24P figure 318, Troop Area Soft Top Enclosure, Bows, and Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Top Bow NSN 2540-01-200-6611 · P/N 12340764-2 BOW,VEHICULAR TOP FRONT,GREEN, (PAINT TAN OR WHITE IF REQUIRED)PART OF KIT P/N 12340744 PART OF KIT P/N 57K0160 PART OF KIT P/N 57K3500 PART OF KIT P/N 57K0157 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	5 in stock $239.16 per eachgov't list price
2	Vehicular Top Bow NSN 2540-01-199-6760 · P/N 12340747 BOW,VEHICULAR TOP GREEN,(PAINT TAN OR WHITE IF REQUIRED)PART OF KIT P/N 12340744 PART OF KIT P/N 57K0160 PART OF KIT P/N 57K3500 PART OF KIT P/N 57K0157 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	3 in stock $118.73 per eachgov't list price
3	Vehicular Top Bow NSN 2540-01-199-6761 · P/N 12340764-1 BOW,VEHICULAR TOP GREEN,(PAINT TAN OR WHITE IF REQUIRED)PART OF KIT P/N 12340744 PART OF KIT P/N 57K0160 PART OF KIT P/N 57K3500 PART OF KIT P/N 57K0157 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $241.31 per eachgov't list price
4	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER PART OF KIT P/N 57K3499 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	3	1 in stock
5	Cap Socket Head Screw NSN 5305-01-199-3371 · P/N PL25J02P12 SCREW,CAP,SOCKET HE #10-32 X 3/4 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	96 in stock
6	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N 12339998-14 NUT,PLAIN,BLIND RIV #10-32 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	We can source it
7	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	20	474 in stock
8	Strap Fastener Loop NSN 5340-01-260-9027 · P/N 5593625 LOOP,STRAP FASTENER Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	10	235 in stock $9.79our price Buy online ↗
9	Machine Screw NSN 5305-01-407-7713 · P/N 160052 SCREW,MACHINE #10-32 X 5/8 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	20	4,349 in stock
10	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1-A404 RIVET,BLIND Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	20	132 in stock
11	Turnbutton Fastener Stud NSN 5325-00-823-5999 · P/N XB78323-05001 STUD,TURNBUTTON FAS Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	10	22 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
