HMMWV Troop Area Soft Top Enclosure TM 9-2320-280-24P · Fig. 319

Every part in figure 319 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2201 Canvas, Rubber or Plastic Items: 10 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

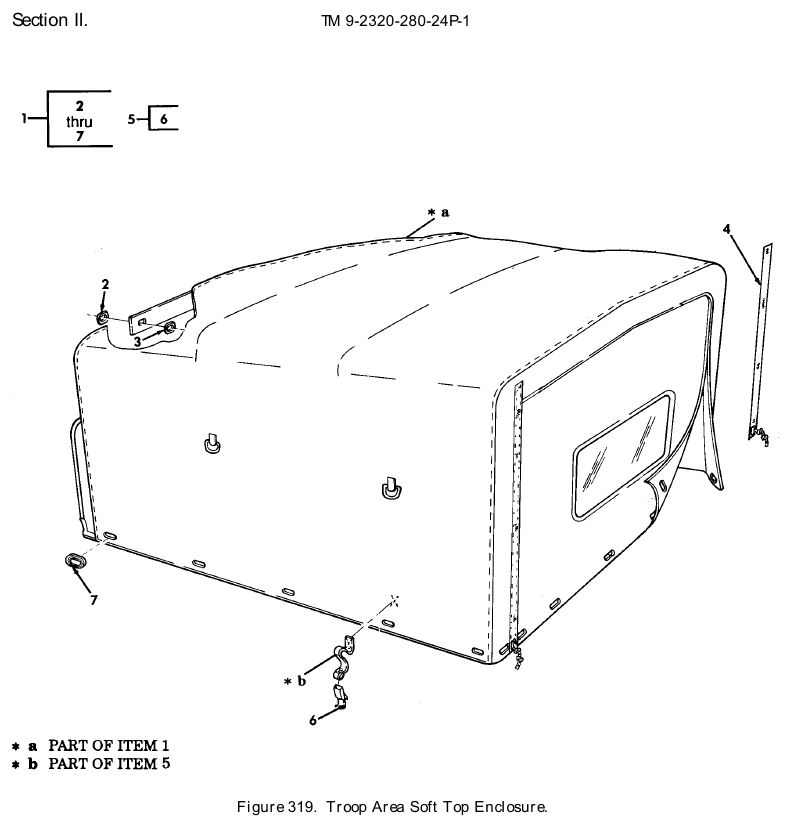

TM 9-2320-280-24P figure 319, Troop Area Soft Top Enclosure: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Truck Body Detachab Top Assembly NSN 2540-01-189-3457 · P/N 12340761 COVER,FITTED,VEHICU GREEN PART OF KIT P/N 12340744 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	3 in stock $1,324.58 per eachgov't list price
1	Fitted Vehicular Body Cover NSN 2540-01-450-4015 · P/N 12340761-9 COVER,FITTED,VEHICU CAMOUFLAGE PART OF KIT P/N 57K3500 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	16 in stock $2,026.52 per eachgov't list price
1	Fitted Vehicular Body Cover NSN 2540-01-450-7686 · P/N 12340761-3 COVER,FITTED,VEHICU WHITE PART OF KIT P/N 57K0160 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	5 in stock $644.12 per assemblygov't list price
1	Fitted Vehicular Body Cover NSN 2540-01-330-6169 · P/N 12340761-2 COVER,FITTED,VEHICU TAN PART OF KIT P/N 57K0157 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	77 in stock $385.00our price Buy online ↗
2	Turnbutton Fastener Socket NSN 5325-00-281-8643 · P/N 91-BS-78403 SOCKET,TURNBUTTON F Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	19	376 in stock
3	Turnbutton Fastener Clinch Plate NSN 5325-00-371-8108 · P/N BS 78505 .CLINCH PLATE,TURNBU Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	19	We can source it
4	Vehicular Equip Modification Kit NSN 2590-01-316-2581 · P/N 52252 MODIFICATION KIT,VE Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	4 in stock
5	Retaining Strap NSN 5340-01-414-1454 · P/N 12340517-1 STRAP,RETAINING Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	17	We can source it
6	Buckle NSN 5340-01-203-6542 · P/N 44702-10 BUCKLE Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	19 in stock
7	Nonmetallic Grommet NSN 5325-01-437-4175 · P/N 12340526 GROMMET,NONMETALLIC BOW,VEHICULAR TOP ( 1) 318-1 BOW,VEHICULAR TOP ( 2) 318-2 BOW,VEHICULAR TOP ( 1) 318-3 COVER,FITTED,VEHICU( 1) 319-1 CAMOUFLAGE,TROOP AREA ENCLOSURE BOW,VEHICULAR TOP ( 1) 318-1 BOW,VEHICULAR TOP ( 2) 318-2 BOW,VEHICULAR TOP ( 1) 318-3 COVER,FITTED,VEHICU( 1) 319-1 AREA, TAN BOW,VEHICULAR TOP ( 1) 3 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	17	We can source it $25–$55 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
