HMMWV Four Man Crew Soft Top Enclosure, Top Assembly, Rear Curtain, and Door Assemblies TM 9-2320-280-24P · Fig. 320

Every part in figure 320 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2201 Canvas, Rubber or Plastic Items: 61 lines, 49 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

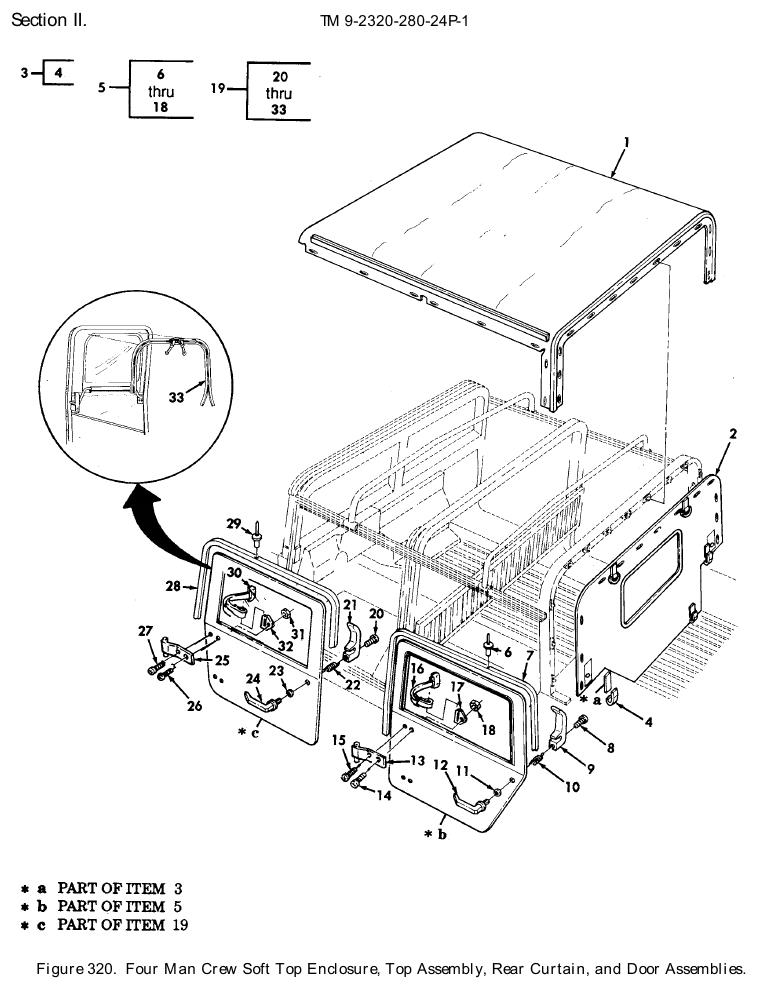

TM 9-2320-280-24P figure 320, Four Man Crew Soft Top Enclosure, Top Assembly, Rear Curtain, and Door Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Truck Body Detachab Top Assembly NSN 2540-01-189-3706 · P/N 12340676 TOP ASSEMBLY,TRUCK GREEN PART OF KIT P/N 57K0123 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	29 in stock $598.76our price Buy online ↗
1	Fitted Vehicular Body Cover NSN 2540-01-330-6177 · P/N 12340676-11 TOP ASSEMBLY,TRUCK TAN PART OF KIT P/N 57K0155 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	24 in stock $650.00our price Buy online ↗
1	Fitted Vehicular Body Cover NSN 2540-01-450-4019 · P/N 12340676-31 TOP ASSEMBLY TRUCK CAMOUFLAGE PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	22 in stock $1,025.00our price Buy online ↗
1	Fitted Vehicular Body Cover NSN 2540-01-412-2661 · P/N 12340676-21 TOP ASSEMBLY TRUCK WHITE PART OF KIT P/N 57K0161 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	4 in stock $3,676.89 per eachgov't list price
2	Curtain NSN 2540-01-314-2782 · P/N 12342475 CURTAIN,VEHICULAR GREEN PART OF KIT P/N 57K0123 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	19 in stock
2	Vehicular Curtain NSN 2540-01-450-5477 · P/N 12342475-6 CURTAIN,VEHICULAR CAMOUFLAGE PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	81 in stock $415.00our price Buy online ↗
2	Vehicular Curtain NSN 2540-01-330-6172 · P/N 12342475-1 CURTAIN,VEHICULAR TAN PART OF KIT P/N 57K0155 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	30 in stock $495.00our price Buy online ↗
2	Vehicular Curtain NSN 2540-01-413-1356 · P/N 12342475-2 CURTAIN,VEHICULAR WHITE PART OF KIT P/N 57K0161 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	1 in stock $437.03 per eachgov't list price
3	Retaining Strap NSN 5340-01-414-1454 · P/N 12340517-1 STRAP,RETAINING Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	We can source it
4	Buckle NSN 5340-01-203-6542 · P/N 44702-10 BUCKLE Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	19 in stock
5	Vehicular Door NSN 2510-01-189-3460 · P/N 12340245-1 DOOR ASSEMBLY,VEHIC R.H.,GREEN PART OF KIT P/N 57K0123 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	36 in stock
5	Vehicular Door NSN 2510-01-189-3459 · P/N 12340245-2 DOOR ASSEMBLY,VEHIC L.H.,GREEN PART OF KIT P/N 57K0123 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	34 in stock quote only
5	Vehicular Door NSN 2510-01-330-6176 · P/N 12340245-3 DOOR ASSEMBLY,VEHIC R.H.,TAN PART OF KIT P/N 57K0155 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	74 in stock $358.67our price Buy online ↗
5	Vehicular Door NSN 2510-01-330-6576 · P/N 12340245-4 DOOR ASSEMBLY,VEHIC L.H.,TAN PART OF KIT P/N 57K0155 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	90 in stock $321.48 per eachgov't list price
5	Vehicular Door NSN 2510-01-412-6761 · P/N 12340245-5 DOOR ASSEMBLY,VEHIC R.H.,WHITE PART OF KIT P/N 57K0161 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	2 in stock $779.10our price Buy online ↗
5	Vehicular Door NSN 2510-01-413-8872 · P/N 12340245-6 DOOR ASSEMBLY,VEHIC L.H.,WHITE PART OF KIT P/N 57K0161 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 1 more	1	We can source it $404.32 per eachgov't list price
5	Vehicular Door NSN 2510-01-450-5482 · P/N 12340245-7 DOOR ASSEMBLY,VEHIC R.H.,CAMOUFLAGE PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	33 in stock $299.10 per eachgov't list price
5	Vehicular Door NSN 2510-01-450-5483 · P/N 12340245-8 DOOR ASSEMBLY,VEHIC L.H.,CAMOUFLAGE PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	28 in stock $360.20 per eachgov't list price
6	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1A404 RIVET,BLIND 1/8 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	18	132 in stock
7	Seal P/N 21022013-150IN. SEAL,NONMETALLIC SP MAKE FROM SEAL,P/N 21022103,150 INCHES LONG Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	Ask us
8	Machine Screw NSN 5305-00-071-1327 · P/N MS51960-70 SCREW,MACHINE #10-32 X 1.25 PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	92 in stock
9	Door Vehicular Handle NSN 2540-01-200-1994 · P/N 5581320 HANDLE,DOOR,VEHICUL REAR,R.H. PART OF KIT P/N 5705618 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	45 in stock
9	Door Vehicular Handle NSN 2540-01-203-7721 · P/N 12301363-2 HANDLE,DOOR,VEHICUL REAR,L.H. PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	40 in stock
10	Helical Torsion Spring NSN 5360-01-315-7212 · P/N 12356764-1 SPRING,HELICAL,TORS L.H. PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	6 in stock
10	Helical Torsion Spring NSN 5360-01-315-7211 · P/N 12356764-2 SPRING,HELICAL,TORS R.H. PART OF KIT P/N 5705618 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	12 in stock
11	Flat Washer NSN 5310-01-205-9056 · P/N 5581321 WASHER,FLAT PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	We can source it
12	Door Vehicular Handle NSN 2540-01-200-1995 · P/N 12301365 HANDLE,DOOR,VEHICUL PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	29 in stock
13	Butt Hinge Leaf NSN 5340-01-205-9021 · P/N 12340193-1 LEAF,BUTT HINGE REAR, L.H Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	1 in stock $25–$40 eachtypical
13	Butt Hinge Leaf NSN 5340-01-205-9022 · P/N 12340193-2 LEAF,BUTT HINGE REAR, R.H Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	We can source it
14	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	We can source it
15	Machine Screw NSN 5305-00-071-1315 · P/N MS51957-79 SCREW,MACHINE 1/4-20 X 1/2 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	3	We can source it
16	Strap Fastener Loop NSN 5340-01-254-7189 · P/N 12340201 LOOP,STRAP FASTENER Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	17 in stock $25.99our price Buy online ↗
17	Strap Fastener Loop NSN 5340-01-256-9318 · P/N 41256040 LOOP,STRAP FASTENER L.H Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	19 in stock
17	Strap Fastener Loop NSN 5340-01-255-9919 · P/N 5595217 LOOP,STRAP FASTENER R.H Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	32 in stock
18	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4 X 20 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	570 in stock
19	Vehicular Door Assembly NSN 2510-01-189-9724 · P/N 5581348 DOOR ASSEMBLY,VEHIC GREEN,FRONT, L.H. PART OF KIT P/N 57K0123 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	193 in stock
19	Vehicular Door NSN 2510-01-450-5480 · P/N 12340231-10 DOOR,VEHICULAR CAMOUFLAGE L.H. PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	153 in stock $276.87 per eachgov't list price
19	Vehicular Door NSN 2510-01-189-9725 · P/N 5581349 DOOR,VEHICULAR GREEN,FRONT,R.H PART OF KIT P/N 57K0123 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	10 in stock
19	Vehicular Door NSN 2510-01-450-5479 · P/N 12340231-11 DOOR,VEHICULAR CAMOUFLAGE R.H. PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	44 in stock $269.84 per eachgov't list price
19	Vehicular Door NSN 2510-01-330-6174 · P/N 12340231-3 DOOR,VEHICULAR L.H.,TAN PART OF KIT P/N 57K0155 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	251 in stock $285.00our price Buy online ↗
19	Vehicular Door NSN 2510-01-330-6175 · P/N 12340231-4 DOOR,VEHICULAR R.H.,TAN PART OF KIT P/N 57K0155 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	168 in stock $319.35 per eachgov't list price
19	Vehicular Door NSN 2510-01-407-6037 · P/N 12340231-5 DOOR,VEHICULAR L.H.,WHITE PART OF KIT P/N 57K0161 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	1 in stock $310.39 per eachgov't list price
19	Vehicular Door NSN 2510-01-407-6036 · P/N 12340231-6 DOOR,VEHICULAR R.H.,WHITE PART OF KIT P/N 57K0161 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	2 in stock $536.42 per eachgov't list price
20	Machine Screw NSN 5305-00-071-1327 · P/N MS51960-70 SCREW,MACHINE #10-32 X 1.25 PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	92 in stock
21	Door Vehicular Handle NSN 2540-01-200-1994 · P/N 5581320 HANDLE,DOOR,VEHICUL R.H. PART OF KIT P/N 5705618 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	45 in stock
21	Door Vehicular Handle NSN 2540-01-203-7721 · P/N 5581319 HANDLE,DOOR,VEHICUL L.H. PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	40 in stock
22	Helical Torsion Spring NSN 5360-01-315-7212 · P/N 12356764-1 SPRING,HELICAL,TORS L.H. PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	6 in stock
22	Helical Torsion Spring NSN 5360-01-315-7211 · P/N 12356764-2 SPRING,HELICAL,TORS R.H. PART OF KIT P/N 5705618 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	12 in stock
23	Flat Washer NSN 5310-01-205-9056 · P/N 5581321 WASHER,FLAT .622 PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	We can source it
24	Door Vehicular Handle NSN 2540-01-200-1995 · P/N 12301365 HANDLE,DOOR,VEHICUL L.H. AND R.H PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	29 in stock
25	Butt Hinge Leaf NSN 5340-01-205-9021 · P/N 12340193-1 LEAF,BUTT HINGE L.H Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	1 in stock $25–$40 eachtypical
25	Butt Hinge Leaf NSN 5340-01-205-9022 · P/N 12340193-2 LEAF,BUTT HINGE R.H Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	We can source it
26	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	We can source it
27	Machine Screw NSN 5305-00-071-1315 · P/N MS51957-79 SCREW,MACHINE 1/4-20 X 1/2 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	3	We can source it
28	Seal P/N 21022103-150IN. SEAL,NONMETALLIC SP MAKE FROM SEAL,P/N 21022103,150 INCHES LONG Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	Ask us
29	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1A404 RIVET,BLIND 1/8 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	18	132 in stock
30	Strap Fastener Loop NSN 5340-01-254-7189 · P/N 12340201 LOOP,STRAP FASTENER PART OF KIT P/N 5705618 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	17 in stock $25.99our price Buy online ↗
31	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	570 in stock
32	Strap Fastener Loop NSN 5340-01-256-9318 · P/N 41256040 LOOP,STRAP FASTENER L.H Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	19 in stock
32	Strap Fastener Loop NSN 5340-01-255-9919 · P/N 5595217 LOOP,STRAP FASTENER R.H Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	32 in stock
33	Slide Interlocking Fastener NSN 5325-01-357-1080 · P/N 12340212-3 FASTENER,SLIDE,INTE Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	124 in stock $25–$50 eachtypical

Buy the 9 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
