HMMWV Four Man Crew Soft Top Enclosure, Bows, and Mounting Components TM 9-2320-280-24P · Fig. 321

Every part in figure 321 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2201 Canvas, Rubber or Plastic Items: 37 lines, 33 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

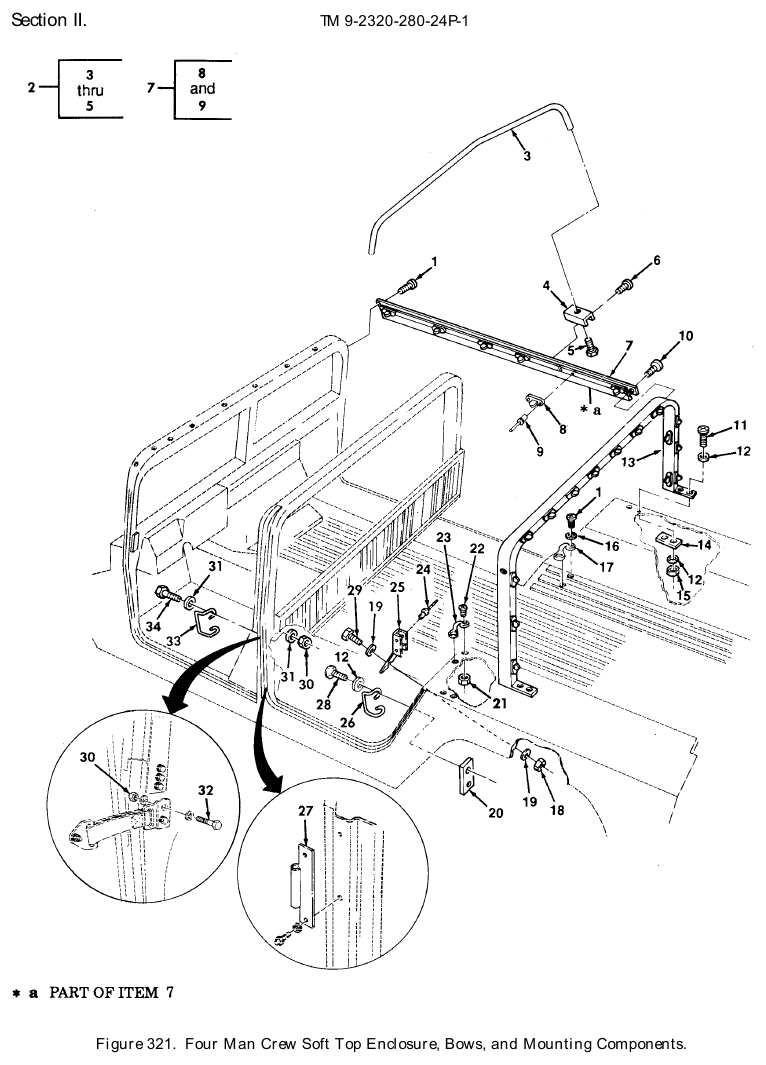

TM 9-2320-280-24P figure 321, Four Man Crew Soft Top Enclosure, Bows, and Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Socket Head Screw NSN 5305-01-210-6249 · P/N PL25D02P12 SCREW,CAP,SOCKET HE #10-32 X 3/4 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	14	We can source it
2	Vehicular Top Bow NSN 2540-01-199-6759 · P/N 12340682 BOW,VEHICULAR TOP PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	588 in stock $97.89our price Buy online ↗
3	Vehicular Top Bow NSN 2540-01-206-4115 · P/N 12340713 BOW,VEHICULAR TOP Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	27 in stock $100.99 per eachgov't list price
4	Retaining Strap NSN 5340-01-204-3862 · P/N 12340239 STRAP,RETAINING Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	358 in stock $25–$40 eachtypical
5	Cap Socket Head Screw NSN 5305-01-203-8346 · P/N 5581439 SCREW,CAP,SOCKET HE 1/4-20 X 3/8 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	300 in stock
6	Machine Screw NSN 5305-00-059-3659 · P/N MS51958-63 SCREW,MACHINE #10-32 X 1/2 PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	8	169 in stock
7	Handrail NSN 2590-01-196-1290 · P/N 12340222-1 HANDRAIL,VEHICULAR L.H.,GREEN PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	708 in stock $108.82 per eachgov't list price
7	Handrail NSN 2590-01-196-5314 · P/N 12340222-2 HANDRAIL,VEHICULAR R.H.,GREEN PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	783 in stock $275.00our price Buy online ↗
8	Turnbutton Fastener Stud NSN 5325-00-823-5999 · P/N XB78323-05001 STUD,TURNBUTTON FAS L.H. AND R.H Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	3	22 in stock
9	Blind Rivet NSN 5320-00-083-5009 · P/N M24243/1-A403 RIVET,BLIND L.H. AND R.H Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	6	641 in stock
10	Cap Socket Head Screw NSN 5305-01-117-3396 · P/N NAS1635-3LE12 SCREW,CAP,SOCKET HE #10-32 X 3/4 PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	202 in stock
11	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H 1/4-20 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	298 in stock
12	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	8	2,325 in stock
13	Vehicular Top Bow NSN 2540-01-196-1291 · P/N 12340679 BOW,VEHICULAR TOP PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	259 in stock $425.00our price Buy online ↗
14	Mending Plate NSN 5340-01-255-9510 · P/N 12339009 PLATE,MENDING Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	5,308 in stock $7.69our price Buy online ↗
15	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	184 in stock
16	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	We can source it
17	Footman Flat Loop NSN 2510-01-199-5748 · P/N 12338839-8 LOOP,FOOTMAN,FLAT PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	6 in stock
18	Self-Locking Hexagon Nut NSN 5310-00-483-8791 · P/N MS17829-4F NUT,SELF-LOCKING,HE #10-32 PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	88 in stock
19	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	1,368 in stock
20	Assembled Nut Retainer NSN 5340-01-197-5477 · P/N 12339006 RETAINER,ASSEMBLED Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	21 in stock
21	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	474 in stock
22	Screw NSN 5305-01-185-0114 · P/N 157166 SCREW #10-32 X 3/4 PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	We can source it
23	Bow Handle NSN 5340-01-197-8673 · P/N 12338839-4 HANDLE,BOW ORDER NSN 5340-01-197- 8673 AND PAINT TAN PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	14 in stock
24	Blind Rivet NSN 5320-01-034-1884 · P/N CR3243-6-5 RIVET,BLIND PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	8	24 in stock
25	Mounting Bracket NSN 5340-01-430-9239 · P/N 12447124-1 BRACKET,MOUNTING R.H. PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	117 in stock $39.69our price Buy online ↗
25	Mounting Bracket NSN 5340-01-430-9240 · P/N 12447123-1 BRACKET,MOUNTING L.H. PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	106 in stock $30–$65 eachtypical
26	Catch Strike NSN 5340-01-208-7670 · P/N 12340182-1 STRIKER,LATCH,DOOR L.H. PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	773 in stock
26	Latch Door Striker NSN 5342-01-204-9610 · P/N 12340182-2 STRIKER,LATCH,DOOR R.H. PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	276 in stock $45–$85 eachtypical
27	Hinge Mount NSN 5342-01-203-2822 · P/N 12338650 MOUNT,RESILIENT PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	24,044 in stock $10.00our price Buy online ↗
28	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	We can source it
29	Machine Bolt NSN 5305-00-051-4077 · P/N B1821BH031F113N BOLT,MACHINE 5/16-24 X 1-1/8,PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	239 in stock
30	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24,PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	12	904 in stock
31	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	8	1,368 in stock
32	Machine Bolt NSN 5306-00-180-2748 · P/N AN5H7 BOLT,MACHINE 5/16-24 X 1.00 PART OF KIT P/N 57K0123 PART OF KIT P/N 57K0155 PART OF KIT P/N 57K0161 PART OF KIT P/N 57K3501 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	200 in stock
33	Buckle NSN 5340-01-207-0717 · P/N 12339187 BUCKLE Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	101 in stock $17.50our price Buy online ↗
34	Machine Bolt NSN 5305-00-051-4077 · P/N B1821BH031F113N BOLT,MACHINE 5/16-24 X 1-1/8 BOLT,MACHINE ( 4) 321-29 BOLT,MACHINE ( 4) 321-32 BOW,VEHICULAR TOP ( 2) 321-2 BOW,VEHICULAR TOP ( 1) 321-13 BRACKET,MOUNTING ( 1) 321-25 BRACKET,MOUNTING ( 1) 321-25 CURTAIN,VEHICULAR ( 1) 320-2 DOOR ASSEMBLY ( 1) 320-5 DOOR ASSEMBLY ( 1) 320-5 DOOR,VEHICULAR ( 1) 320- Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	239 in stock

Buy the 6 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
