HMMWV Cargo Area Soft Top Enclosure, Top Assembly TM 9-2320-280-24P · Fig. 322

Every part in figure 322 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2201 Canvas, Rubber or Plastic Items: 9 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

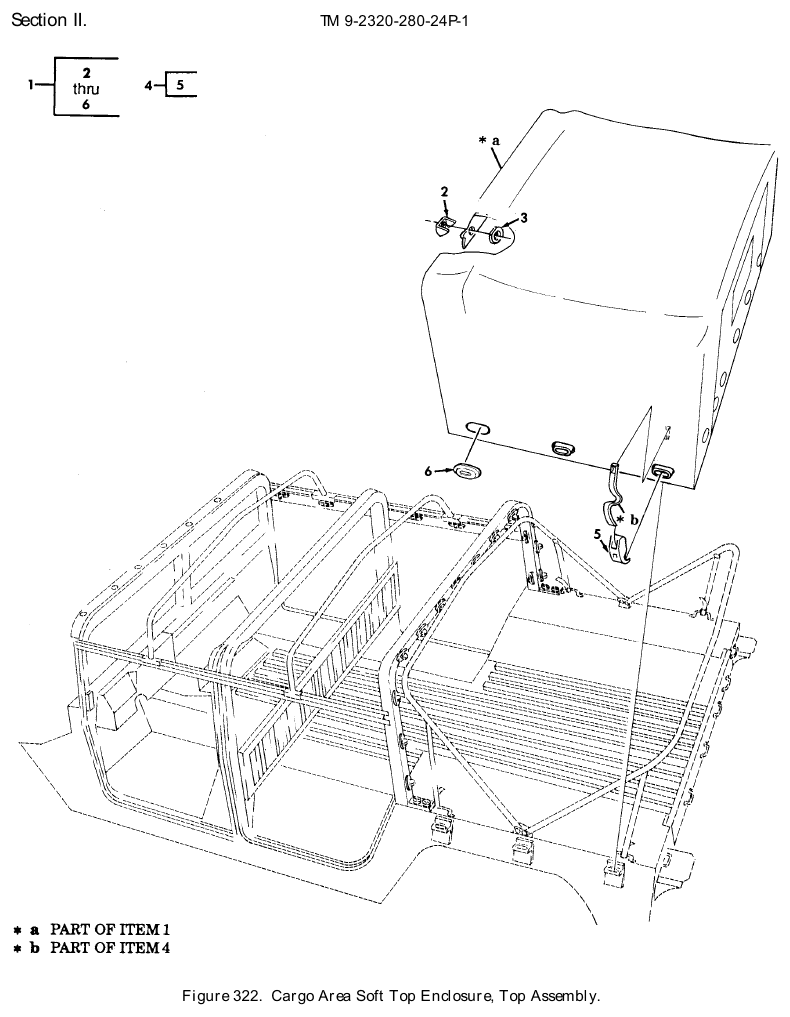

TM 9-2320-280-24P figure 322, Cargo Area Soft Top Enclosure, Top Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Truck Body Detachab Top Assembly NSN 2540-01-189-3707 · P/N 12340777 TOP ASSEMBLY,TRUCK GREEN PART OF KIT P/N 12340765 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	8 in stock $615.00our price Buy online ↗
1	Fitted Vehicular Body Cover NSN 2540-01-450-4020 · P/N 12340777-10 COVER,FITTED,VEHICU WHITE PART OF KIT P/N 57K0163 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	3 in stock $268.79 per eachgov't list price
1	Fitted Vehicular Body Cover NSN 2540-01-450-4024 · P/N 12340777-15 COVER,FITTED,VEHICU CAMOUFLAGE PART OF KIT P/N 57K3499 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	6 in stock $858.88 per eachgov't list price
1	Fitted Vehicular Body Cover NSN 2540-01-330-6170 · P/N 12340777-5 COVER,FITTED,VEHICU CARGO AREA, TAN PART OF KIT P/N 57K0158 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	14 in stock $652.53 per assemblygov't list price
2	Turnbutton Fastener Socket NSN 5325-00-281-8643 · P/N 91-BS-78403 SOCKET,TURNBUTTON F Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	5	376 in stock
3	Turnbutton Fastener Clinch Plate NSN 5325-00-371-8108 · P/N BS 78505 .CLINCH PLATE,TURNBU Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	5	We can source it
4	Retaining Strap NSN 5340-01-414-1454 · P/N 12340517-1 STRAP,RETAINING Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	13	We can source it
5	Buckle NSN 5340-01-203-6542 · P/N 44702-10 BUCKLE Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	19 in stock
6	Nonmetallic Grommet NSN 5325-01-199-2254 · P/N 5581315 GROMMET,NONMETALLIC Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	13	We can source it
