HMMWV Cargo Area Soft Top Enclosure, Bows, and Mounting Components TM 9-2320-280-24P · Fig. 323

Every part in figure 323 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2201 Canvas, Rubber or Plastic Items: 16 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

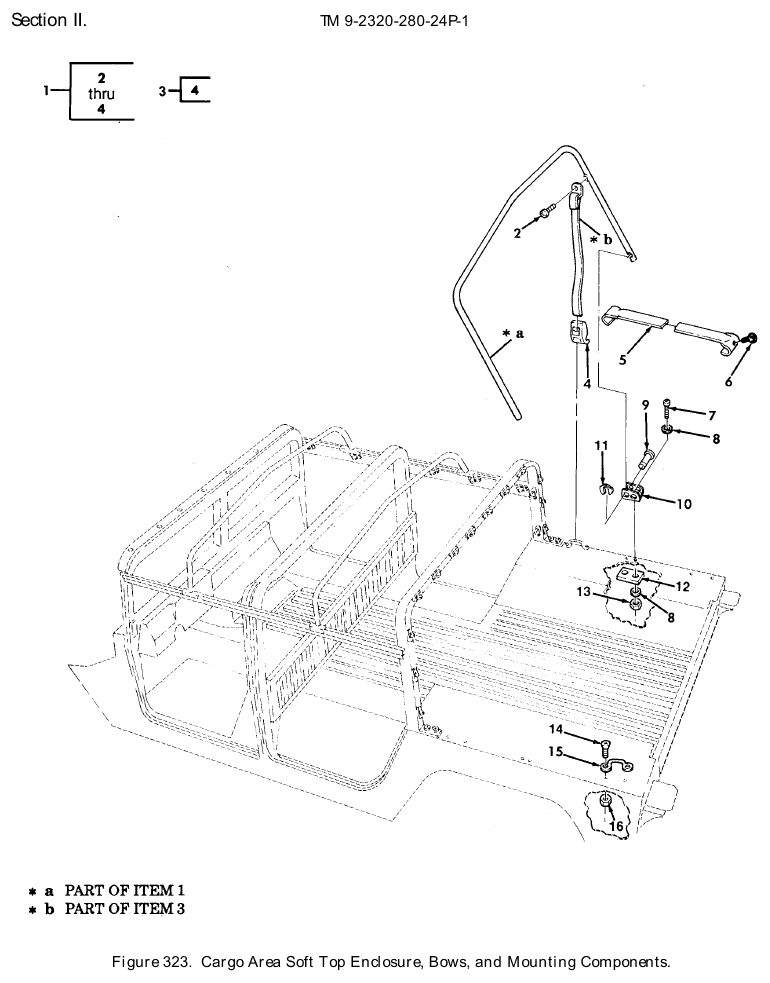

TM 9-2320-280-24P figure 323, Cargo Area Soft Top Enclosure, Bows, and Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Top Bow NSN 2540-01-197-8735 · P/N 12340768 BOW,VEHICULAR TOP PART OF KIT P/N 12340765,PART OF KIT P/N 57K0158, PART OF KIT P/N 57K0163,PART OF KIT P/N 57K3499 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	479 in stock $116.25 per eachgov't list price
2	Cap Socket Head Screw NSN 5305-01-198-3385 · P/N PL25D040P12 SCREW,CAP,SOCKET HE #10-32 X 3/4 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	We can source it
3	Webbing Strap NSN 5340-01-202-7445 · P/N 5581464 STRAP,WEBBING Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	3 in stock $25–$40 eachtypical
4	Buckle NSN 5340-01-203-6542 · P/N 44702-10 BUCKLE Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	19 in stock
5	Vehicular Top Bow Corner NSN 2540-01-337-0242 · P/N 12342314 BOW CORNER,VEHICULA PART OF KIT P/N 12340765,PART OF KIT P/N 57K0158, PART OF KIT P/N 57K0163,PART OF KIT P/N 57K3499 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	5 in stock $75–$125 eachtypical
6	Tapping Screw NSN 5305-01-109-0587 · P/N MS24630-66 SCREW,TAPPING .190-32 X 3/8,PART OF KIT P/N 12340765,PART OF KIT P/N 57K0158,PART OF KIT P/N 57K0163,PART OF KIT P/N 57K3499 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	9 in stock
7	Cap Socket Head Screw NSN 5305-01-198-3385 · P/N PL25D040P12 SCREW,SELF-LOCKING 1/4-20 X 3/4 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	We can source it
8	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	8	2,325 in stock
9	Grooved Headed Pin NSN 5315-01-197-1494 · P/N 12340209 PIN,GROOVED,HEADED 1/4 X 1.515,PART OF KIT P/N 12340765,PART OF KIT P/N 57K0158,PART OF KIT P/N 57K0163,PART OF KIT P/N 57K3499 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	We can source it
10	Retaining Strap NSN 5340-01-199-9679 · P/N 12340196 STRAP,RETAINING PART OF KIT P/N 12340765,PART OF KIT P/N 57K0158, PART OF KIT P/N 57K0163,PART OF KIT P/N 57K3499 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	We can source it
11	Retaining Ring NSN 5325-01-047-3201 · P/N 12340523 RING,RETAINING PART OF KIT P/N 12340765,PART OF KIT P/N 57K0158, PART OF KIT P/N 57K0163,PART OF KIT P/N 57K3499 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	16 in stock
12	Mending Plate NSN 5340-01-255-9510 · P/N 12339009 PLATE,MENDING Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	5,308 in stock $7.69our price Buy online ↗
13	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20,PART OF KIT P/N 12340765,PART OF KIT P/N 57K0158,PART OF KIT P/N 57K0163,PART OF KIT P/N 57K3499 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	626 in stock
14	Machine Screw NSN 5305-00-984-7343 · P/N MS35191-276 SCREW,MACHINE #10-32 X 1.00,PART OF KIT P/N 12340765,PART OF KIT P/N 57K0158,PART OF KIT P/N 57K0163,PART OF KIT P/N 57K3499 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	8	We can source it
15	Bow Handle NSN 5340-01-197-8673 · P/N 12338839-4 HANDLE,BOW PART OF KIT P/N 12340765 PART OF KIT P/N 57K0158,PART OF KIT P/N 57K0163,PART OF KIT P/N 57K3499 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	4	14 in stock
16	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32,PART OF KIT P/N 12340765,PART OF KIT P/N 57K0158,PART OF KIT P/N 57K0163,PART OF KIT P/N 57K3499 BOW,CORNER,VEHICULA( 1) 323-5 BOW,VEHICULAR TOP ( 2) 323-1 HANDLE,BOW ( 4) 323-15 NUT,PLAIN,ASSEMBLED( 8) 323-16 NUT,SELF-LOCKING ( 4) 323-13 PIN,GROOVED,HEADED ( 4) 323-9 RING,RETAINING ( 4) 323-1 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	8	474 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
