HMMWV Ambulance Soft Top Enclosure, Top Curtain, and Door Assemblies TM 9-2320-280-24P · Fig. 324

Every part in figure 324 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2201 Canvas, Rubber or Plastic Items: 54 lines, 38 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

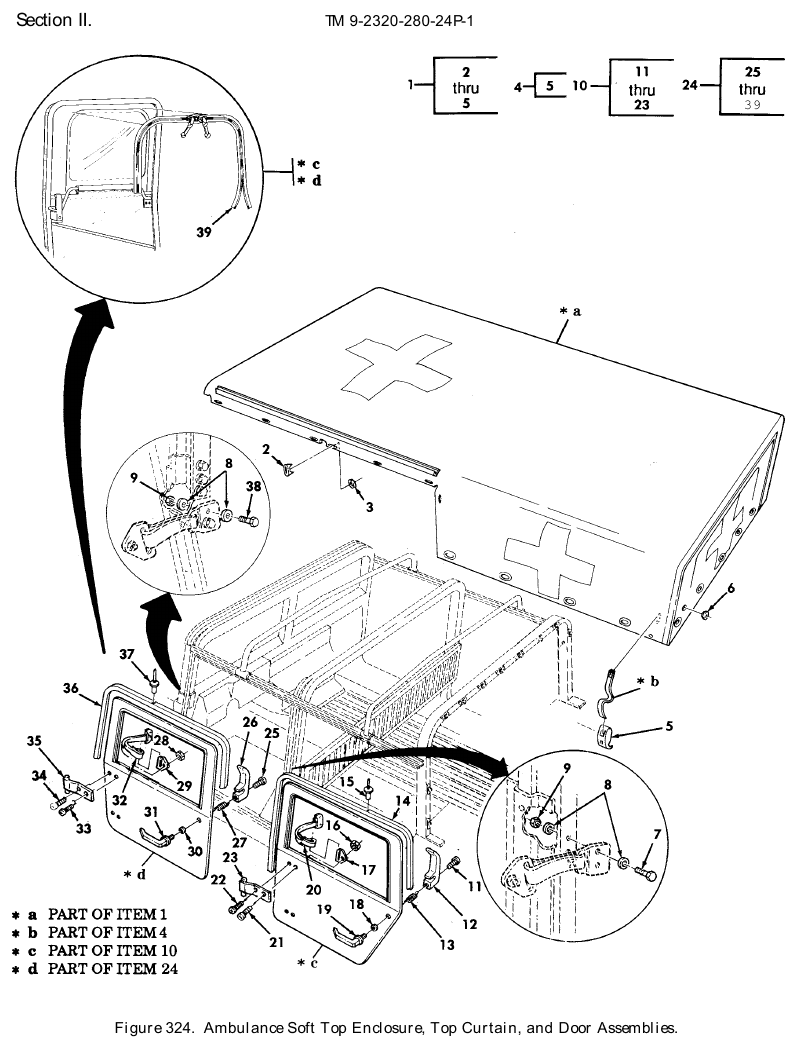

TM 9-2320-280-24P figure 324, Ambulance Soft Top Enclosure, Top Curtain, and Door Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Fitted Vehicular Body Cover NSN 2540-01-476-2172 · P/N 12340226-2 COVER,FITTED,VEHICU CAMOUFLAGE Fits: M1035, M1035A1, M1035A2	1	We can source it $1,323.00 per eachgov't list price
1	Fitted Vehicular Body Cover NSN 2540-01-197-5478 · P/N 12340226 COVER,FITTED,VEHICU GREEN Fits: M1035, M1035A1, M1035A2	1	2 in stock $978.04our price Buy online ↗
2	Turnbutton Fastener Socket NSN 5325-00-281-8643 · P/N 91-BS-78403 SOCKET,TURNBUTTON F Fits: M1035, M1035A1, M1035A2	23	376 in stock
3	Turnbutton Fastener Clinch Plate NSN 5325-00-371-8108 · P/N BS 78505 .CLINCH PLATE,TURNBU Fits: M1035, M1035A1, M1035A2	23	We can source it
4	Retaining Strap NSN 5340-01-414-1454 · P/N 12340517-1 STRAP,RETAINING Fits: M1035, M1035A1, M1035A2	14	We can source it
5	Buckle NSN 5340-01-203-6542 · P/N 44702-10 BUCKLE Fits: M1035, M1035A1, M1035A2	1	19 in stock
6	Nonmetallic Grommet NSN 5325-01-199-2254 · P/N 5581315 GROMMET,NONMETALLIC Fits: M1035, M1035A1, M1035A2	13	We can source it
7	Cap Hexagon Head Screw NSN 5305-00-051-4076 · P/N B1821BH031F100N SCREW,CAP,HEXAGON H 5/6-24 X 1.00 Fits: M1035, M1035A1, M1035A2	4	292 in stock
8	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M1035, M1035A1, M1035A2	16	1,368 in stock
9	Self-Locking Hexagon Nut NSN 5310-00-984-3807 · P/N 9419476 NUT,SELF-LOCKING,HE 5/16-24 Fits: M1035, M1035A1, M1035A2	8	2,133 in stock
10	Vehicular Door NSN 2510-01-189-3459 · P/N 99890451 DOOR,VEHICULAR REAR,L.H.GREEN Fits: M1035, M1035A1, M1035A2	1	34 in stock quote only
10	Vehicular Door NSN 2510-01-450-5483 · P/N 12340245-8 DOOR,VEHICULAR CAMOUFLAGE L.H Fits: M1035, M1035A1, M1035A2	1	28 in stock $360.20 per eachgov't list price
10	Vehicular Door NSN 2510-01-189-3460 · P/N SF5581351 DOOR,VEHICULAR REAR,R.H.GREEN Fits: M1035, M1035A1, M1035A2	1	36 in stock
10	Vehicular Door NSN 2510-01-450-5482 · P/N 12340245-7 DOOR,VEHICULAR CAMOUFLAGE R.H Fits: M1035, M1035A1, M1035A2	1	33 in stock $299.10 per eachgov't list price
11	Machine Screw NSN 5305-01-198-1619 · P/N PL25J02P20 SCREW,MACHINE #10-32 X 1.25 PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M1035, M1035A1, M1035A2	1	We can source it $25–$50 eachtypical
12	Door Vehicular Handle NSN 2540-01-200-1994 · P/N 5581320 HANDLE,DOOR,VEHICUL L.H. PART OF KIT P/N 5705619 Fits: M1035, M1035A1, M1035A2	1	45 in stock
12	Door Vehicular Handle NSN 2540-01-203-7721 · P/N 12301363-2 HANDLE,DOOR,VEHICUL R.H. PART OF KIT P/N 5705618 Fits: M1035, M1035A1, M1035A2	1	40 in stock
13	Helical Torsion Spring NSN 5360-01-315-7211 · P/N 12356764-2 SPRING,HELICAL,TORS R.H. PART OF KIT P/N 5705618 Fits: M1035, M1035A1, M1035A2	1	12 in stock
13	Helical Torsion Spring NSN 5360-01-315-7212 · P/N 12356764-1 SPRING,HELICAL,TORS L.H. PART OF KIT P/N 5705619 Fits: M1035, M1035A1, M1035A2	1	6 in stock
14	Seal P/N 21022103-150 SEAL,NONMETALLIC SP MAKE FROM SEAL, P/N 21022103, 150 INCHES LONG Fits: M1035, M1035A1, M1035A2	1	Ask us
15	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1-A404 RIVET,BLIND Fits: M1035, M1035A1, M1035A2	18	132 in stock
16	Plain Hexagon Nut NSN 5310-01-018-5332 · P/N 5581461 NUT,PLAIN,HEXAGON 1/4-20 Fits: M1035, M1035A1, M1035A2	4	We can source it
17	Strap Fastener Loop NSN 5340-01-256-9318 · P/N 5595216 LOOP,STRAP FASTENER L.H Fits: M1035, M1035A1, M1035A2	1	19 in stock
17	Strap Fastener Loop NSN 5340-01-255-9919 · P/N 5595217 LOOP,STRAP FASTENER R.H Fits: M1035, M1035A1, M1035A2	1	32 in stock
18	Flat Washer NSN 5310-01-205-9056 · P/N 5581321 WASHER,FLAT 5/8 PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M1035, M1035A1, M1035A2	1	We can source it
19	Door Vehicular Handle NSN 2540-01-200-1995 · P/N 12301365 HANDLE,DOOR,VEHICUL L.H. AND R.H PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M1035, M1035A1, M1035A2	1	29 in stock
20	Strap Fastener Loop NSN 5340-01-254-7189 · P/N 12340201 LOOP,STRAP FASTENER Fits: M1035, M1035A1, M1035A2	1	17 in stock $25.99our price Buy online ↗
21	Cap Socket Head Screw NSN 5305-01-206-7217 · P/N PL25D040P8 SCREW,CAP,SOCKET HE 1/4-20 X 1/2 Fits: M1035, M1035A1, M1035A2	3	9 in stock
22	Cap Socket Head Screw NSN 5305-01-198-3385 · P/N PL25D040P12 SCREW,CAP,SOCKET HE 1/4-20 X 3/4 Fits: M1035, M1035A1, M1035A2	1	We can source it
23	Butt Hinge Leaf NSN 5340-01-205-9021 · P/N 12340193-1 LEAF,BUTT HINGE REAR,L.H Fits: M1035, M1035A1, M1035A2	2	1 in stock $25–$40 eachtypical
23	Butt Hinge Leaf NSN 5340-01-205-9022 · P/N 12340193-2 LEAF,BUTT HINGE REAR,R.H Fits: M1035, M1035A1, M1035A2	2	We can source it
24	Vehicular Door Assembly NSN 2510-01-189-9724 · P/N 5581348 DOOR ASSEMBLY,VEHIC FRONT,L.H.GREEN Fits: M1035, M1035A1, M1035A2	1	193 in stock
24	Vehicular Door NSN 2510-01-450-5480 · P/N 12340231-10 DOOR,VEHICULAR CAMOUFLAGE L.H.FRONT Fits: M1035, M1035A1, M1035A2	1	153 in stock $276.87 per eachgov't list price
24	Vehicular Door NSN 2510-01-189-9725 · P/N 5581349 DOOR,VEHICULAR FRONT,R.H.GREEN Fits: M1035, M1035A1, M1035A2	1	10 in stock
24	Vehicular Door NSN 2510-01-450-5479 · P/N 12340231-11 DOOR,VEHICULAR CAMOUFLAGE R.H., FRONT Fits: M1035, M1035A1, M1035A2	1	44 in stock $269.84 per eachgov't list price
25	Machine Screw NSN 5305-01-198-1619 · P/N PL25J02P20 SCREW,MACHINE #10-32 X 1.25 PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M1035, M1035A1, M1035A2	1	We can source it $25–$50 eachtypical
26	Door Vehicular Handle NSN 2540-01-200-1994 · P/N 5581320 HANDLE,DOOR,VEHICUL L.H. PART OF KIT P/N 5705619 Fits: M1035, M1035A1, M1035A2	1	45 in stock
26	Door Vehicular Handle NSN 2540-01-203-7721 · P/N 5581319 HANDLE,DOOR,VEHICUL R.H. PART OF KIT P/N 5705618 Fits: M1035, M1035A1, M1035A2	1	40 in stock
27	Helical Torsion Spring NSN 5360-01-315-7212 · P/N 12356764-1 SPRING,HELICAL,TORS L.H. PART OF KIT P/N 5705619 Fits: M1035, M1035A1, M1035A2	1	6 in stock
27	Helical Torsion Spring NSN 5360-01-315-7211 · P/N 12356764-2 SPRING,HELICAL,TORS R.H. PART OF KIT P/N 5705618 Fits: M1035, M1035A1, M1035A2	1	12 in stock
28	Plain Hexagon Nut NSN 5310-00-997-1888 · P/N MS35649-2252 NUT,PLAIN,HEXAGON 1/4-20 Fits: M1035, M1035A1, M1035A2	4	300 in stock
29	Strap Fastener Loop NSN 5340-01-256-9318 · P/N 41256040 LOOP,STRAP FASTENER L.H Fits: M1035, M1035A1, M1035A2	1	19 in stock
29	Strap Fastener Loop NSN 5340-01-255-9919 · P/N 5595217 LOOP,STRAP FASTENER R.H Fits: M1035, M1035A1, M1035A2	1	32 in stock
30	Flat Washer NSN 5310-01-205-9056 · P/N 5581321 WASHER,FLAT 5/8 PART OF KIT P/N 5705619 Fits: M1035, M1035A1, M1035A2	1	We can source it
31	Door Vehicular Handle NSN 2540-01-200-1995 · P/N 12301365 HANDLE,DOOR,VEHICUL L.H. AND R.H PART OF KIT P/N 5705618 PART OF KIT P/N 5705619 Fits: M1035, M1035A1, M1035A2	1	29 in stock
32	Strap Fastener Loop NSN 5340-01-254-7189 · P/N 12340201 LOOP,STRAP FASTENER Fits: M1035, M1035A1, M1035A2	1	17 in stock $25.99our price Buy online ↗
33	Cap Socket Head Screw NSN 5305-01-206-7217 · P/N PL25D040P8 SCREW,CAP,SOCKET HE 1/4-20 X 1/2 Fits: M1035, M1035A1, M1035A2	3	9 in stock
34	Cap Socket Head Screw NSN 5305-01-198-3385 · P/N PL25D040P12 SCREW,CAP,SOCKET HE 1/4-20 X 3/4 Fits: M1035, M1035A1, M1035A2	1	We can source it
35	Butt Hinge Leaf NSN 5340-01-205-9021 · P/N 12340193-1 LEAF,BUTT HINGE L.H Fits: M1035, M1035A1, M1035A2	2	1 in stock $25–$40 eachtypical
35	Butt Hinge Leaf NSN 5340-01-205-9022 · P/N 12340193-2 LEAF,BUTT HINGE R.H Fits: M1035, M1035A1, M1035A2	2	We can source it
36	Seal P/N 21022103-150 SEAL,NONMETALLIC SP MAKE FROM SEAL, P/N 21022103, 150 INCHES LONG Fits: M1035, M1035A1, M1035A2	1	Ask us
37	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1A404 RIVET,BLIND Fits: M1035, M1035A1, M1035A2	18	132 in stock
38	Shoulder Screw NSN 5305-00-600-8993 · P/N 6008993 SCREW,SHOULDER 5/16-24 X 1 Fits: M1035, M1035A1, M1035A2	4	We can source it $25–$40 eachtypical
39	Slide Interlocking Fastener NSN 5325-01-357-1080 · P/N 12340212-3 FASTENER,SLIDE,INTE Fits: M1035, M1035A1, M1035A2	2	124 in stock $25–$50 eachtypical

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
