HMMWV Ambulance Soft Top Enclosure, Bows, and Mounting Components TM 9-2320-280-24P · Fig. 325

Every part in figure 325 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2201 Canvas, Rubber or Plastic Items: 32 lines, 25 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

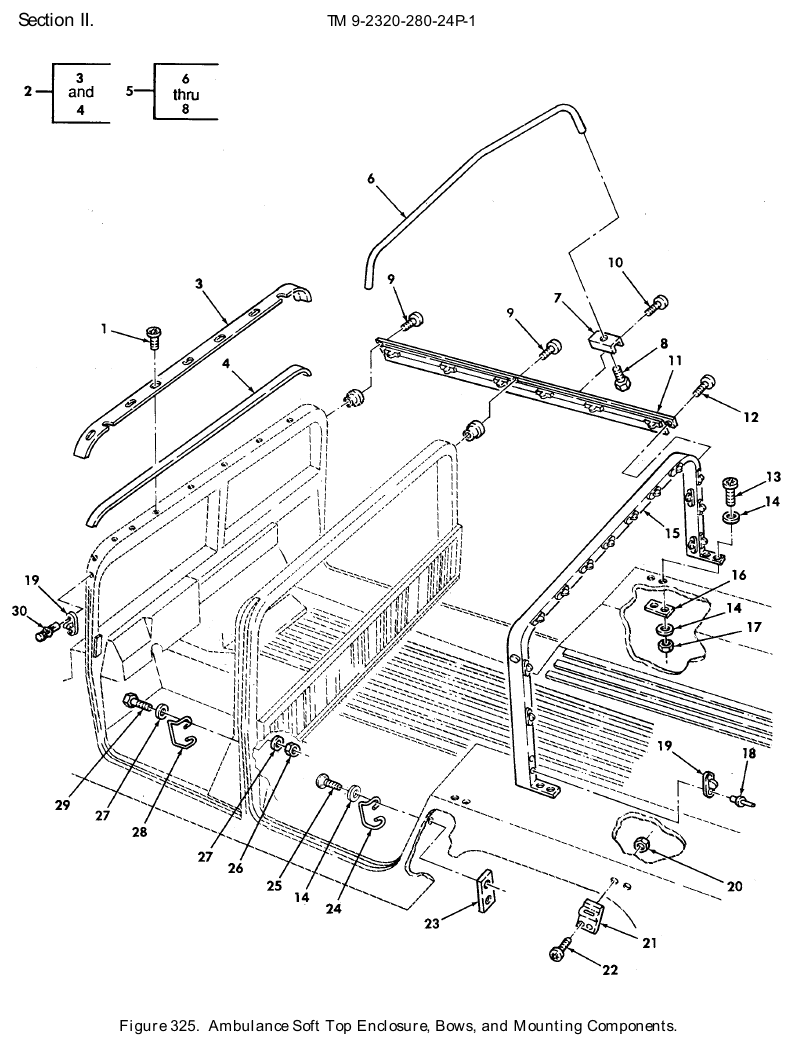

TM 9-2320-280-24P figure 325, Ambulance Soft Top Enclosure, Bows, and Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Socket Head Screw NSN 5305-01-210-6249 · P/N G167084 SCREW MACHINE #10-34 X 1/2 Fits: M1035, M1035A1, M1035A2	11	We can source it
2	Pillar Former NSN 2540-01-196-5313 · P/N 12340031 FORMER,PILLAR Fits: M1035, M1035A1, M1035A2	1	34 in stock $75–$125 eachtypical
3	Former P/N 5581313 FORMER Fits: M1035, M1035A1, M1035A2	1	Ask us
4	Seal Make From Tape P/N 5581366 SEAL MAKE FROM TAPE,P/N 4965,82 INCHES LONG Fits: M1035, M1035A1, M1035A2	1	Ask us
5	Vehicular Top Bow NSN 2540-01-197-5525 · P/N 12340241 BOW,VEHICULAR TOP Fits: M1035, M1035A1, M1035A2	2	We can source it $709.07 per eachgov't list price
6	Bow P/N 5581396 BOW Fits: M1035, M1035A1, M1035A2	1	Ask us
7	Retaining Strap NSN 5340-01-204-3862 · P/N 12340239 STRAP,RETAINING Fits: M1035, M1035A1, M1035A2	2	358 in stock $25–$40 eachtypical
8	Cap Socket Head Screw NSN 5305-01-203-8346 · P/N 5581439 SCREW,CAP,SOCKET HE 1/4-20 X 3/8 Fits: M1035, M1035A1, M1035A2	2	300 in stock
9	Machine Screw NSN 5305-00-993-1848 · P/N MS35207-265 SCREW,MACHINE #10-32 X 3/4 Fits: M1035, M1035A1, M1035A2	4	55 in stock
10	Machine Screw NSN 5305-01-208-0274 · P/N 160046 SCREW,MACHINE #10-32 X 1/2 Fits: M1035, M1035A1, M1035A2	8	We can source it $25–$40 eachtypical
11	Handrail NSN 2590-01-196-1290 · P/N 12340222-1 HANDRAIL,VEHICULAR L.H Fits: M1035, M1035A1, M1035A2	1	708 in stock $108.82 per eachgov't list price
11	Handrail NSN 2590-01-196-5314 · P/N 12340222-2 HANDRAIL,VEHICULAR R.H Fits: M1035, M1035A1, M1035A2	1	783 in stock $275.00our price Buy online ↗
12	Cap Socket Head Screw NSN 5305-01-117-3396 · P/N NAS1635-3LE12 SCREW,CAP,SOCKET HE #10-32 X 3/4 Fits: M1035, M1035A1, M1035A2	1	202 in stock
13	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N B1821BH025C088N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M1035, M1035A1, M1035A2	4	We can source it
14	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M1035, M1035A1, M1035A2	12	2,325 in stock
15	Amb Pillar Assembly NSN 2540-01-197-5476 · P/N 5581347 PILLAR ASSEMBLY,AMB Fits: M1035, M1035A1, M1035A2	1	8 in stock $385.00our price Buy online ↗
16	Mending Plate NSN 5340-01-255-9510 · P/N 12339009 PLATE,MENDING Fits: M1035, M1035A1, M1035A2	4	5,308 in stock $7.69our price Buy online ↗
17	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1035, M1035A1, M1035A2	4	184 in stock
18	Blind Rivet NSN 5320-00-083-5009 · P/N M24243/1-A403 RIVET,BLIND Fits: M1035, M1035A1, M1035A2	8	641 in stock
19	Turnbutton Fastener Stud NSN 5325-00-823-5999 · P/N XB78323-05001 STUD,TURNBUTTON FAS Fits: M1035, M1035A1, M1035A2	6	22 in stock
20	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: M1035, M1035A1, M1035A2	20	474 in stock
21	Strap Fastener Loop NSN 5340-01-260-9027 · P/N 5593625 LOOP,STRAP FASTENER Fits: M1035, M1035A1, M1035A2	10	235 in stock $9.79our price Buy online ↗
22	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X 5/8 Fits: M1035, M1035A1, M1035A2	20	4 in stock
23	Assembled Nut Retainer NSN 5340-01-197-5477 · P/N 12339006 RETAINER,ASSEMBLED Fits: M1035, M1035A1, M1035A2	2	21 in stock
24	Catch Strike NSN 5340-01-208-7670 · P/N 12340182-1 STRIKER,LATCH,DOOR REAR DOOR,L.H Fits: M1035, M1035A1, M1035A2	2	773 in stock
24	Latch Door Striker NSN 5342-01-204-9610 · P/N 12340182-2 STRIKER,LATCH,DOOR REAR DOOR,R.H Fits: M1035, M1035A1, M1035A2	2	276 in stock $45–$85 eachtypical
25	Self-Locking Hexagon Nut NSN 5310-00-984-3807 · P/N 9419476 NUT,SELF-LOCKING,HE 1/4-20 X 3/4 Fits: M1035, M1035A1, M1035A2	4	2,133 in stock
26	Self-Locking Hexagon Nut NSN 5310-00-984-3807 · P/N 9419476 NUT,SELF-LOCKING,HE 5/16-24 Fits: M1035, M1035A1, M1035A2	4	2,133 in stock
27	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M1035, M1035A1, M1035A2	8	1,368 in stock
28	Buckle NSN 5340-01-207-0717 · P/N 12339187 BUCKLE FRONT Fits: M1035, M1035A1, M1035A2	2	101 in stock $17.50our price Buy online ↗
29	Machine Bolt NSN 5305-00-051-4077 · P/N B1821BH031F113N BOLT,MACHINE 5/16-24 X 1.13 Fits: M1035, M1035A1, M1035A2	4	239 in stock
30	Blind Rivet NSN 5320-01-023-2529 · P/N AD44BS RIVET,BLIND 1/8 Fits: M1035, M1035A1, M1035A2	4	132 in stock

Buy the 5 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
