HMMWV Ambulance Soft Top Enclosure, Rear Bow, and Mounting Components TM 9-2320-280-24P · Fig. 326

Every part in figure 326 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2201 Canvas, Rubber or Plastic Items: 13 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

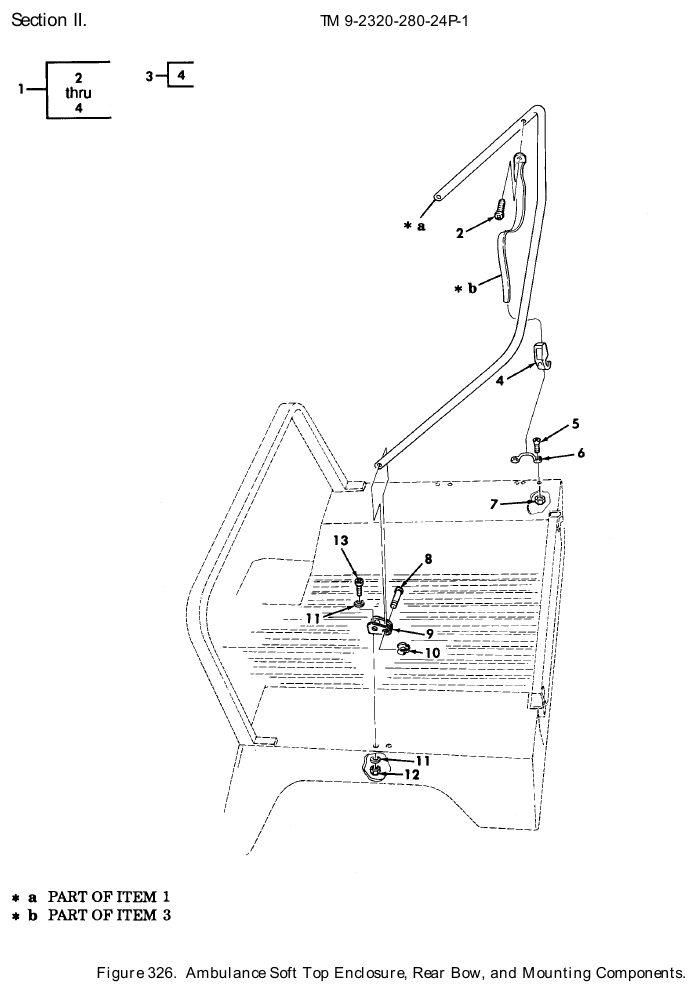

TM 9-2320-280-24P figure 326, Ambulance Soft Top Enclosure, Rear Bow, and Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Top Bow NSN 2540-01-197-5526 · P/N 12340199 BOW,VEHICULAR TOP Fits: M1035, M1035A1, M1035A2	1	We can source it $164.47 per eachgov't list price
2	Cap Socket Head Screw NSN 5305-01-198-3385 · P/N PL25D040P12 SCREW,CAP,SOCKET HE 1/4-20 X 3/4 Fits: M1035, M1035A1, M1035A2	2	We can source it
3	Webbing Strap NSN 5340-01-202-7445 · P/N 5581464 STRAP,WEBBING Fits: M1035, M1035A1, M1035A2	2	3 in stock $25–$40 eachtypical
4	Buckle NSN 5340-01-203-6542 · P/N 44702-10 BUCKLE Fits: M1035, M1035A1, M1035A2	1	19 in stock
5	Screw NSN 5305-01-185-0114 · P/N 157166 SCREW #10-32 X 5/8 Fits: M1035, M1035A1, M1035A2	10	We can source it
6	Bow Handle NSN 5340-01-197-8673 · P/N 12338839-4 HANDLE,BOW Fits: M1035, M1035A1, M1035A2	5	14 in stock
7	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32 Fits: M1035, M1035A1, M1035A2	10	10 in stock
8	Grooved Headed Pin NSN 5315-01-197-1494 · P/N 5581392-B PIN,GROOVED,HEADED 1/4 X 1.515 Fits: M1035, M1035A1, M1035A2	2	We can source it
9	Retaining Strap NSN 5340-01-199-9679 · P/N 12340196 STRAP,RETAINING Fits: M1035, M1035A1, M1035A2	2	We can source it
10	Retaining Ring NSN 5325-01-047-3201 · P/N 5304-25-H RING,RETAINING Fits: M1035, M1035A1, M1035A2	2	16 in stock
11	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M1035, M1035A1, M1035A2	8	2,325 in stock
12	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1035, M1035A1, M1035A2	4	184 in stock
13	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N B1821BH025C088N SCREW,CAP,HEXAGON H 1/4-20 X 7/8 Fits: M1035, M1035A1, M1035A2	4	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
