HMMWV Windshield Wiper Motor, Wiper Assembly, and Washer Bottle TM 9-2320-280-24P · Fig. 327

Every part in figure 327 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 50 lines, 29 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

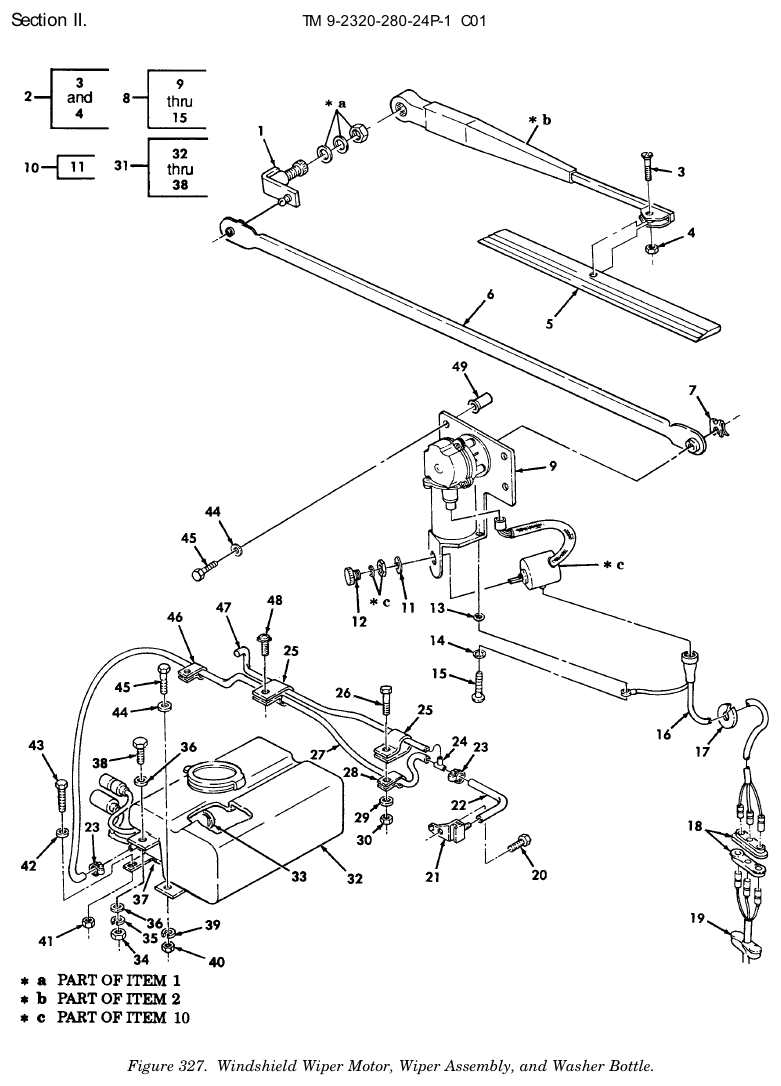

TM 9-2320-280-24P figure 327, Windshield Wiper Motor, Wiper Assembly, and Washer Bottle: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Windshield Wiper Pivot Assembly NSN 2540-01-422-0253 · P/N GS-2176 LEVER,MANUAL CONTRO Fits: All models	2	35 in stock $45–$85 per assemblytypical
2	Windshield Wiper Arm NSN 2540-01-212-4959 · P/N 13194 ARM,WINDSHIELD WIPE Fits: All models	2	855 in stock $28.91our price Buy online ↗
3	Machine Screw NSN 5305-01-229-7855 · P/N 62886 SCREW,MACHINE 1/8 DIAMETER, 1/2 INCHES LONG Fits: All models	1	We can source it
4	Self-Locking Hexagon Nut NSN 5310-01-299-6460 · P/N B79NM-50 NUT,SELF-LOCKING,HE #5-40 Fits: All models	1	We can source it
5	Windshield Wiper Blade NSN 2540-01-199-7778 · P/N 51-11 BLADE,WINDSHIELD WI Fits: All models	2	818 in stock
6	Windshield Wiper Pivot Shaft NSN 2540-01-214-1568 · P/N 12338831 PIVOT SHAFT,WINDSHI Fits: All models	2	117 in stock $25–$40 eachtypical
7	Spring Tension Clip NSN 5340-01-211-5593 · P/N C-1703 CLIP,SPRING TENSION Fits: All models	1	15 in stock
8	Windshield Wiper Electric Motor NSN 2540-01-186-0969 · P/N 12342501 MOTOR,WINDSHIELD WI 24 VOLTS Fits: All models	1	95 in stock $343.00our price Buy online ↗
9	Wiper Motor P/N 12342501-1 WIPER MOTOR Fits: All models	1	Ask us
10	Rotary Switch NSN 5930-01-347-9216 · P/N 12342681 SWITCH,ROTARY Fits: All models	1	3 in stock $85–$140 eachtypical
11	Lock Washer NSN 5310-00-685-3228 · P/N MS35333-43 WASHER,LOCK 7/16 Fits: All models	1	300 in stock
12	Knob NSN 5355-01-353-6934 · P/N 12342682 KNOB Fits: All models	1	We can source it
13	Lock Washer NSN 5310-00-889-2528 · P/N MS45904-68 WASHER,LOCK 1/4 Fits: All models	1	10 in stock
14	Lock Washer NSN 5310-00-550-1130 · P/N MS35333-40 WASHER,LOCK 1/4 Fits: All models	1	2,548 in stock $6.85our price Buy online ↗
15	Tapping Screw NSN 5305-00-204-4850 · P/N MS24629-73 SCREW,TAPPING 1/4-20 X 1/2 Fits: All models	1	We can source it
16	Special Purpose E Cable Assembly NSN 6150-01-185-8240 · P/N 12339347-1 CABLE ASSEMBLY,SPEC Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	10 in stock $55–$95 eachtypical
16	Special Purpose E Cable Assembly NSN 6150-01-210-3596 · P/N 12339347-2 CABLE ASSEMBLY,SPEC Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 16 more	1	2 in stock $40–$75 eachtypical
17	Nonmetallic Grommet NSN 5325-01-088-7468 · P/N MS35489-41 GROMMET,NONMETALLIC Fits: All models	1	We can source it $80–$135 eachtypical
18	Electrical Contact Assembly NSN 5999-01-183-9530 · P/N 12339327 CONTACT ASSEMBLY,EL Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	1 in stock $34.29our price Buy online ↗
19	Nonmetallic Grommet NSN 5325-01-214-5007 · P/N 5579658 GROMMET,NONMETALLIC Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 16 more	1	We can source it
20	Tapping Screw NSN 5305-01-255-4611 · P/N 5593284 SCREW,TAPPING #8-32 X 5/8 Fits: All models	2	We can source it
21	Window Washer Nozzle NSN 2540-01-184-5503 · P/N D12604 NOZZLE,WINDSHIELD W Fits: All models	2	49 in stock
22	Nonmetallic Make From Hose Hose P/N SF5585258 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 1125218C1,27 INCHES LONG Fits: All models	1	Ask us
23	Hose Clamp NSN 4730-00-071-7890 · P/N SAE J1508 CLAMP,HOSE Fits: All models	4	90 in stock
24	Hose Tee NSN 4730-01-074-0060 · P/N 81087-5 TEE,HOSE Fits: All models	1	20 in stock
25	Loop Clamp NSN 5340-00-282-7517 · P/N MS21333-42 CLAMP,LOOP Fits: All models	4	We can source it
26	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE #10-24 X 3/4 Fits: All models	6	287 in stock
27	Nonmetallic Make From Hose Hose P/N 5585245 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 1125218C1,36 INCHES LONG Fits: All models	1	Ask us
28	Loop Clamp NSN 5340-00-843-7825 · P/N MS21333-68 CLAMP,LOOP Fits: All models	1	We can source it
29	Flat Washer NSN 5310-01-253-1618 · P/N MS51412-18 WASHER,FLAT #10 Fits: All models	14	We can source it
30	Plain Hexagon Nut NSN 5310-00-934-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON #10-24 Fits: All models	7	952 in stock
31	Window Washer Pump NSN 2540-01-385-9000 · P/N 203400 PUMP,WINDSHIELD WAS Fits: All models	1	40 in stock $90–$150 eachtypical
32	Window Washer Reservoir NSN 2540-01-386-8790 · P/N 203600 RESERVOIR,WINDSHIEL Fits: All models	1	363 in stock $55–$105 eachtypical
33	Packing Retainer NSN 5330-01-381-1810 · P/N 12342886 RETAINER,PACKING Fits: All models	1	25 in stock
34	Plain Hexagon Nut NSN 5310-00-934-9751 · P/N MS35650-302 NUT,PLAIN,HEXAGON #10-32 Fits: All models	1	700 in stock
35	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10 Fits: All models	1	709 in stock
36	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: All models	2	We can source it
37	Window Washer Pump NSN 2540-01-385-9031 · P/N 203500 PUMP,WINDSHIELD WAS Fits: All models	1	33 in stock $80–$135 eachtypical
38	Cap Hexagon Head Screw NSN 5305-01-143-2328 · P/N 454065 SCREW,CAP,HEXAGON H #10-32 X 3/4 Fits: All models	1	We can source it
39	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: All models	2	4,285 in stock
40	Plain Hexagon Nut NSN 5310-00-905-0762 · P/N MS51967-3 NUT,PLAIN,HEXAGON 1/4-20 Fits: All models	2	We can source it
41	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: All models	1	474 in stock
42	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: All models	1	We can source it
43	Cap Hexagon Head Screw NSN 5305-00-582-9501 · P/N 410-63 SCREW,CAP,HEXAGON H #10-32 X 1/2 Fits: All models	1	19 in stock
44	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All models	5	2,325 in stock
45	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All models	5	248 in stock
46	Loop Clamp NSN 5340-00-286-2494 · P/N MS21333-36 CLAMP,LOOP Fits: All models	4	We can source it
47	Nonmetallic Make From Hose Hose P/N SF5585243 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 1125218C1,16 INCHES LONG Fits: All models	1	Ask us
48	Machine Screw NSN 5305-00-240-6668 · P/N MS51849-78 SCREW,MACHINE #10-24 X 1.00 Fits: All models	1	We can source it
49	Plain Blind Rivet Nut NSN 5310-01-496-0115 · P/N S25P296 NUT,PLAIN,BLIND RIV Fits: All models	3	We can source it

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
