HMMWV Rearview Mirror and Mounting Hardware TM 9-2320-280-24P · Fig. 328

Every part in figure 328 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 20 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

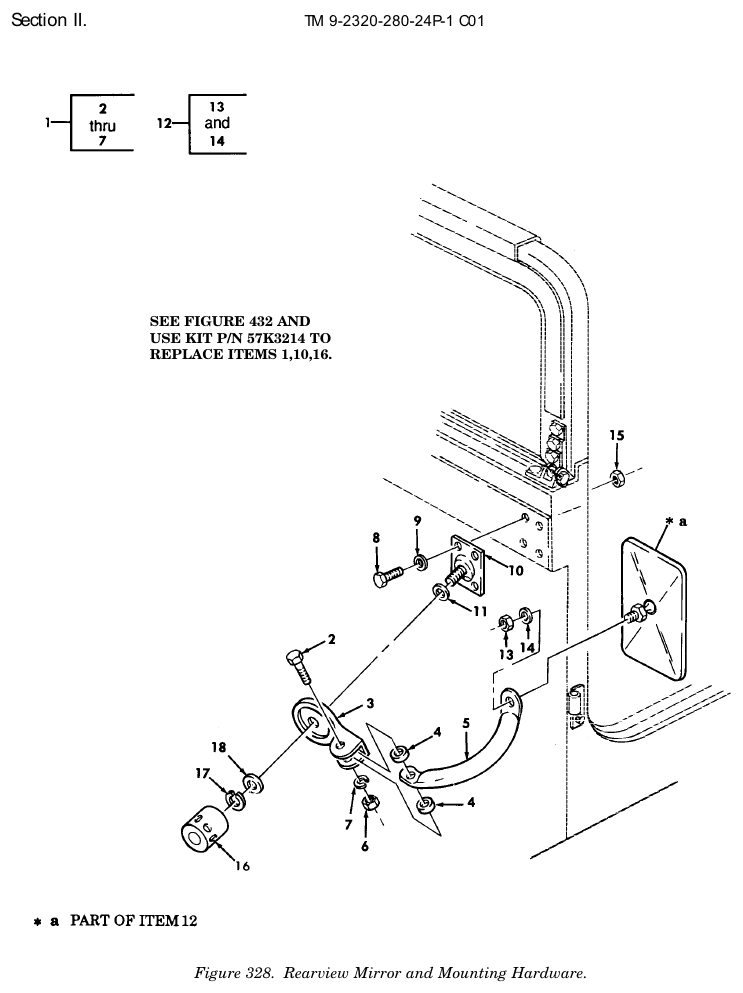

TM 9-2320-280-24P figure 328, Rearview Mirror and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Rearview Mirror L.h. Arm P/N 12338828-1 ARM,REARVIEW MIRROR L.H.,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	Ask us
1	Rearview Mirror R.h. Arm P/N 12338828-2 ARM,REARVIEW MIRROR R.H.,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	Ask us
2	Machine Bolt NSN 5306-00-226-4829 · P/N B1821BH031C125N BOLT,MACHINE 5/16-18 X 1.25,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	74 in stock
3	Bracket P/N 12338848 BRACKET,MIRROR PIVO USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	Ask us
4	Flat Washer NSN 5310-01-185-8692 · P/N 5585152 WASHER,FLAT 3/8,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	2	We can source it
5	Arm P/N 12338847 ARM,REARVIEW MIRROR USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	Ask us
6	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	354 in stock
7	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	2,036 in stock
8	Machine Bolt NSN 5306-00-226-4826 · P/N B1821BH031C088N BOLT,MACHINE 5/16-18 X 7/8,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	8	188 in stock
9	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	8	471 in stock
10	Rearview Mirror Arm NSN 2540-01-184-5500 · P/N 12340025 ARM,REARVIEW MIRROR L.H.,USBL EFF 1 THRI 99,999 Fits: All A0 models except M1097, plus M1121	1	4 in stock
10	Rearview Mirror R.h. Arm P/N 5575967 ARM,REARVIEW MIRROR R.H.,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	Ask us
11	Flat Washer NSN 5310-01-259-7554 · P/N 5597347 WASHER,FLAT 1/2,USBL EFF 1 THRU 99, 999 Fits: All A0 models except M1097, plus M1121	2	We can source it
12	Rearview Mirror Assembly NSN 2540-00-840-0022 · P/N A52432-1 MIRROR ASSEMBLY,REA USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	2	249 in stock $34.00our price Buy online ↗
13	Self-Locking Hexagon Nut NSN 5310-00-877-5796 · P/N MS21044-N4 NUT,SELF-LOCKING,HE 1/4-28,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	79 in stock
14	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 9/32,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	2,325 in stock
15	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	8	354 in stock
16	Plain Round Nut NSN 5310-01-256-0416 · P/N 5595964 NUT,PLAIN,ROUND USBL EFF 1 THRU 99, 999 Fits: All A0 models except M1097, plus M1121	2	We can source it $995.07 per eachgov't list price
17	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8,USBL EFF 1 THRU 99, 999 Fits: All A0 models except M1097, plus M1121	2	1,162 in stock
18	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8,USBL EFF 1 THRU 99, 999 Fits: All A0 models except M1097, plus M1121	2	1,146 in stock $7.83our price Buy online ↗

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
