HMMWV Antenna Mount and Mounting Hardware, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 341

Every part in figure 341 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 9 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

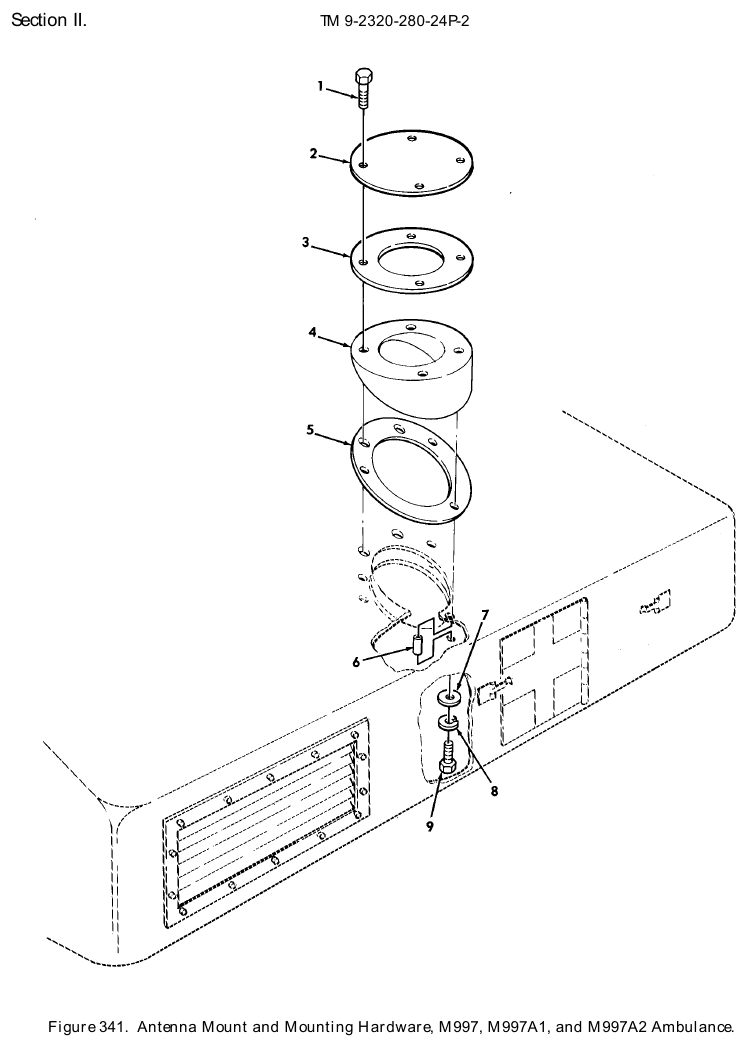

TM 9-2320-280-24P figure 341, Antenna Mount and Mounting Hardware, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-543-2419 · P/N B1821BH038C113N SCREW,CAP,HEXAGON H 3/8-16 X 1.125 Fits: M997, M997A1, M997A2	4	1,168 in stock
2	Antenna Support NSN 5985-01-269-8271 · P/N 5598650 SUPPORT,ANTENNA Fits: M997, M997A1, M997A2	1	We can source it $279.52 per eachgov't list price
3	Gasket NSN 5330-01-270-8315 · P/N 12341876 GASKET Fits: M997, M997A1, M997A2	1	We can source it
4	Antenna Support Base NSN 5985-01-269-8274 · P/N 12341108 BASE,ANTENNA SUPPOR Fits: M997, M997A1, M997A2	1	We can source it $107.08 per eachgov't list price
5	Gasket NSN 5330-01-282-0913 · P/N 5589970 GASKET Fits: M997, M997A1, M997A2	1	We can source it
6	Frame Spacer P/N 5934310 SPACER,FRAME Fits: M997, M997A1, M997A2	3	Ask us
7	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 Fits: M997, M997A1, M997A2	3	6 in stock
8	Lock Washer NSN 5310-00-261-7340 · P/N MS35338-8 WASHER,LOCK 3/8 Fits: M997, M997A1, M997A2	3	We can source it
9	Cap Hexagon Head Screw NSN 5305-00-638-8920 · P/N B1821BH038C225N SCREW,CAP,HEXAGON H 3/8-16 X 2.250 Fits: M997, M997A1, M997A2	3	116 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
