HMMWV Heater Grille, Exhaust Pipe, and Mounting Hardware, M997, M997A1, and M997A2, Ambulance TM 9-2320-280-24P · Fig. 347

Every part in figure 347 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 10 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

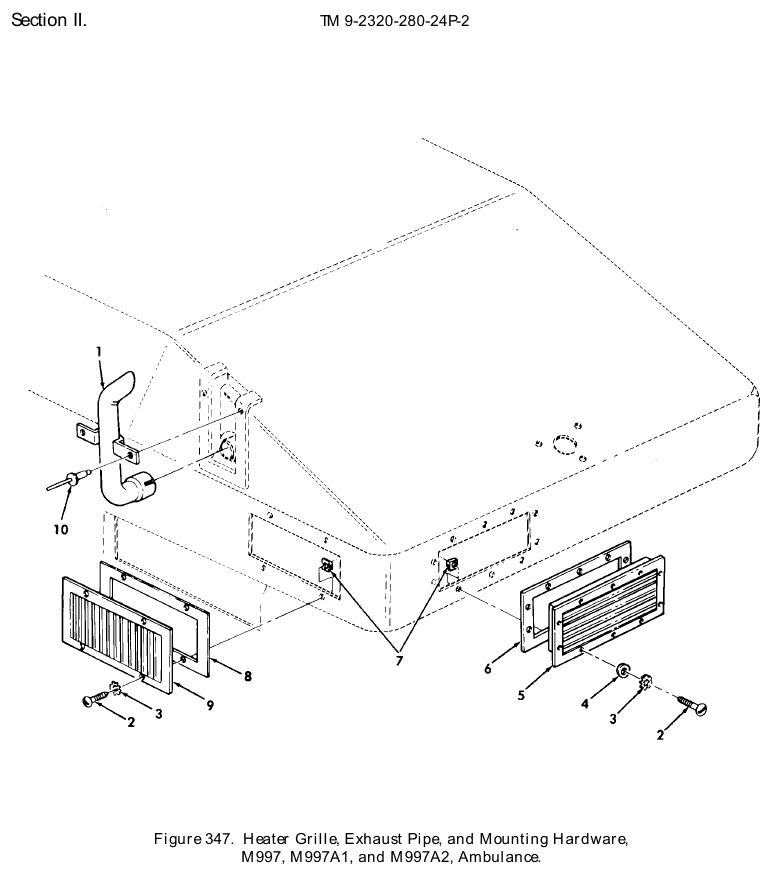

TM 9-2320-280-24P figure 347, Heater Grille, Exhaust Pipe, and Mounting Hardware, M997, M997A1, and M997A2, Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Exhaust Pipe NSN 2990-01-265-3298 · P/N 513462 PIPE,EXHAUST Fits: M997, M997A1, M997A2	1	1 in stock $170.79 per eachgov't list price
2	Machine Screw NSN 5305-01-255-4606 · P/N 5592900 SCREW,MACHINE #10-24 X 1/2 Fits: M997, M997A1, M997A2	14	We can source it
3	Lock Washer NSN 5310-00-080-9786 · P/N MS45904-60 WASHER,LOCK #10 Fits: M997, M997A1, M997A2	14	8 in stock
4	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M997, M997A1, M997A2	10	909 in stock
5	Radiator Vehicular Grille NSN 2510-01-270-7919 · P/N 12341533 GRILLE,RADIATOR,VEH Fits: M997, M997A1, M997A2	1	2 in stock
6	Gasket NSN 5330-01-272-7472 · P/N 12341514 GASKET Fits: M997, M997A1, M997A2	1	We can source it $25–$40 eachtypical
7	Sheet Spring Nut NSN 5310-01-215-5356 · P/N C8117-1024 NUT,SHEET SPRING #10-24 Fits: M997, M997A1, M997A2	14	94,824 in stock
8	Gasket NSN 5330-01-272-7471 · P/N 12341487 GASKET Fits: M997, M997A1, M997A2	1	We can source it $25–$40 eachtypical
9	Air Circulating Ventilator NSN 2540-01-271-2839 · P/N 12341088 VENTILATOR,AIR CIRC Fits: M997, M997A1, M997A2	1	67 in stock $556.88our price Buy online ↗
10	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	2	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
