HMMWV Heater Assembly, Multifuel, A-Model, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 348

Every part in figure 348 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 40 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

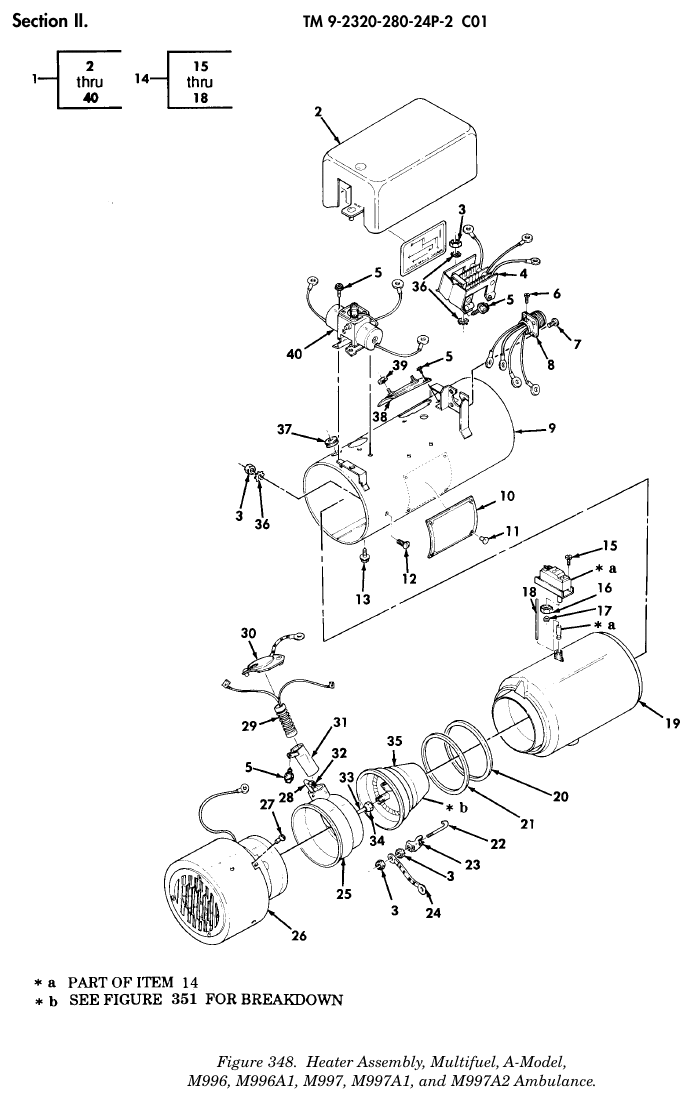

TM 9-2320-280-24P figure 348, Heater Assembly, Multifuel, A-Model, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Compartment Heater NSN 2540-01-194-3323 · P/N MIL-PRF-62550/3 HEATER,VEHICULAR,CO Fits: M996, M996A1, M997, M997A1, M997A2	1	88 in stock $11,926.48our price Buy online ↗
2	Electrical Connector Cover NSN 5935-01-163-8981 · P/N G704183 COVER,ELECTRICAL CO Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $484.84 per eachgov't list price
3	Plain Hexagon Nut P/N 487283 NUT,PLAIN,HEXAGON PART OF KIT P/N 5704052 PART OF KIT P/N G704424 Fits: M996, M996A1, M997, M997A1, M997A2	4	Ask us
4	Resistor Assembly NSN 5905-00-251-7145 · P/N 11663061 RESISTOR ASSEMBLY Fits: M996, M996A1, M997, M997A1, M997A2	1	10 in stock $413.82 per eachgov't list price
5	Machine Screw NSN 5305-00-403-5130 · P/N 423531 SCREW,MACHINE #8-32 X 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	3	We can source it $25–$40 eachtypical
6	Assembled Washer Screw NSN 5305-00-456-2582 · P/N 170677 SCREW,ASSEMBLED WAS Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
7	Assembled Washer Screw NSN 5305-00-135-3032 · P/N 488558 SCREW,ASSEMBLED WAS #6-32 X 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it $25–$55 eachtypical
8	Receptacle Electrical Connector NSN 5935-01-163-8987 · P/N G704234 CONNECTOR,RECEPTACL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $818.62 per eachgov't list price
9	Housing Assembly P/N G704213 HOUSING ASSEMBLY,HE Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
10	Identification Plate NSN 9905-01-017-4748 · P/N 704501 PLATE,IDENTIFICATIO Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
11	Blind Rivet NSN 5320-00-801-1548 · P/N 488755 RIVET,BLIND Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it $35–$70 eachtypical
12	Assembled Washer Screw NSN 5305-00-576-2335 · P/N 487357 SCREW,ASSEMBLED WAS #8-32 X 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
13	Machine Screw NSN 5305-00-403-5130 · P/N 423531 SCREW,MACHINE #8-32 X 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	9	We can source it $25–$40 eachtypical
14	Thermostatic Switch NSN 5930-00-345-5455 · P/N 11663057 SWITCH,THERMOSTATIC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $2,726.47 per eachgov't list price
15	Assembled Washer Screw NSN 5305-00-456-2582 · P/N 170677 SCREW,ASSEMBLED WAS Fits: M996, M996A1, M997, M997A1, M997A2	5	We can source it
16	Tube Coupling Nut NSN 4730-00-011-4627 · P/N 4-060110B NUT,TUBE COUPLING 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	1	8 in stock
17	Compression Tube-Hose Fit Sleeve NSN 4730-01-193-7390 · P/N 222-652 SLEEVE,COMPRESSION, Fits: M996, M996A1, M997, M997A1, M997A2	1	23 in stock
18	Nonexpansive Rod NSN 2540-00-216-5722 · P/N 704225 ROD,NONEXPANSIVE Fits: M996, M996A1, M997, M997A1, M997A2	1	13 in stock $203.75 per eachgov't list price
19	Heat Exchanger NSN 2540-01-165-0465 · P/N G704232 HEAT EXCHANGER Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $4,428.35 per eachgov't list price
20	Gasket P/N 702903 GASKET PART OF KIT P/N 5704052 PART OF KIT P/N G704424 PART OF KIT P/N G706055 Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
21	O-Ring P/N 718768-23 O-RING PART OF KIT P/N 5704052 PART OF KIT P/N G704424 PART OF KIT P/N G706055 Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
22	Hook Bolt P/N 703547 BOLT,HOOK PART OF KIT P/N 5704052 PART OF KIT P/N G704424 PART OF KIT P/N G706055 Fits: M996, M996A1, M997, M997A1, M997A2	2	Ask us
23	Clamp P/N 703546 CLAMP,RIM CLENCHING PART OF KIT P/N 5704052 PART OF KIT P/N G704424 PART OF KIT P/N G706055 Fits: M996, M996A1, M997, M997A1, M997A2	4	Ask us
24	Electrical Lead NSN 6150-01-165-4667 · P/N G704373 LEAD,ELECTRICAL Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it quote only $55–$105 eachtypical
25	Baffle Heater Housing NSN 2540-01-165-8175 · P/N G704177 HOUSING,BAFFLE,HEAT Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $353.87 per eachgov't list price
26	Blower Assembly NSN 2540-01-008-1501 · P/N G704554 BLOWER ASSEMBLY Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
27	Machine Screw NSN 5305-00-018-8370 · P/N 489142 SCREW,MACHINE #8-3/8 X 1.00 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it $25–$40 eachtypical
28	Metal Tube Assembly NSN 4710-01-163-2805 · P/N 704363 TUBE ASSEMBLY,METAL Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it $344.69 per assemblygov't list price
29	Spark Fuel Igniter NSN 4520-00-217-5782 · P/N CS-4520-SV-0705 IGNITER,SPARK,FUEL Fits: M996, M996A1, M997, M997A1, M997A2	1	221 in stock $269.85our price Buy online ↗
30	Access Cover NSN 5340-01-165-0745 · P/N G704293 COVER,ACCESS Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $95–$160 eachtypical
31	Igniter Tube and Bracket Assembl NSN 2540-01-165-8176 · P/N G704288-1 IGNITER TUBE AND BR Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $203.48 per eachgov't list price
32	Tube Fitting Locknut NSN 4730-01-153-1871 · P/N 1611X3 LOCKNUT,TUBE FITTIN Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
33	Compression Tube-Hose Fit Sleeve NSN 4730-00-701-7737 · P/N 476624 SLEEVE,COMPRESSION, Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock
34	Tube Coupling Nut NSN 4730-00-043-3750 · P/N 120487 NUT,TUBE COUPLING Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock
35	Burner Assembly P/N G706037 BURNER ASSEMBLY PART OF KIT P/N G704424 PART OF KIT P/N G706055 Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
36	Lock Washer NSN 5310-00-061-0004 · P/N 475005 WASHER,LOCK Fits: M996, M996A1, M997, M997A1, M997A2	3	4 in stock
37	Nonmetallic Grommet NSN 5325-00-543-2902 · P/N 488993 GROMMET,NONMETALLIC Fits: M996, M996A1, M997, M997A1, M997A2	1	150 in stock
38	Thermostatic Switch NSN 5930-00-679-5925 · P/N 10948233 SWITCH,THERMOSTATIC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $543.55 per eachgov't list price
39	Plain Assembled Washer Nut NSN 5310-00-063-7360 · P/N 841-6-32 NUT,PLAIN,ASSEMBLED #6-32 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
40	Fuel Valve Assembly NSN 4810-00-248-1635 · P/N 11663058 VALVE ASSEMBLY,FUEL Fits: M996, M996A1, M997, M997A1, M997A2	1	2 in stock $698.00 per eachgov't list price

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
