HMMWV Heater Component Bracket Assembly, B-Model, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 349

Every part in figure 349 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 16 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

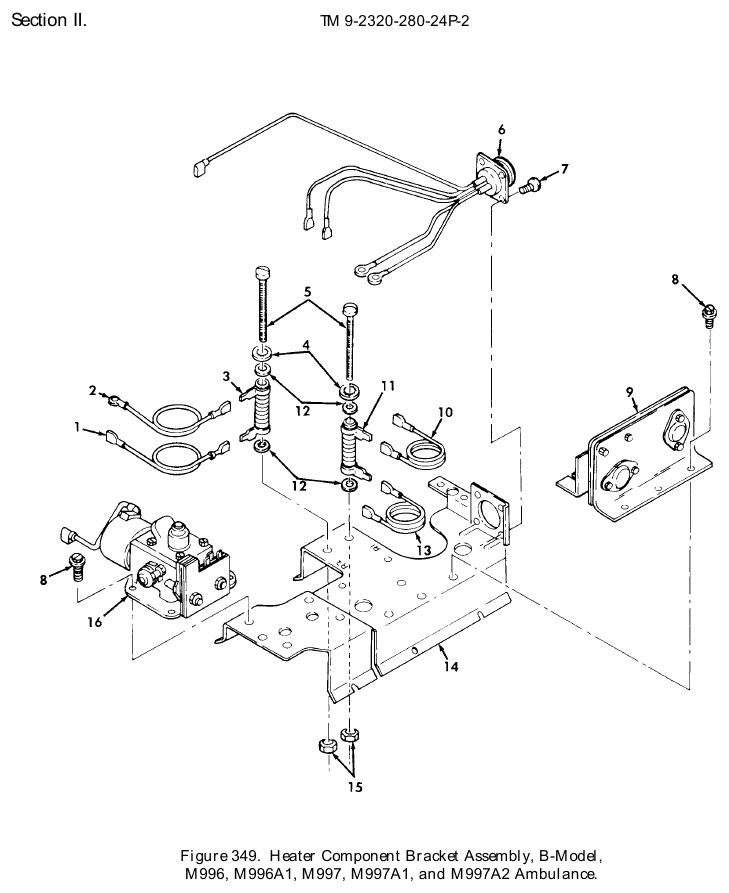

TM 9-2320-280-24P figure 349, Heater Component Bracket Assembly, B-Model, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Electrical Lead NSN 6150-01-287-9925 · P/N G706052-13 LEAD,ELECTRICAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $503.12 per eachgov't list price
2	Electrical Lead NSN 6150-01-287-9924 · P/N G706052-15 LEAD,ELECTRICAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $362.56 per eachgov't list price
3	Fixed Wire Wound Induct Resistor NSN 5905-01-287-4255 · P/N 706053 RESISTOR,FIXED,WIRE Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $167.42 per eachgov't list price
4	Lock Washer NSN 5310-00-576-5752 · P/N MS35333-39 WASHER,LOCK #10 Fits: M996, M996A1, M997, M997A1, M997A2	2	757 in stock
5	Machine Screw NSN 5305-01-288-1130 · P/N 703611 SCREW,MACHINE #10-32 X 2-1/2 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it $30–$60 eachtypical
6	Electrical Lead Assembly NSN 6150-01-293-4074 · P/N G706026 LEAD ASSEMBLY,ELECT Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $539.78 per eachgov't list price
7	Machine Screw NSN 5305-01-288-1129 · P/N 705211 SCREW,MACHINE #5-40 X 5/16 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
8	Machine Screw NSN 5305-00-115-9406 · P/N MS51849-53 SCREW,MACHINE #8-32 X 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	7	We can source it
9	Voltage Regulator Group NSN 6110-01-285-3902 · P/N G706057 VOLTAGE REGULATOR G Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $3,797.74 per eachgov't list price
10	Electrical Lead NSN 6150-01-287-9923 · P/N G706052-19 LEAD,ELECTRICAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $501.69 per eachgov't list price
11	Fixed Wire Wound Induct Resistor NSN 5905-01-287-4256 · P/N 706045 RESISTOR,FIXED,WIRE Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $208.10 per eachgov't list price
12	Flat Washer NSN 5310-01-287-6557 · P/N 706050GV WASHER,FLAT 5/16 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it $70–$120 eachtypical
13	Electrical Lead NSN 6150-01-287-9926 · P/N G706052-17 LEAD,ELECTRICAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $181.15 per eachgov't list price
14	Component Bracket P/N G706024 COMPONENT BRACKET Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
15	Plain Assembled Washer Nut NSN 5310-00-789-0398 · P/N 487370 NUT,PLAIN,ASSEMBLED #10-32 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
16	Fuel Valve NSN 2540-01-253-6112 · P/N G706016 FUEL VALVE Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $3,341.68 per eachgov't list price

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
