HMMWV Data Plates, Battery Cable and Slave Receptacle TM 9-2320-280-24P · Fig. 355

Every part in figure 355 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2210 Data Plates and Instruction Holders: 40 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

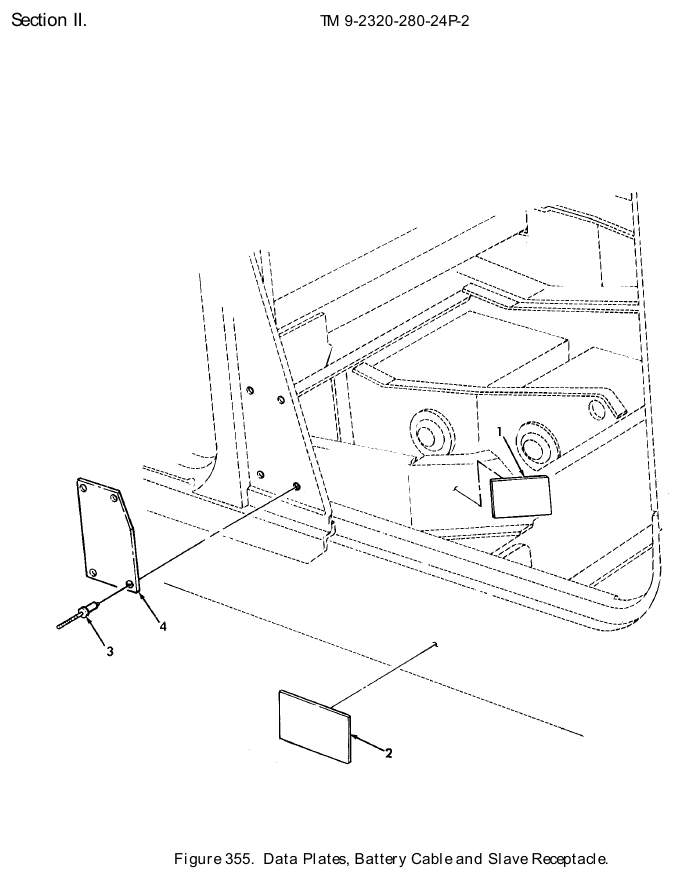

TM 9-2320-280-24P figure 355, Data Plates, Battery Cable and Slave Receptacle: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Instruction Plate NSN 9905-01-185-3143 · P/N 12339107 PLATE,INSTRUCTION CONNECTING BATTERY CABLES Fits: All models	1	1 in stock
2	Instruction Plate NSN 9905-01-187-9468 · P/N 12339087 PLATE,INSTRUCTION SLAVE RECEPTACLE Fits: All models	1	We can source it
3	Blind Rivet NSN 5320-00-083-5009 · P/N M24243/1-A403 RIVET,BLIND 1/8 DIA.,.126-.187 GRIP,USBL EFF 100,000 AND ABOVE Fits: All models	4	641 in stock
3	Blind Rivet NSN 5320-01-019-5694 · P/N M24243/1A402 RIVET,BLIND 1/8 DIA.,.063-.125 GRIP,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	4	We can source it
4	Identification Plate NSN 9905-01-362-2014 · P/N 12342653 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1097	1	99 in stock $25–$50 eachtypical
4	Identification Plate NSN 9905-01-248-9544 · P/N 12339900 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M998	1	9 in stock
4	Identification Plate NSN 9905-01-248-1111 · P/N 12340653 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M996	1	We can source it
4	Identification Plate NSN 9905-01-248-1112 · P/N 12340322 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M966	1	3 in stock
4	Identification Plate NSN 9905-01-248-9543 · P/N 12340321 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1025	1	5 in stock $25–$40 eachtypical
4	Identification Plate NSN 9905-01-185-7970 · P/N 12340323 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M997	1	We can source it
4	Identification Plate NSN 9905-01-248-1113 · P/N 12340318 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1026	1	We can source it
4	Identification Plate NSN 9905-01-248-1114 · P/N 12340320 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1035	1	We can source it $225.75 per eachgov't list price
4	Identification Plate NSN 9905-01-248-9545 · P/N 12339987 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1037	1	We can source it
4	Identification Plate NSN 9905-01-248-9546 · P/N 12339901 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1038	1	We can source it
4	Identification Plate NSN 9905-01-248-9547 · P/N 12341836 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1042	1	We can source it $212.85 per eachgov't list price
4	Identification Plate NSN 9905-01-248-9548 · P/N 12340324 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1043	1	We can source it $25–$45 eachtypical
4	Identification Plate NSN 9905-01-248-9549 · P/N 12340325 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1044	1	We can source it $112.37 per eachgov't list price
4	Instruction Plate NSN 9905-01-248-9552 · P/N 12340326 PLATE,INSTRUCTION WEIGHT AND DIMENSIONAL DATA Fits: M1045	1	We can source it
4	Identification Plate NSN 9905-01-248-1115 · P/N 12340327 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1046	1	We can source it $25–$40 eachtypical
4	Identification Plate NSN 9905-01-393-3795 · P/N 12342987 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M966A1	1	We can source it $25–$55 eachtypical
4	Identification Plate NSN 9905-01-392-5795 · P/N 12342980 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M998A1	1	We can source it
4	Instruction Plate NSN 9905-01-392-5794 · P/N 12343043 PLATE,INSTRUCTION WEIGHT AND DIMENSIONAL DATA Fits: M1038A1	1	We can source it $80–$130 eachtypical
4	Identification Plate NSN 9905-01-392-5797 · P/N 12343011 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M997A1	1	We can source it
4	Identification Plate NSN 9905-01-392-5798 · P/N 12343001 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1035A1	1	We can source it
4	Identification Plate NSN 9905-01-392-5796 · P/N 12342993 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1045A1	1	We can source it
4	Identification Plate NSN 9905-01-393-1830 · P/N 12342999 PLATE,IDENTIFICATIO IDENTIFICATION, WEIGHT AND DIMENSIONAL DATA Fits: M1043A1	1	We can source it
4	Identification Plate NSN 9905-01-392-5796 · P/N 12343049 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1044A1	1	We can source it
4	Identification Plate NSN 9905-01-393-1833 · P/N 12343048 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1046A1	1	We can source it
4	Identification Plate NSN 9905-01-393-7128 · P/N 12343018 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1097A1	1	69 in stock
4	Identification Plate NSN 9905-01-392-5799 · P/N 12343025 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M996A1	1	We can source it $30–$60 eachtypical
4	Identification Plate NSN 9905-01-393-1834 · P/N 12342991 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1025A1	1	We can source it
4	Identification Plate NSN 9905-01-392-5800 · P/N 12343040 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1026A1	1	We can source it $25–$40 eachtypical
4	Plate NSN 9905-01-448-9783 · P/N 12446782 PLATE,INSTRUCTION WEIGHT AND DIMENSIONAL DATA Fits: M1097A2	1	We can source it
4	Plate NSN 9905-01-449-0476 · P/N 12446801 PLATE,INSTRUCTION WEIGHT AND DIMENSIONAL DATA Fits: M997A2	1	We can source it
4	Plate NSN 9905-01-446-5771 · P/N 12446794 PLATE,INSTRUCTION WEIGHT AND DIMENSIONAL DATA Fits: M1035A2	1	We can source it
4	Identification Plate NSN 9905-01-446-5768 · P/N 12446791 PLATE,IDENTIFICATIO WEIGHT AND DIMENSIONAL DATA Fits: M1045A2	1	We can source it
4	Plate NSN 9905-01-448-9784 · P/N 12446788 PLATE,INSTRUCTION WEIGHT AND DIMENSIONAL DATA Fits: M1043A2	1	We can source it
4	Instruction Plate NSN 9905-01-446-6187 · P/N 12446785 PLATE,INSTRUCTION WEIGHT AND DIMENSIONAL DATA Fits: M1025A2	1	We can source it
4	Decal NSN 7690-01-481-4906 · P/N 12469100 DECAL Fits: M1121	1	We can source it
4	Instruction Plate NSN 9905-01-486-0051 · P/N 12469323 PLATE,INSTRUCTION Fits: M1123	1	We can source it $25–$40 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
