HMMWV Arctic Kit, Fuel Injection Pump, Engine Gaskets, and CDR Tube TM 9-2320-280-24P · Fig. 364

Every part in figure 364 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 9 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

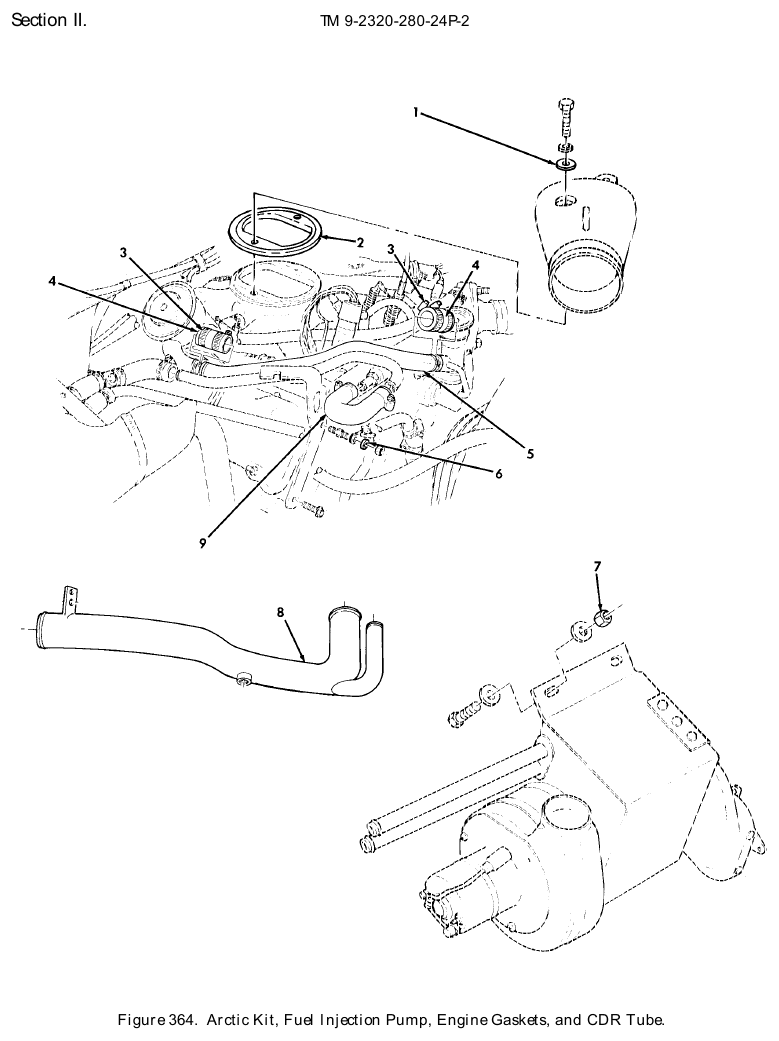

TM 9-2320-280-24P figure 364, Arctic Kit, Fuel Injection Pump, Engine Gaskets, and CDR Tube: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer NSN 5310-01-185-7214 · P/N 12339052 WASHER,FLAT PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	27 in stock
2	Gasket NSN 5330-01-246-1822 · P/N 12338382 GASKET PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	153 in stock
3	Hose Clamp NSN 4730-00-908-3193 · P/N WWD48-58H CLAMP,HOSE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	168 in stock
4	Nonmetallic Hose NSN 4720-01-211-1998 · P/N 12340492 HOSE,NONMETALLIC PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	We can source it $25–$40 eachtypical
5	Metal Tube Assembly NSN 4710-01-257-2649 · P/N 12340498 TUBE ASSEMBLY,METAL PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $103.91 per eachgov't list price
6	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	1 in stock
7	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	354 in stock
8	Bent Metallic Tube NSN 4710-01-188-0028 · P/N 5578604 TUBE,BENT,METALLIC PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	7 in stock $215.00our price Buy online ↗
9	Preformed Hose NSN 4720-01-257-2655 · P/N 12340493 HOSE,PREFORMED PART OF KIT P/N 5705698 Fits: All A1 models, plus M966, M998, M1038, M1097	1	We can source it $65–$115 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
