HMMWV Arctic Kit, Pan Cover and Heater Tube TM 9-2320-280-24P · Fig. 365

Every part in figure 365 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 26 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

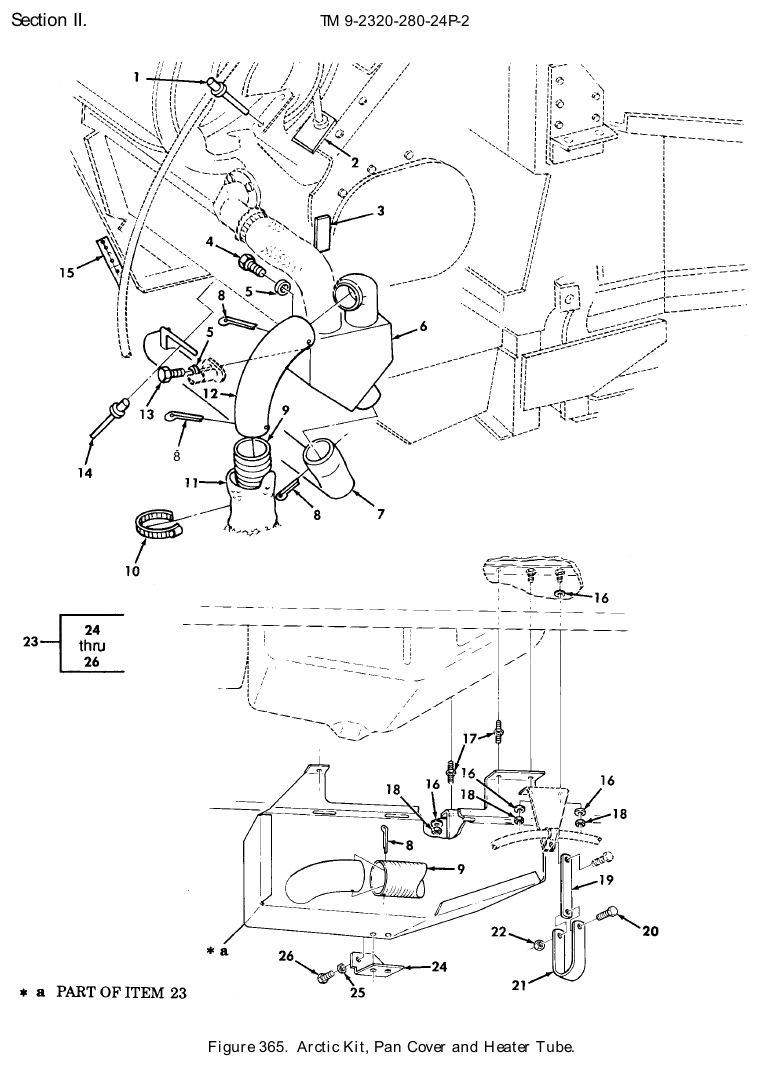

TM 9-2320-280-24P figure 365, Arctic Kit, Pan Cover and Heater Tube: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-135-7319 · P/N CR-213-6-3 RIVET,BLIND PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	72 in stock
2	Template P/N 12340722 TEMPLATE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	Ask us
3	Template P/N 12342103 TEMPLATE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	Ask us
4	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	248 in stock
5	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	4,285 in stock
6	E Diverter Assembly NSN 2540-01-197-5449 · P/N 12342082 DIVERTER ASSEMBLY,E PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $30–$65 per assemblytypical
7	Exhaust Pipe NSN 2990-01-323-2562 · P/N 12342094 PIPE,EXHAUST PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $1,410.95 per eachgov't list price
8	Cotter Pin NSN 5315-00-285-7161 · P/N MS24665-377 PIN,COTTER PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	4	400 in stock
9	Exhaust Pipe NSN 2990-01-394-9670 · P/N 12340587-3 PIPE,EXHAUST PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $60–$105 eachtypical
10	Hose Clamp NSN 4730-00-908-3193 · P/N WWD48-58H CLAMP,HOSE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	168 in stock
11	Exhaust Pipe Connector NSN 2990-01-322-9880 · P/N 12342087-2 CONNECTOR,EXHAUST P PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $70–$115 eachtypical
12	Exhaust Pipe NSN 2990-01-394-3751 · P/N 12342089 PIPE,EXHAUST PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $95–$155 eachtypical
13	Cap Hexagon Head Screw NSN 5305-00-071-2506 · P/N B1821BH025C050N SCREW,CAP,HEXAGON H 1/4-20 X 1/2 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	300 in stock
14	Blind Rivet NSN 5320-01-271-6357 · P/N 12339355-1 RIVET,BLIND PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	4	We can source it
15	Template P/N 12340695 TEMPLATE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	Ask us
16	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	10	2,325 in stock
17	Shouldered Stud NSN 5307-01-150-5992 · P/N 14066307 STUD,SHOULDERED PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	7	We can source it $25–$55 eachtypical
18	Self-Locking Extended Washer Nut NSN 5310-01-206-5479 · P/N 11516075 NUT,SELF-LOCKING,HE M6-1.0MM PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	10	We can source it
19	Anchor Strap NSN 5342-01-326-2583 · P/N 12342085 ANCHOR STRAP PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $55–$95 eachtypical
20	Machine Screw NSN 5305-00-180-4966 · P/N MS51849-64 SCREW,MACHINE #10-32 X 1/2 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it
21	Loop Clamp NSN 5340-00-988-3186 · P/N MS21333-19 CLAMP,LOOP PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it
22	Self-Locking Hexagon Nut NSN 5310-00-061-7326 · P/N MS21045-3 NUT,SELF-LOCKING,HE 3/8-32 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	40 in stock
23	Artic Shroud NSN 2540-01-197-5460 · P/N 12342088 SHRUOD,ARCTIC PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $865.99 per eachgov't list price
24	Angle Bracket NSN 5340-01-395-1244 · P/N 12340474 BRACKET,ANGLE Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$40 eachtypical
25	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All A0 and A1 models, plus M1121	4	2,325 in stock
26	Cap Hexagon Head Screw NSN 5305-00-071-2506 · P/N B1821BH025C050N SCREW,CAP,HEXAGON H 1/4/-20 X 1/2 Fits: All A0 and A1 models, plus M1121	4	300 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
