HMMWV Arctic Kit, Door Hinges, and Curtain Channels TM 9-2320-280-24P · Fig. 377

Every part in figure 377 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 16 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

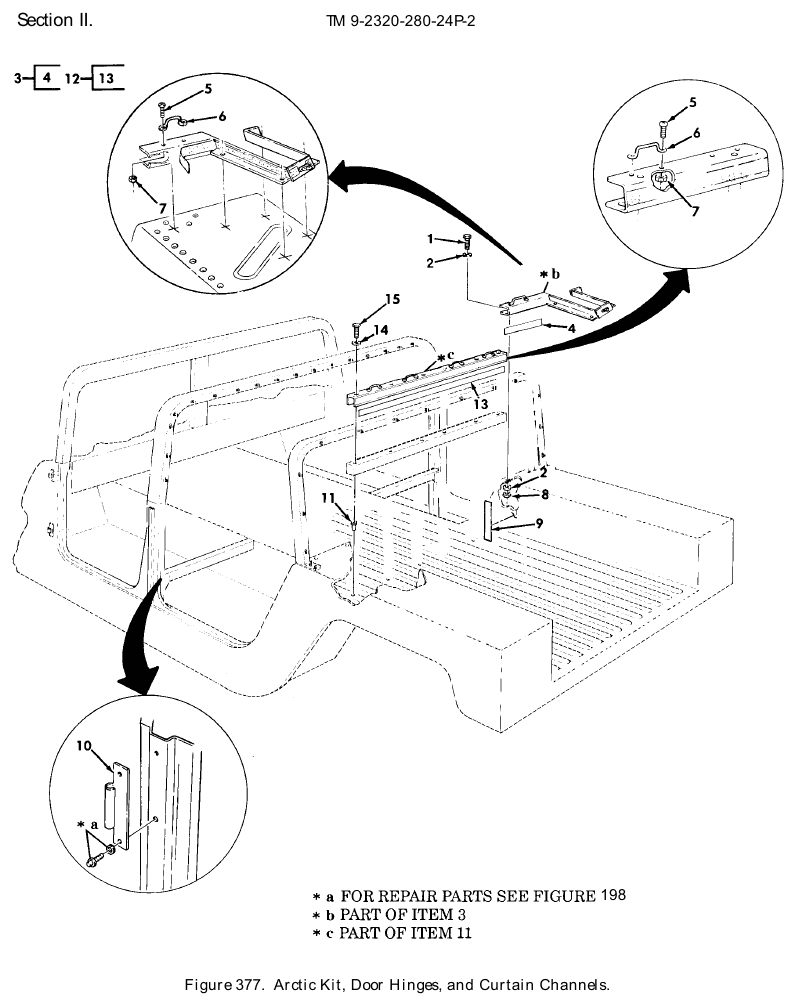

TM 9-2320-280-24P figure 377, Arctic Kit, Door Hinges, and Curtain Channels: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	10	471 in stock
2	Flat Washer NSN 5310-01-199-2293 · P/N 9421394 WASHER,FLAT 1/4 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	20	We can source it
3	Mounting Bracket NSN 5340-01-396-8322 · P/N 12342496 BRACKET,MOUNTING R.H. PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $478.17 per eachgov't list price
3	Mounting Bracket NSN 5340-01-385-0057 · P/N 12342495 BRACKET,MOUNTING L.H. PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	1 in stock $5,720.23 per eachgov't list price
4	Fastener Make From Fastener Tape P/N 12340700-14 TAPE,FASTENER MAKE FROM FASTENER, TAPE,HOOK P/N 20197272,14 INCHES LONG Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	Ask us
5	Machine Screw NSN 5305-00-984-7341 · P/N MS35191-273 SCREW,MACHINE #10-32 X 5/8 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	12	4,000 in stock
6	Bow Handle NSN 5340-01-197-8673 · P/N 12338839-4 HANDLE,BOW PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	14 in stock
7	Self-Locking Hexagon Nut NSN 5310-00-164-1790 · P/N 454749 NUT,SELF-LOCKING,HE #10-32 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	12	We can source it
8	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	10	184 in stock
9	Tape P/N 12340700-16 TAPE,FASTENER HOOK MAKE FROM FASTENER,TAPE,HOOK P/N 20197272,16 INCHES LONG PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	Ask us
10	Hinge Mount NSN 5342-01-203-2822 · P/N 12338650 MOUNT,RESILIENT PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	24,044 in stock $10.00our price Buy online ↗
11	Plain Blind Rivet Nut NSN 5310-01-085-1208 · P/N MS27130-S71 NUT,PLAIN,BLIND RIV .030-.125 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	We can source it
12	Automotive Trim Bezel NSN 2590-01-333-2999 · P/N 12342152 BEZEL,AUTOMOTIVE TR PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	12 in stock $736.47 per eachgov't list price
13	Fastener Make From Fastener Tape P/N 12340700-15 TAPE,FASTENER MAKE FROM FASTENER, TAPE,HOOK P/N 20197272,15 INCHES LONG Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	Ask us
14	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 11/32 PART OF KIT P/N 5705692 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	1,368 in stock
15	Machine Bolt NSN 5306-00-226-4833 · P/N B1821BH031C200N BOLT,MACHINE 5/16-18 X 2.00 PART OF Fits: All models	6	23 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
