HMMWV Cargo Floor Cover and Harness Assembly TM 9-2320-280-24P · Fig. 383

Every part in figure 383 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 9 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

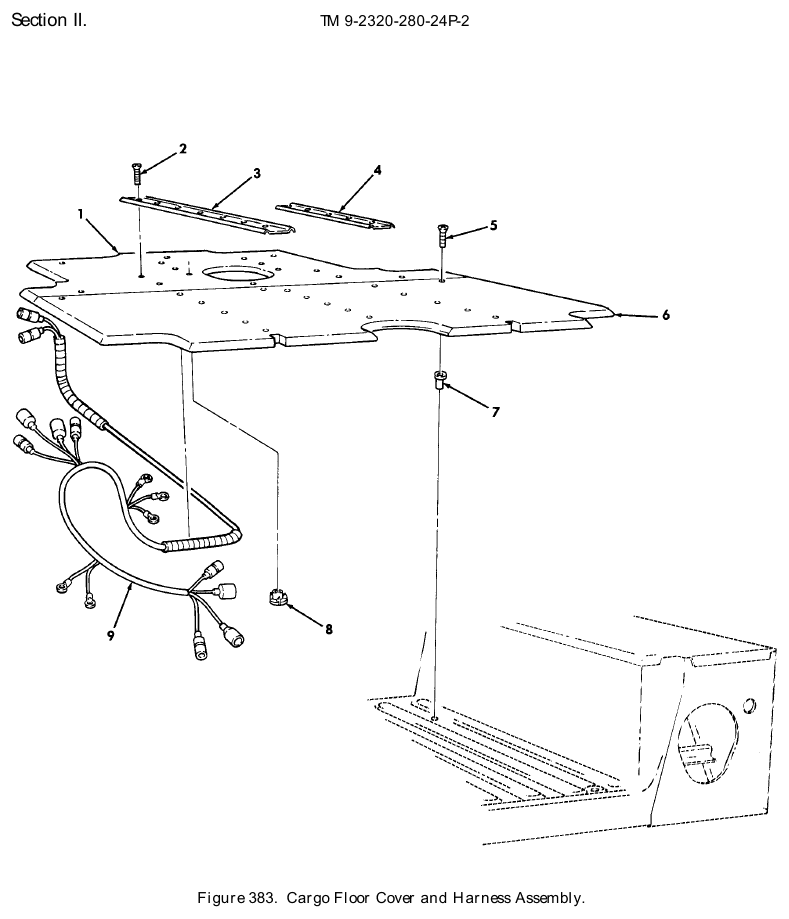

TM 9-2320-280-24P figure 383, Cargo Floor Cover and Harness Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Floor Cover Assembl P/N 12342178 FLOOR COVER ASSEMBL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	Ask us
2	Wood Screw NSN 5305-00-902-6643 · P/N MS35492-76 SCREW,WOOD #10 X .75 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	19	We can source it
3	Automotive Trim Bezel NSN 2590-01-317-4856 · P/N 12342179 MOLDING,METAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	5 in stock $90–$155 eachtypical
4	Metal Molding NSN 2590-01-317-3953 · P/N 12342203 MOLDING,METAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $60–$105 eachtypical
5	Machine Screw NSN 5305-00-958-5262 · P/N MS35190-324 SCREW,MACHINE 3/8-16 X 2.25 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	9	We can source it
6	Floor Cover Assembl P/N 12342177 FLOOR COVER ASSEMBL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	Ask us
7	Plain Blind Rivet Nut NSN 5310-01-283-8482 · P/N MS27130-CR31 NUT,PLAIN,BLIND RIV 3/8-16 PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	9	We can source it
8	Plain Plate Nut NSN 5310-01-025-6444 · P/N MS51941-10 NUT,PLAIN,PLATE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	6	We can source it
9	Special Purpose E Cable Assembly NSN 6150-01-324-6356 · P/N 12342255 CABLE ASSEMBLY,SPEC PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $5,428.11 per eachgov't list price

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
