HMMWV Winterization Kit, Fuel Pump, and Attaching Hardware TM 9-2320-280-24P · Fig. 384

Every part in figure 384 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 15 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

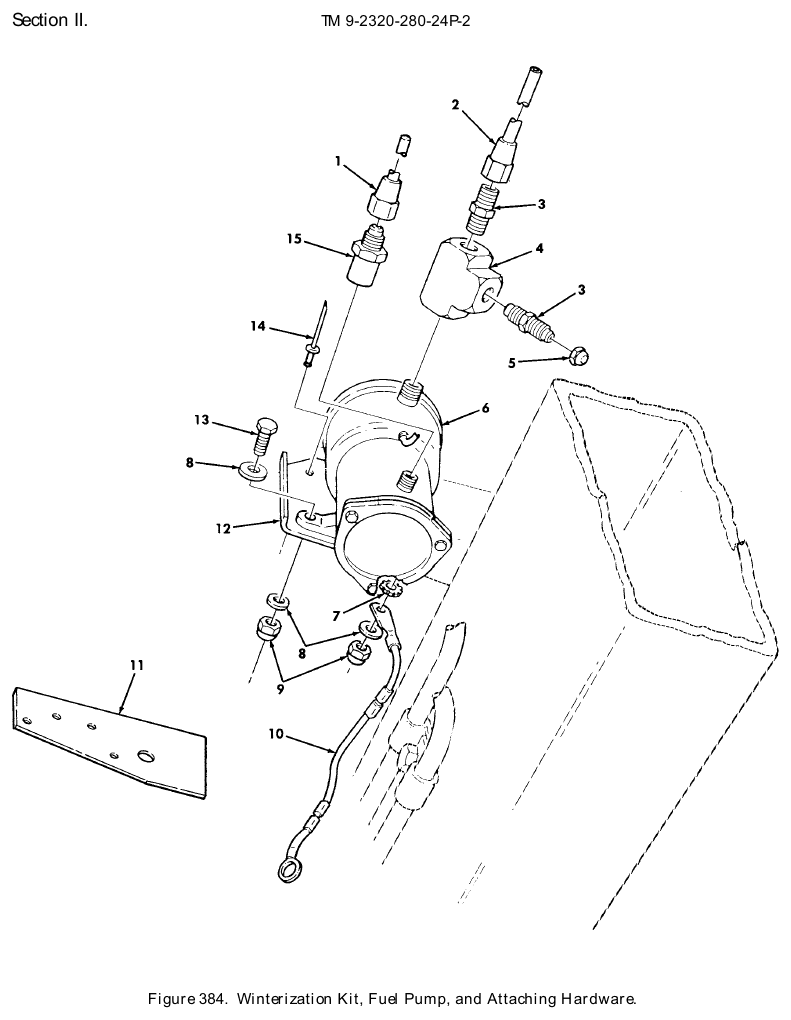

TM 9-2320-280-24P figure 384, Winterization Kit, Fuel Pump, and Attaching Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Metal Tube Assembly NSN 4710-01-203-0608 · P/N 5588696 TUBE ASSEMBLY,METAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
2	Metal Tube Assembly NSN 4710-01-317-1046 · P/N 12342277 TUBE ASSEMBLY,METAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $175.72 per eachgov't list price
3	Straight Pipe to Tube Adapter NSN 4730-00-529-1237 · P/N 191410 ADAPTER,STRAIGHT,PI PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	We can source it $1,585.93 per eachgov't list price
4	Printed Wiring Board NSN 5998-01-048-9739 · P/N 4-4-4 140438C TEE,PIPE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it quote only $500.24 per eachgov't list price
5	Tube Cap NSN 4730-00-260-8285 · P/N 5010112B(N5) CAP,TUBE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
6	Fuel Electrical Pump NSN 2910-00-930-9367 · P/N 2590174 PUMP,FUEL,ELECTRICA PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	98 in stock $329.81 per eachgov't list price
7	Lock Washer NSN 5310-00-550-1130 · P/N MS35338-40 WASHER,LOCK 1/4,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	2,548 in stock $6.85our price Buy online ↗
8	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	2,325 in stock
9	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	626 in stock
10	Electrical Lead NSN 6150-01-260-8000 · P/N 5595746 LEAD,ELECTRICAL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $30–$65 eachtypical
11	Fuel Pump Template NSN 2910-01-320-6645 · P/N 12340696 TEMPLATE,FUEL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $565.74 per eachgov't list price
12	Double Angle Bracket NSN 5340-01-204-3903 · P/N 12338559 BRACKET,DOUBLE ANGL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $30–$65 eachtypical
13	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X .75, PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	471 in stock
14	Blind Rivet NSN 5320-01-135-7319 · P/N CR-213-6-3 RIVET,BLIND .126-.187,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	72 in stock
15	Straight Pipe to Tube Adapter NSN 4730-00-277-6347 · P/N 5583386 ADAPTER,STRAIGHT,PI PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
